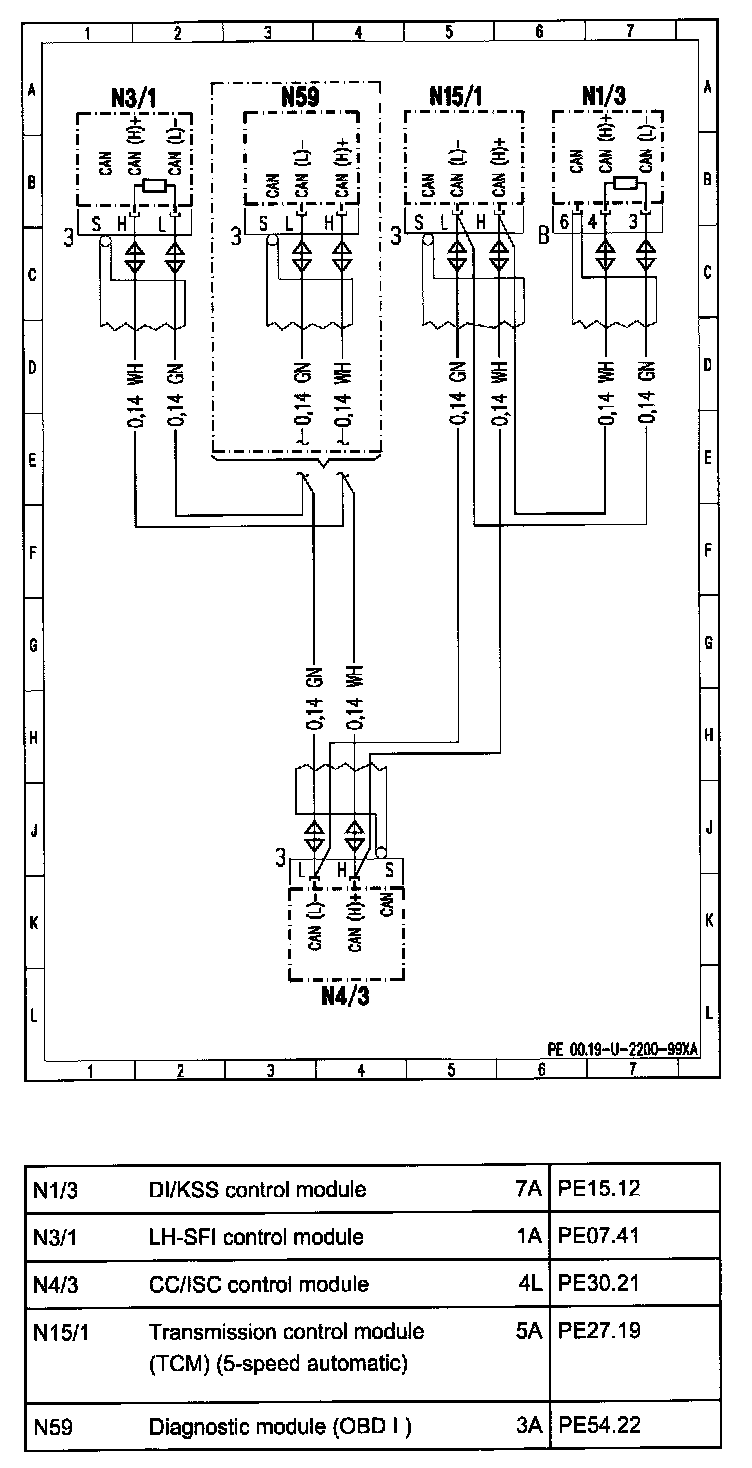

CAN Bus - Engine Compartment PE00.19-U-2200XA
CAN Bus - Engine Compartment PE00.19-U-2200XA
PE00.19-U-2200XA - Engine 104 With AT 5:
