LH Jetronic Fuel System

Electronic Accelerator Test Tools:

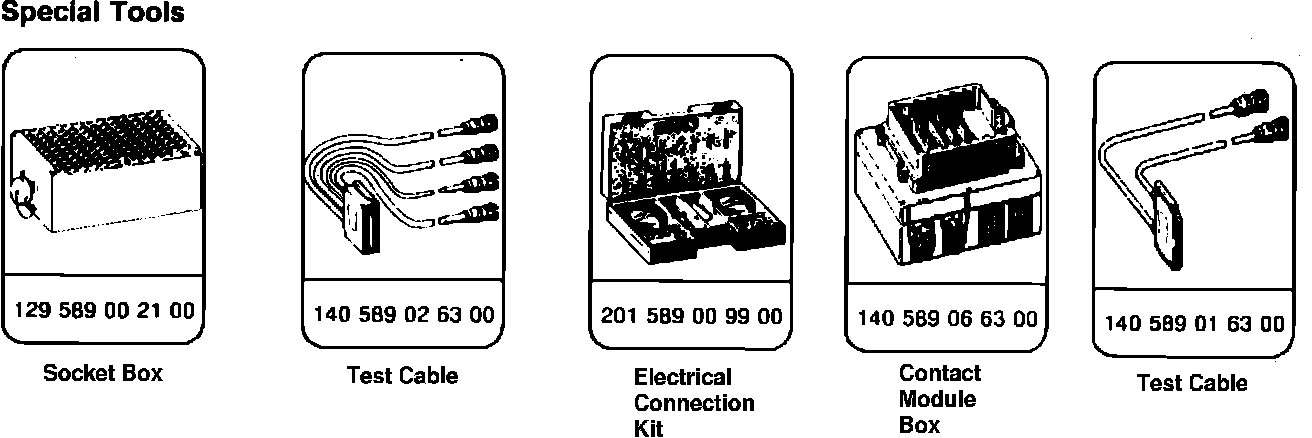

SPECIAL TOOLS


CAUTION: Disconnect the Electronic Accelerator control unit with the ignition turned OFF.
Connect socket box with contact module and contact box. Refer to "DIAGNOSIS
SELF TEST"

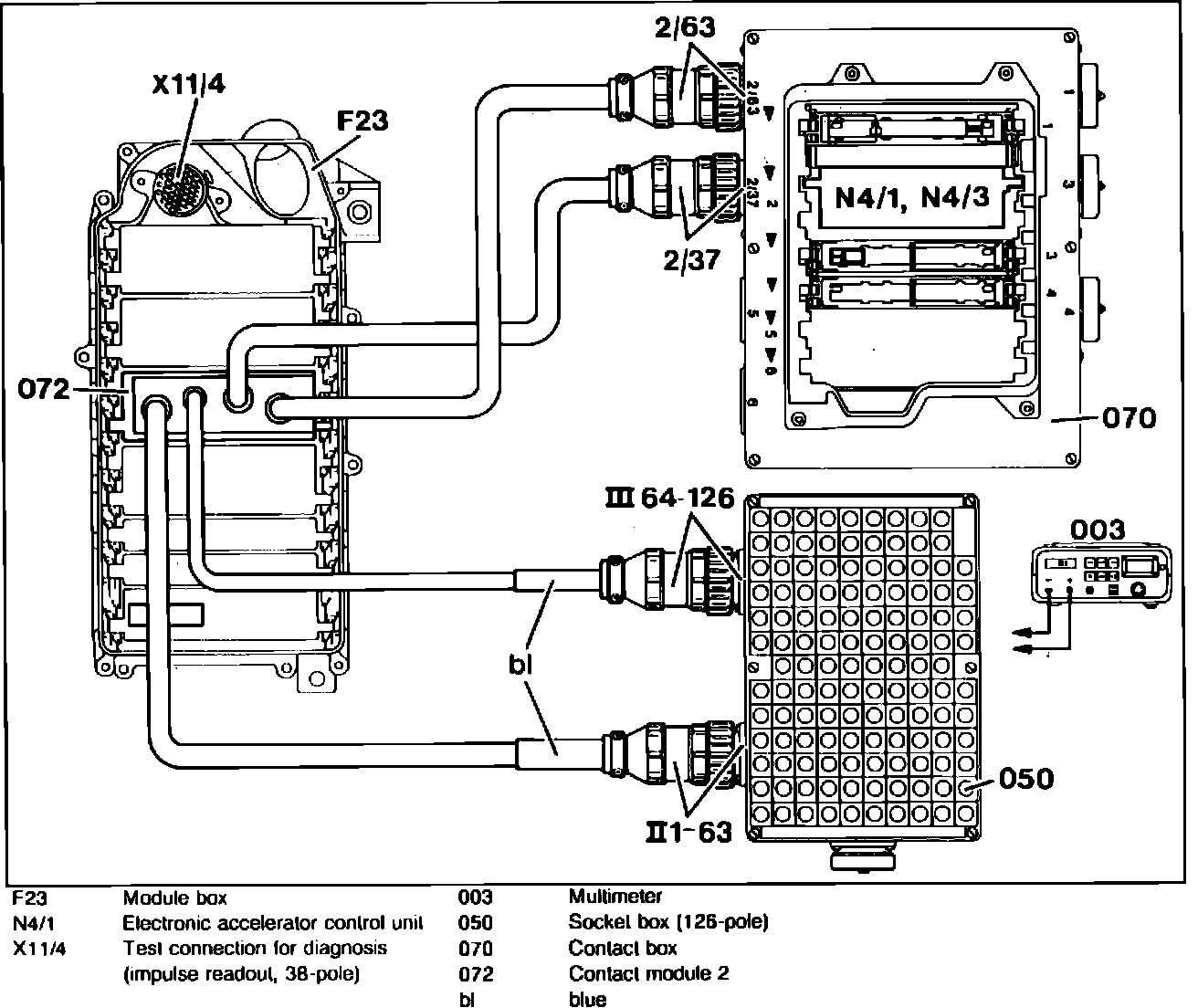

Socket Box Connection Diagram:

CONNECTING TEST EQUIPMENT - 300SE
