CIS-E Fuel System

Required Test Equipment - Electronic Accelerator System Test:

SPECIAL TOOLS


NOTE: Unplug the 5-speed automatic transmission control in order to connect test cable.

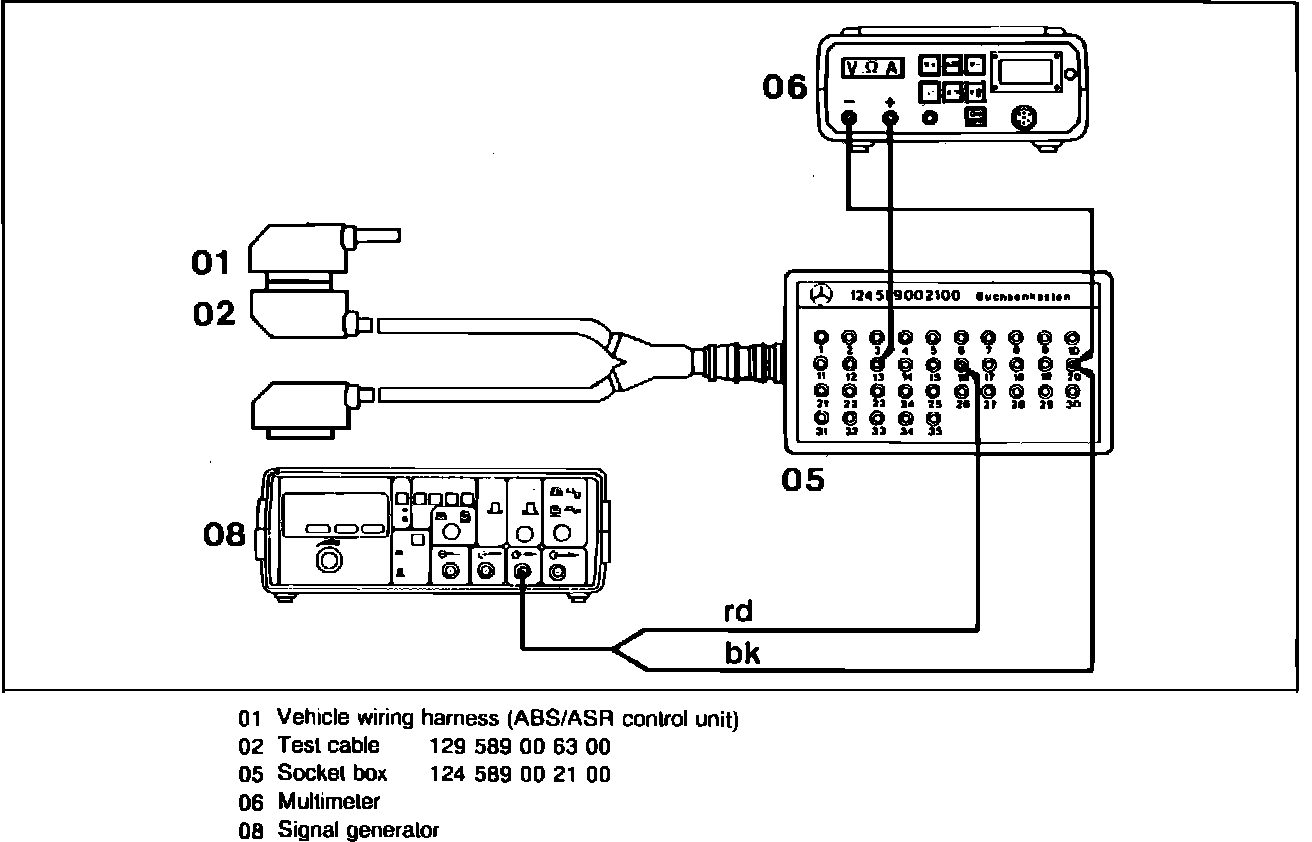

Connection Of Multimeter And Signal Generator For Input Test (Electronic Accelerator/ASR Recognition Test):

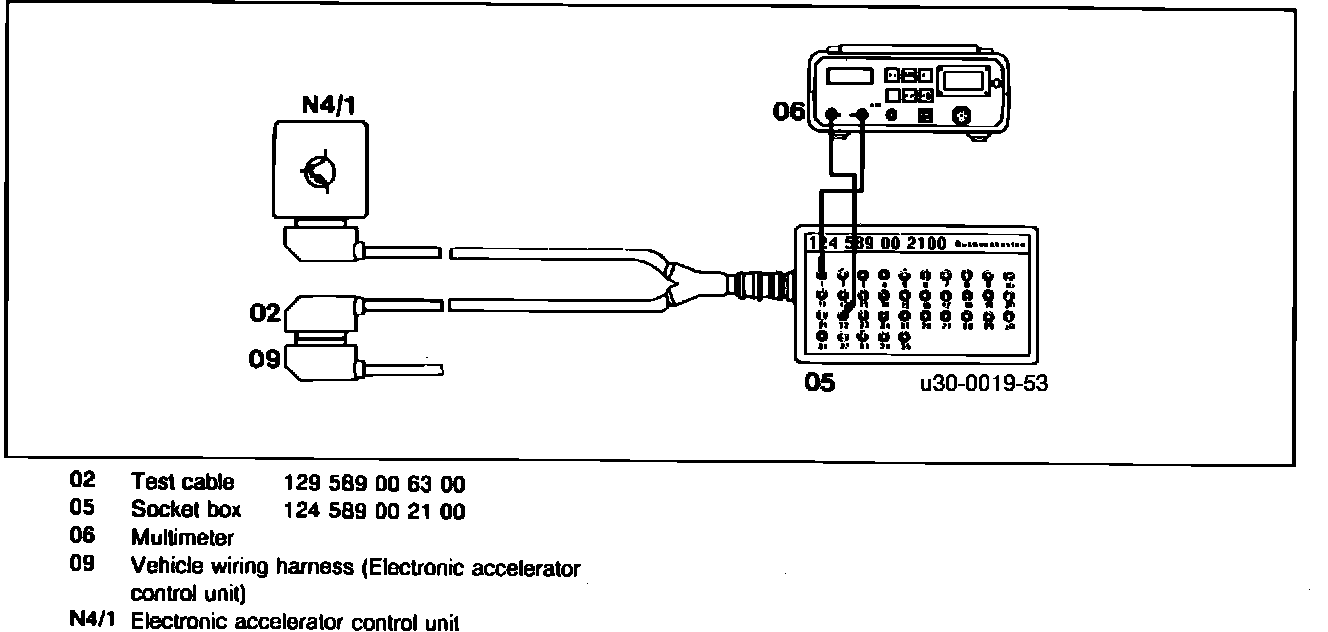

Connection Diagram With Multimeter For Electronic Accelerator Test Program:

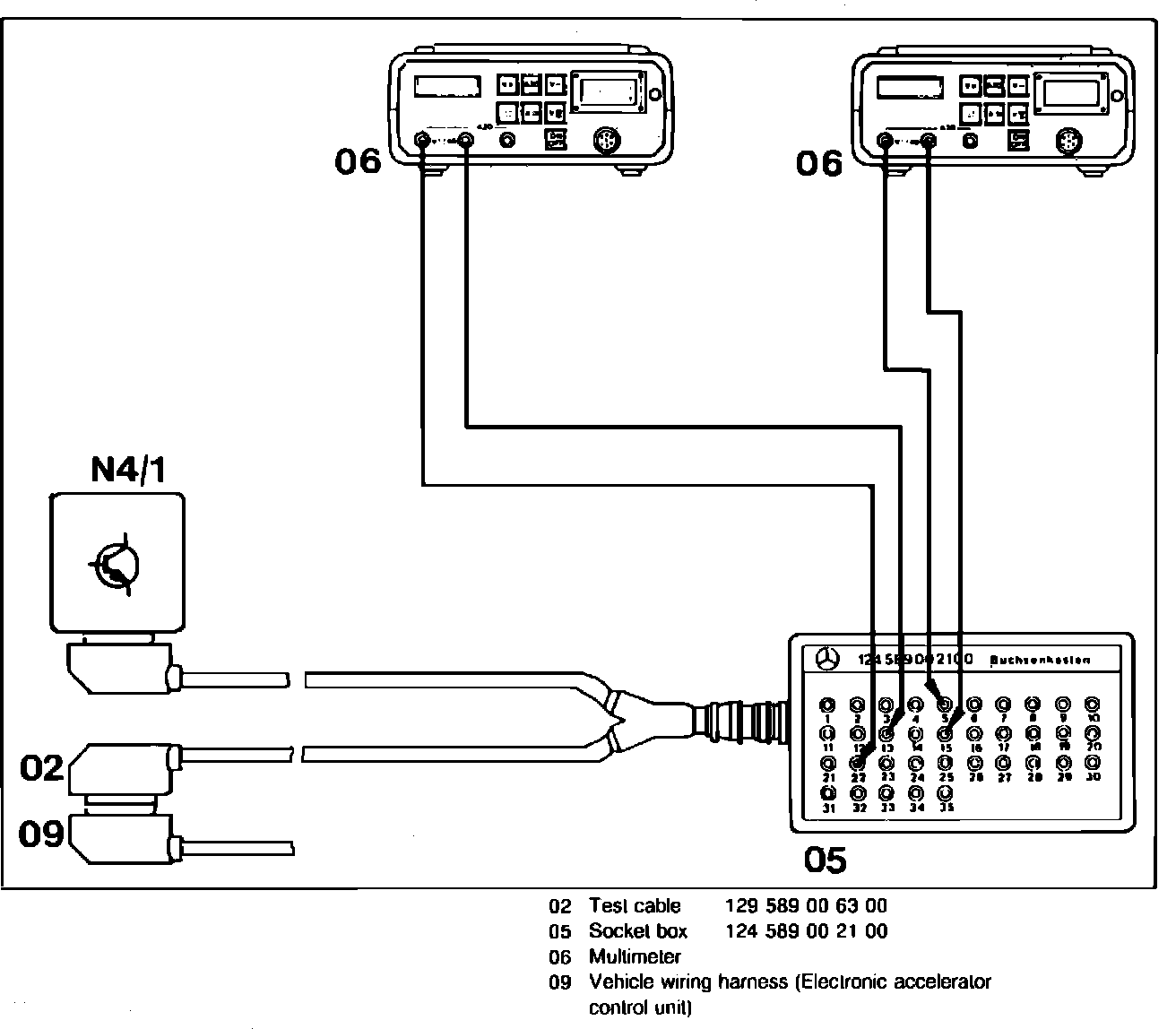

Connection Diagram With 2 Multimeters For Electronic Accelerator Test Program:

CONNECTING TEST EQUIPMENT
