C. Model 140 Coupe

1. Remove trunk mat, left trunk panel and taillamp assembly.

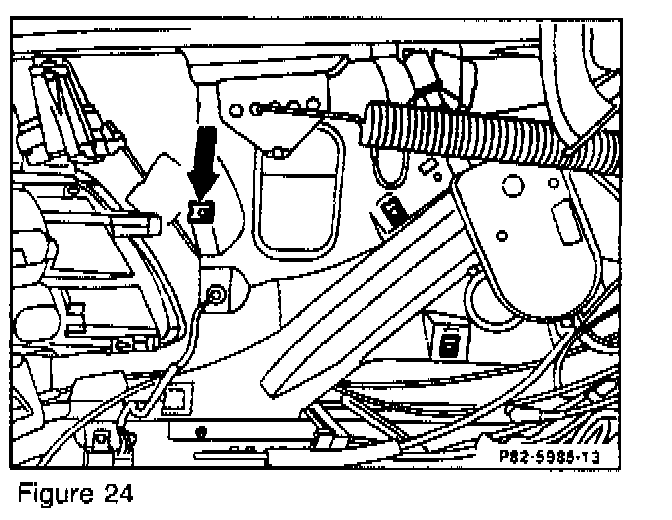

2. Install three speed clips as shown in Figure 24. The larger speed clip (arrow) must be installed on the back-side of the wall (due to the thickness of the lip) and act as a nut.

3. Attach transmitter - receiver to bracket with four screws.

4. Disconnect the radio antenna lead from antenna splitter. Check for continuity from the antenna mast tube to vehicle chassis with an Ohm meter. If the nominal value is [greater than] 0.3 Ohm, loosen the lower antenna mounting screw and then tighten the mast tube nut until value is [less than or equal to] 0.3 Ohm. Tighten lower mounting screw. Reconnect radio antenna lead to splitter.

Note:
Failure to perform this step will lead to poor telephone performance and/or interference to other vehicle electronic systems.

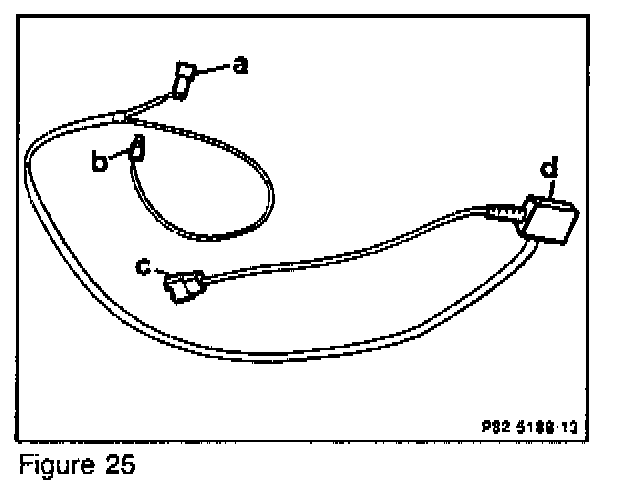

5. Connect adapter harness as follows:

a. female speaker connector to male speaker connector near white 4-pole transmitter - receiver power connector
b. 1-pole male antenna control connector to antenna (behind 4-pole antenna connector)
c. transmitter - receiver data connector to transmitter - receiver
d. adapter harness connector to vehicle transmitter - receiver data harness





6. Connect one end of the antenna lead cable to the transmitter - receiver, the other end to the "Telefon" connection on the splitter box.

7. Connect white 4-pole power connector (power supply) to transmitter - receiver.

8. Secure harness and cables as necessary with cable ties.

9. Reinstall left wheel well liner and taillamp assembly.

10. Install 7.5 A fuse in auxiliary fuse box (behind panel in right trunk liner).

11. Reconnect negative battery terminal.

12. Program telephone.

13. Recode radio.

14. Resynchronize windows.

15. Test function.
