Installing Handset In Cellular Armrest

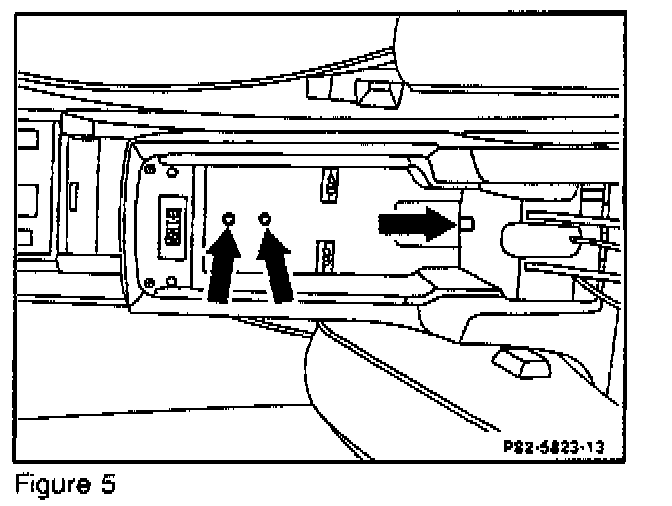

1. Open armrest and remove plug from rear of compartment. Carefully drill Out the two forward recesses using care not to drill into the threaded inserts (arrows, Fig. 5).

2. Place cradle over two forward holes and secure with screws (do not over tighten).

3. Connect 8 pin handset cord to fixed connector in rear opening.

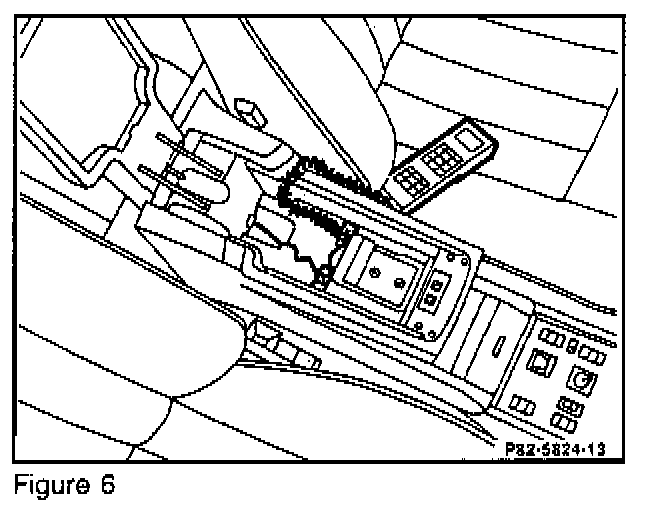

4. Secure handset cord to the two clips located just behind the cradle (Fig. 6).

Note:
Secure handset cord to clips as close as possible to connector.





Ensure that the armrest top will close freely and that the handset cord does not interfere.
