Mercedes Benz
>>
1992
>>
300E 4MATIC (124.230) L6-3.0L (103.985)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
>>
All-Wheel Drive (4-Matic)
All-Wheel Drive (4-Matic)

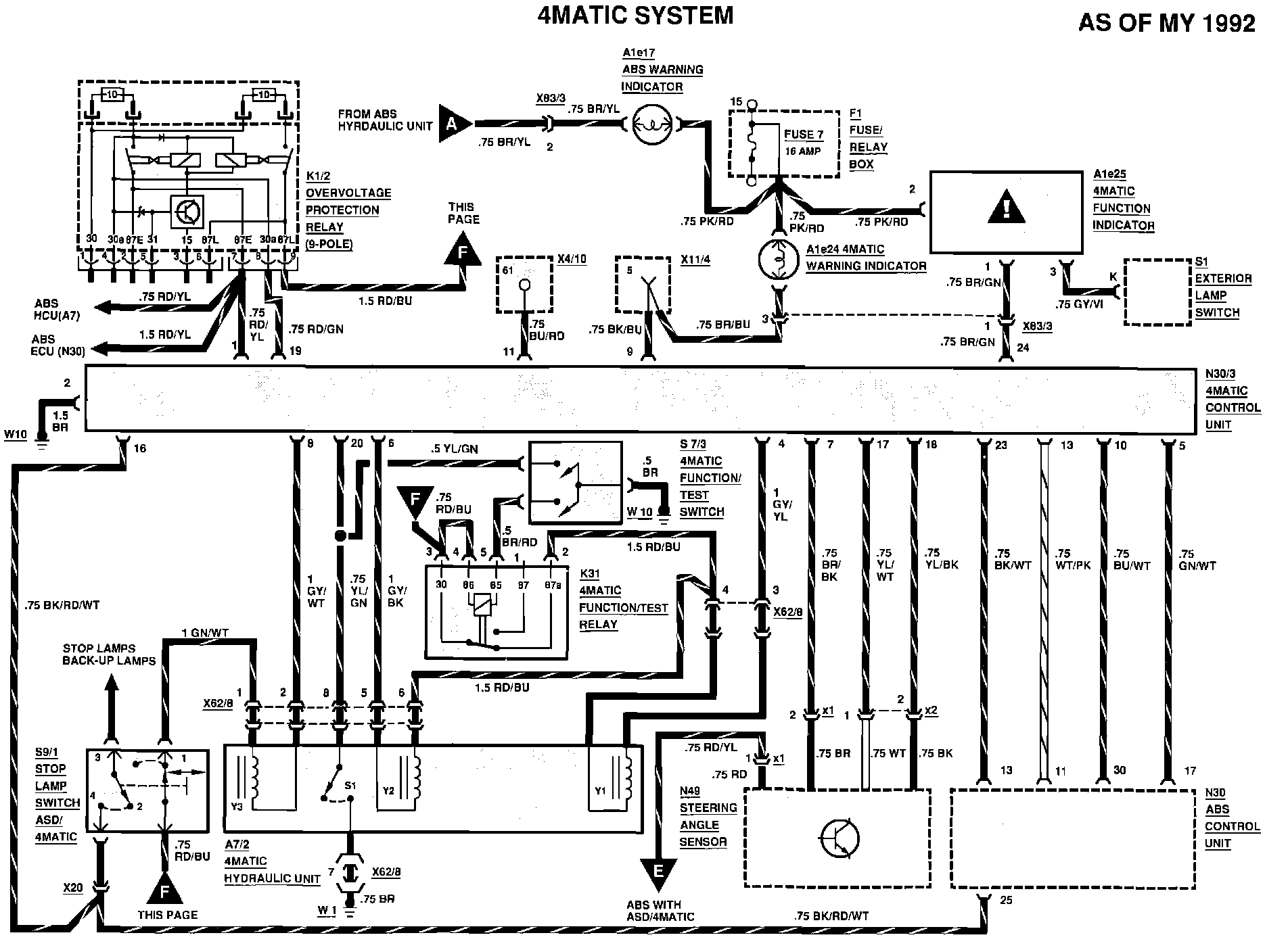

4Matic System (All Wheel Drive):
