Home
>>
Mercedes Benz
>>
1992
>>
300E (124.030) L6-3.0L (103.983)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Idle/Throttle Speed Control Unit
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

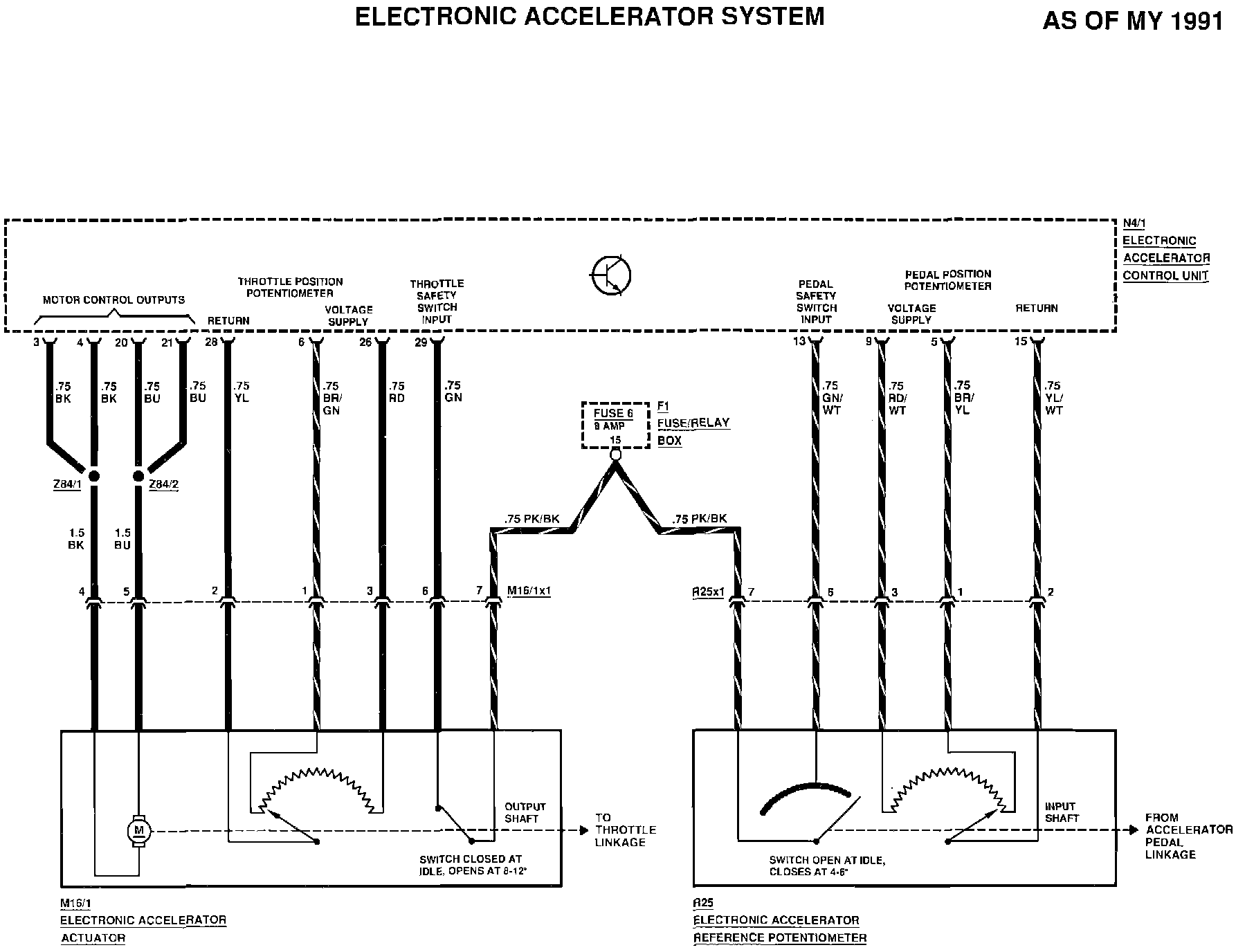

Electronic Accelerator System:
Electronic Accelerator/Cruise Control System:
