Home
>>
Mercedes Benz
>>
1992
>>
300D (124.128) L5-2.5L DSL Turbo (602.962)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Preglow System
Preglow System

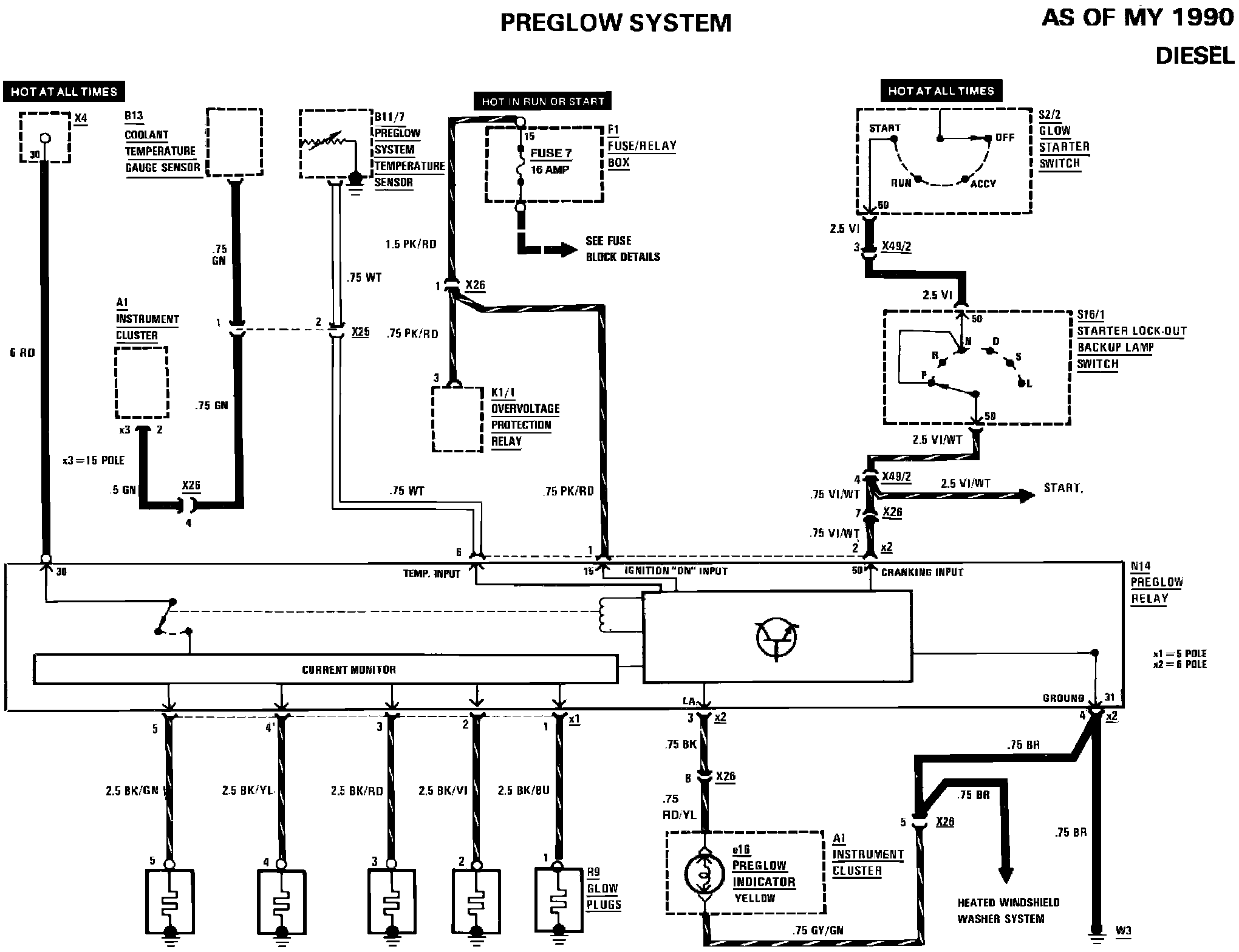

Preglow System:
