Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1991
>>
560SEC (126.045) V8-5.6L (117.968)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

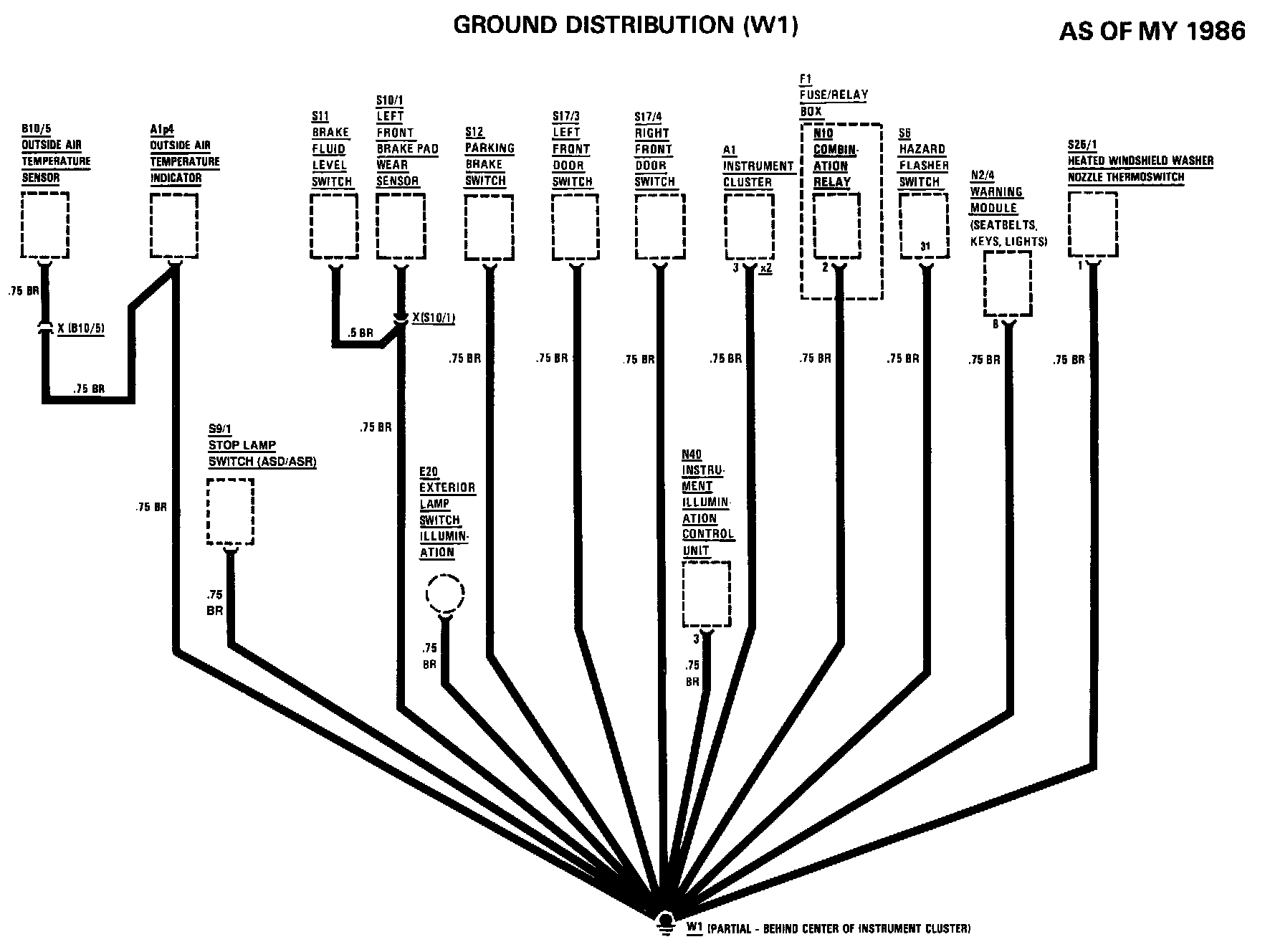

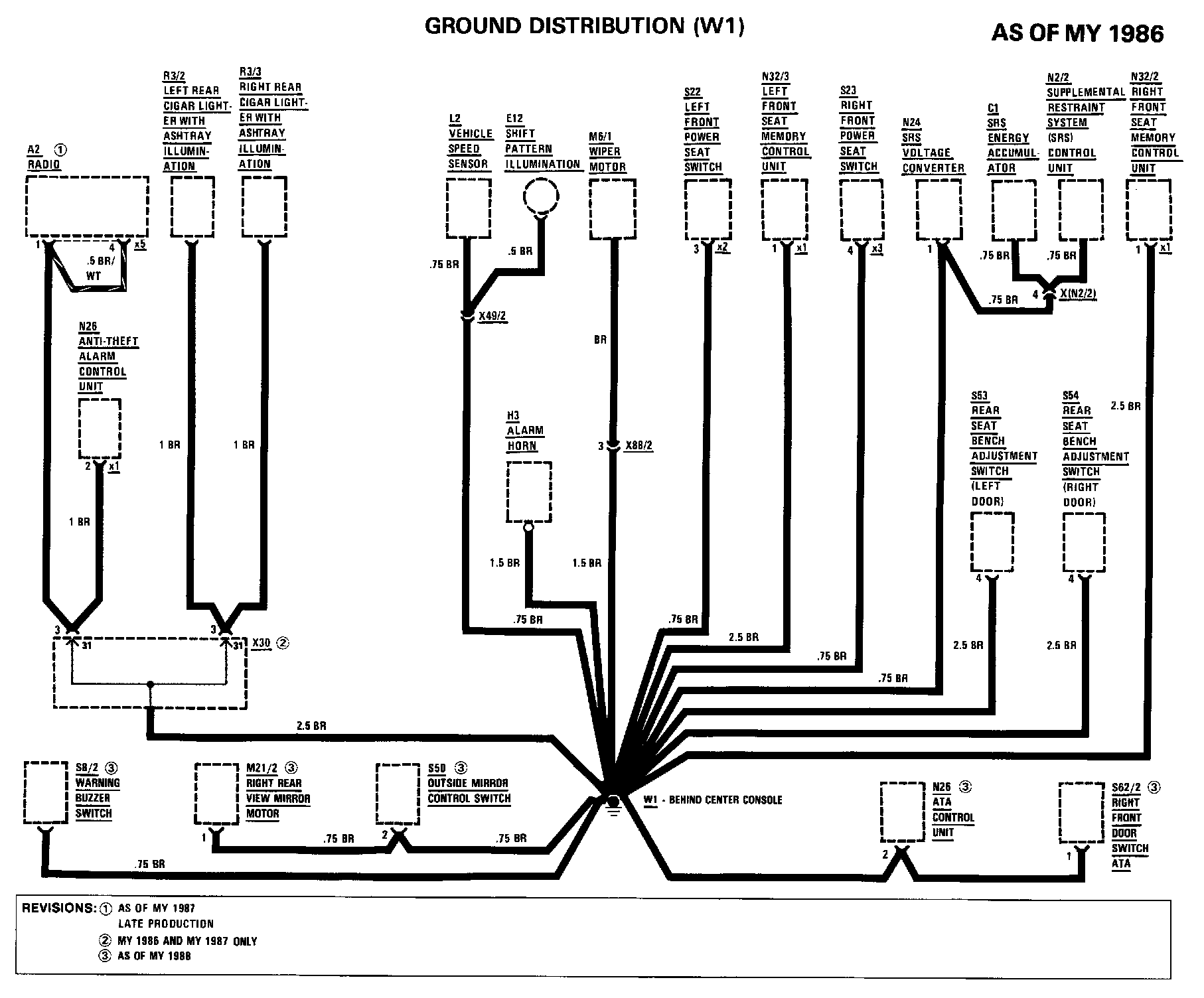

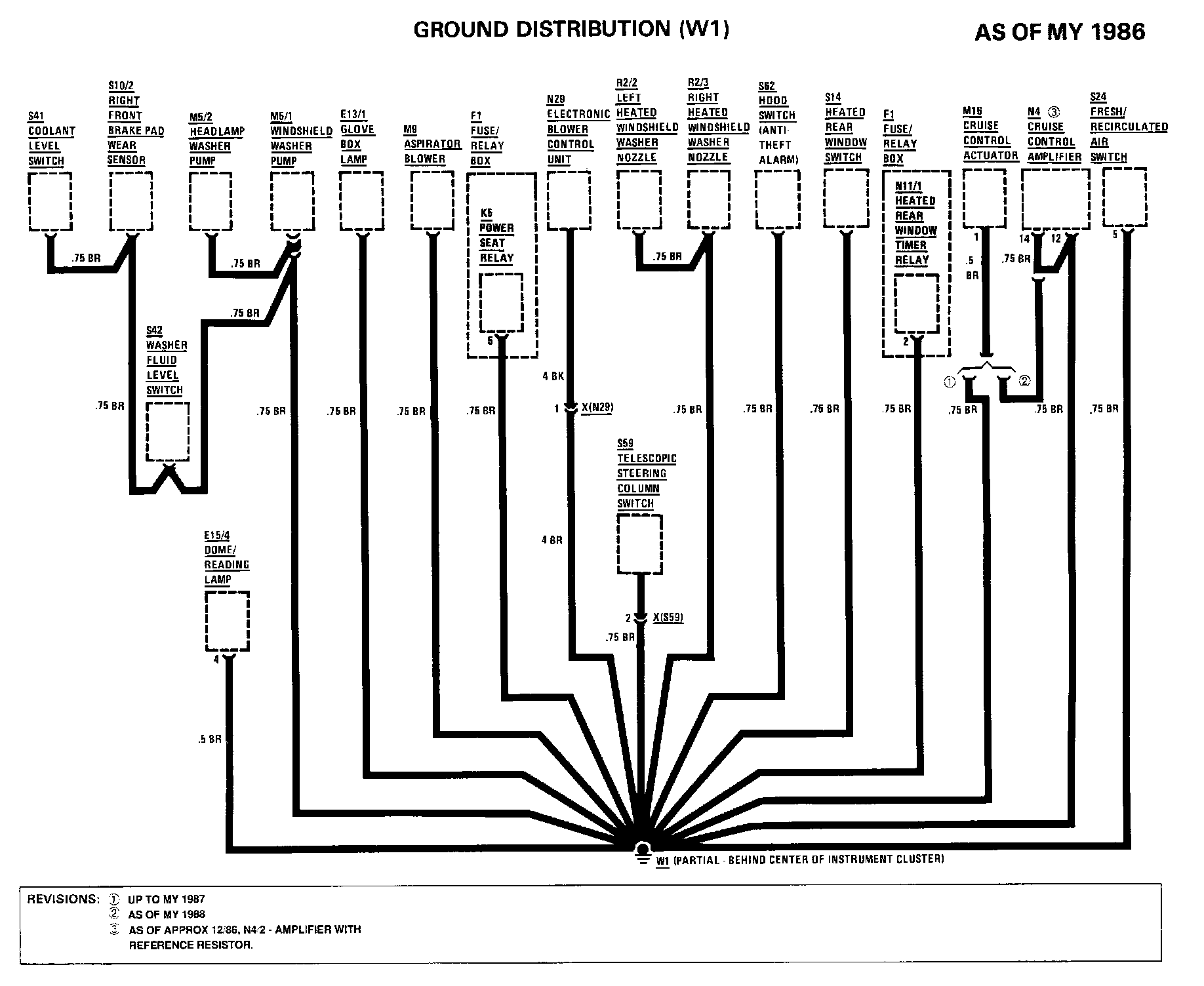

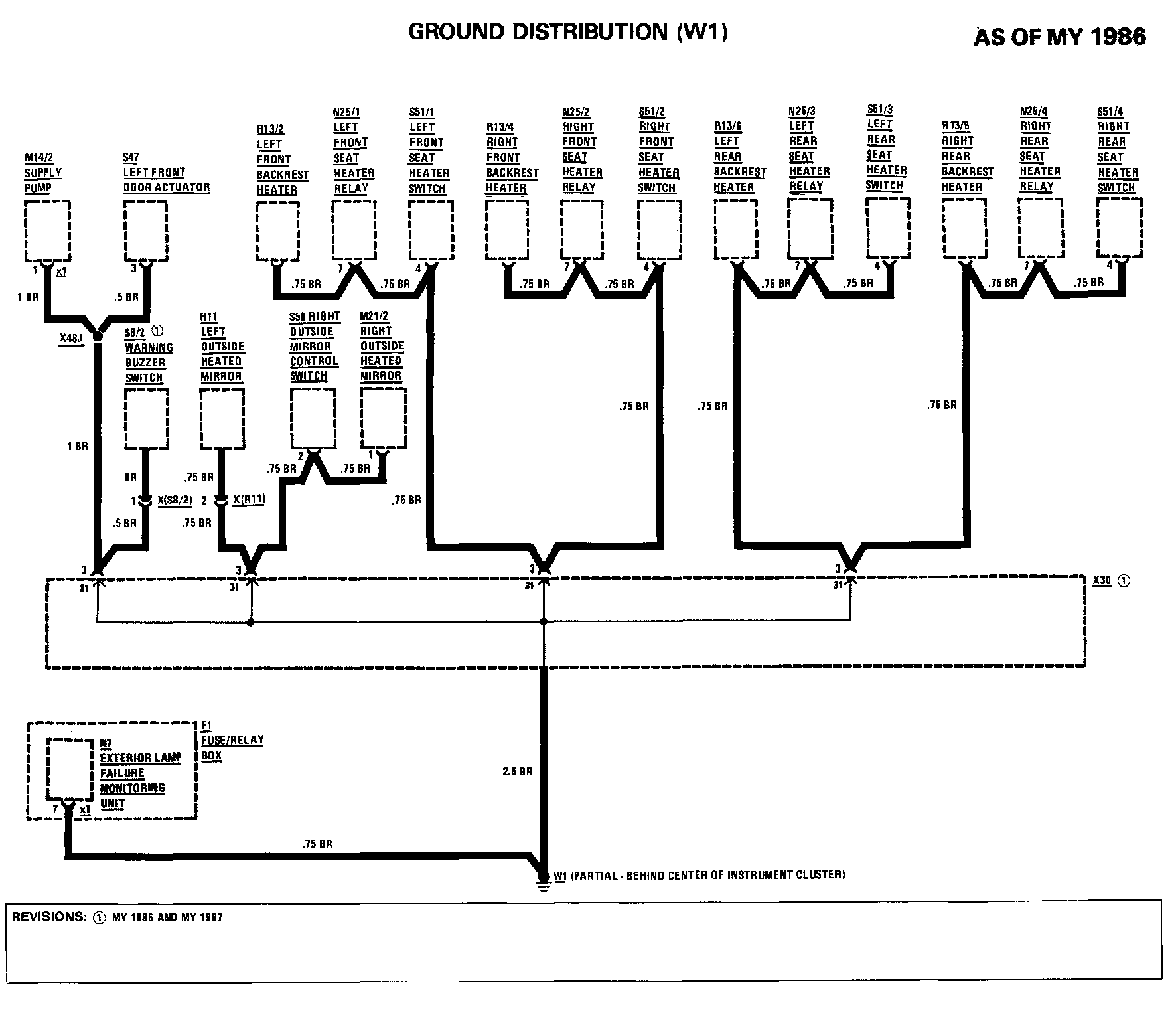

Ground Distribution
>>
(W1)
(W1)
