EGR Valve: Locations

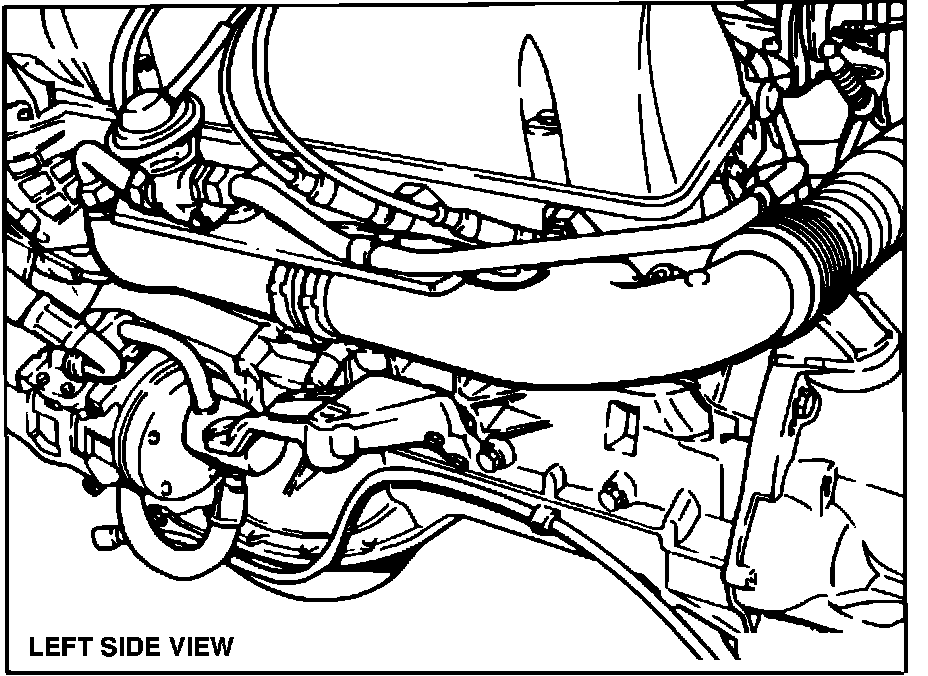

Fig. 23 EGR Valve Location:

The EGR Valve is located on the left hand exhaust manifold.

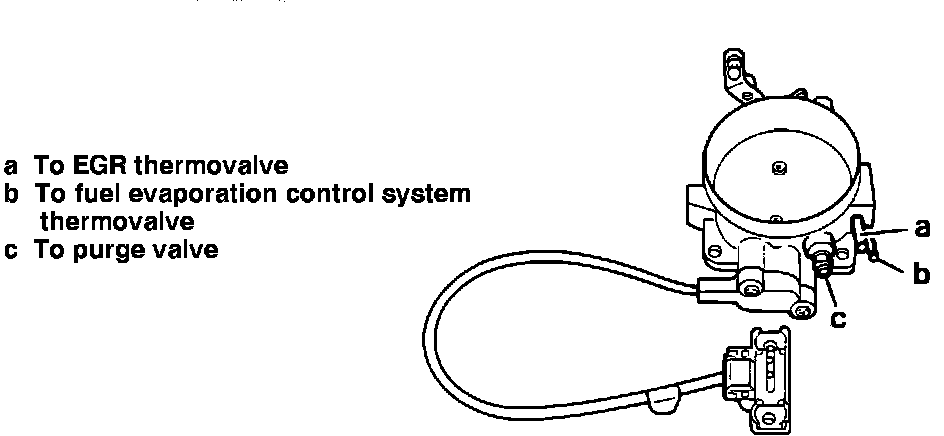

Fig. 46 Vacuum Port Location:

The EGR vacuum source is located on the throttle valve.

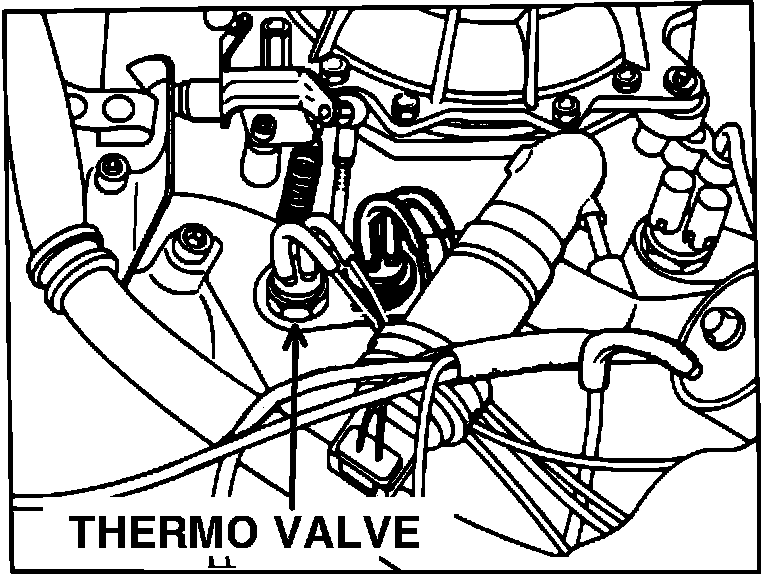

Fig. 63 50C Thermovalve:

The 50°C thermovalve is located on the intake manifold near the throttle valve.
