Air Injection Pump Clutch: Service and Repair

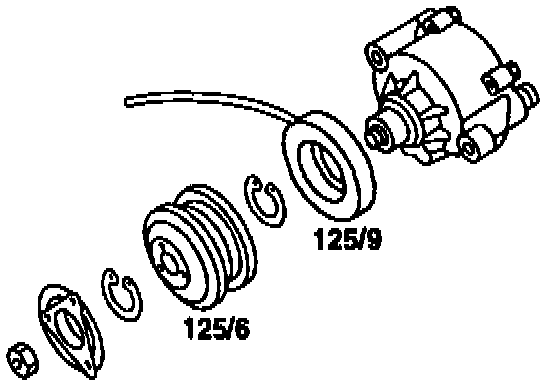

Air pump (125)
Remove, reinstall. Service and Repair

Parts as shown in figure
Dismantle and reassemble. Secure hex. nut with 35 ± 5 Nm..
