Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1991
>>
560SEC (126.045) V8-5.6L (117.968)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Diagnostic Test Procedures
>>
Automatic Air Conditioning (Auto A/C)
>>
Function Test of Total System and Remedies (with adaptor)
>>

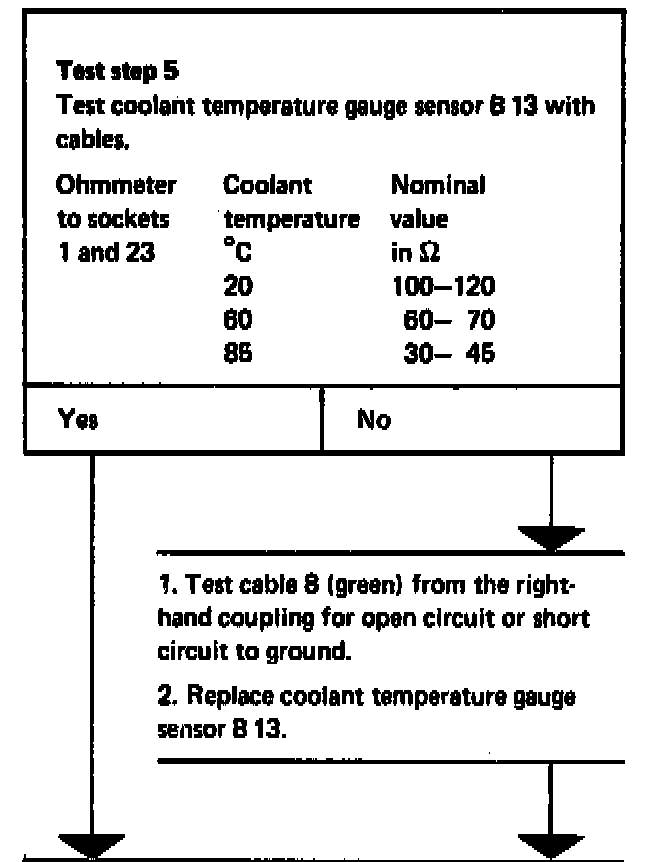

Test Step 5
Test Step 5
Test step 5

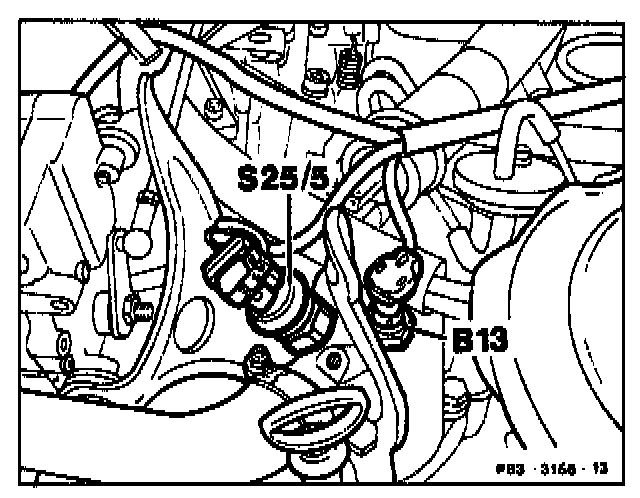

B 13 Temperature sensor in 6-cylinder engines

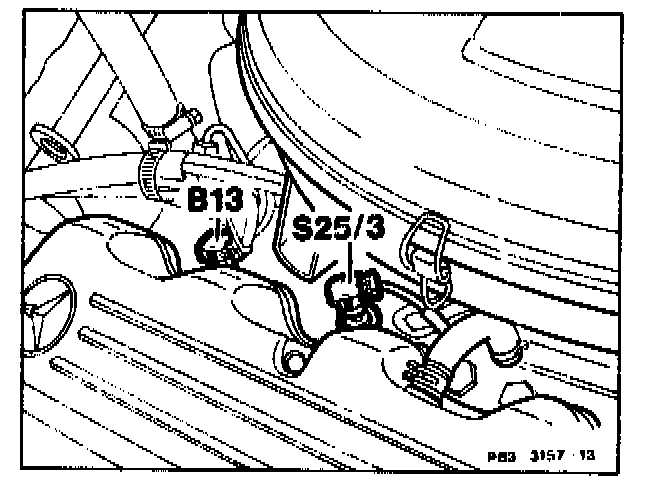

B 13 Temperature sensor in 8-cylinder engines
