Home
>>
Mercedes Benz
>>
1991
>>
560SEC (126.045) V8-5.6L (117.968)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Power Seats
>>

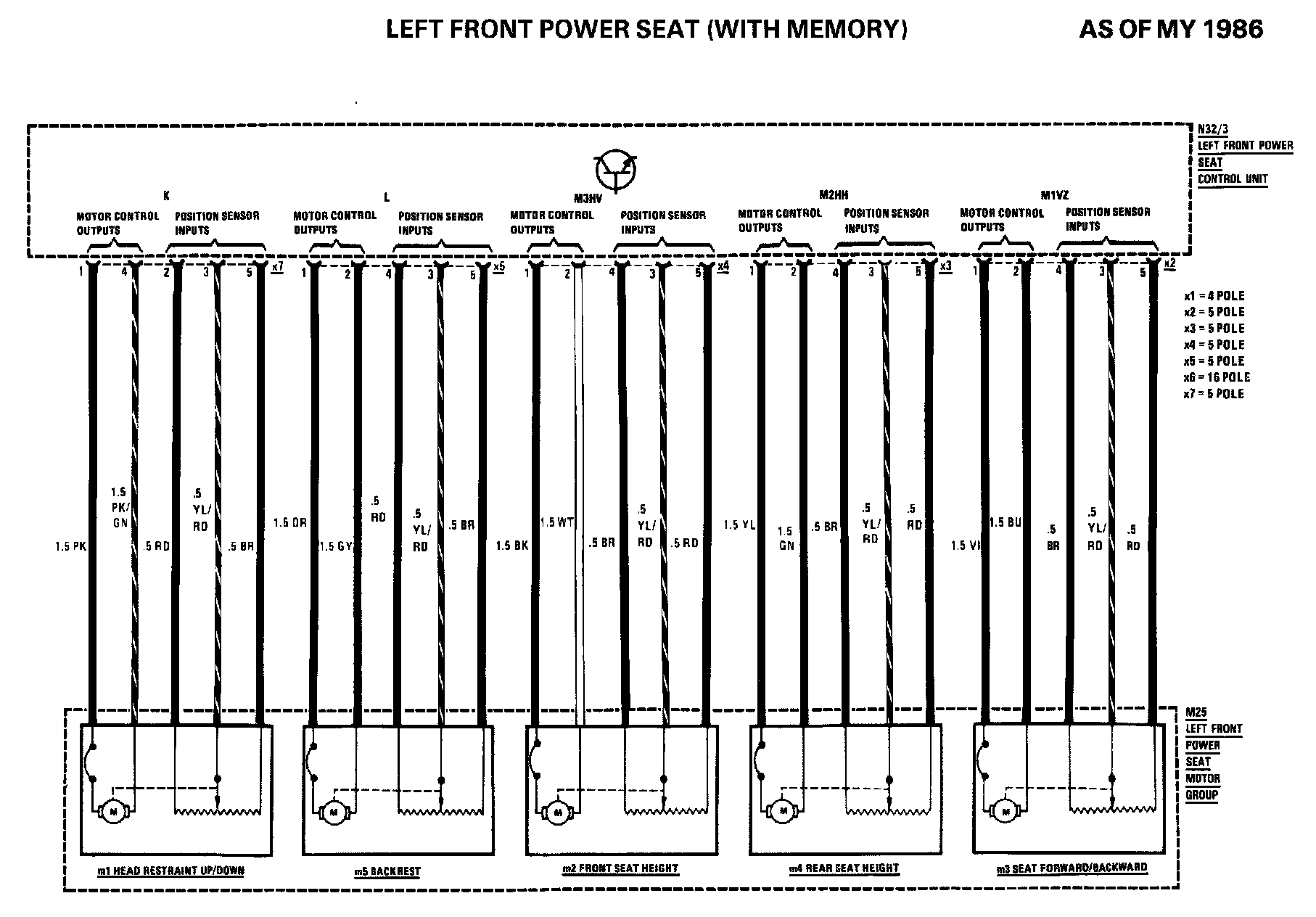

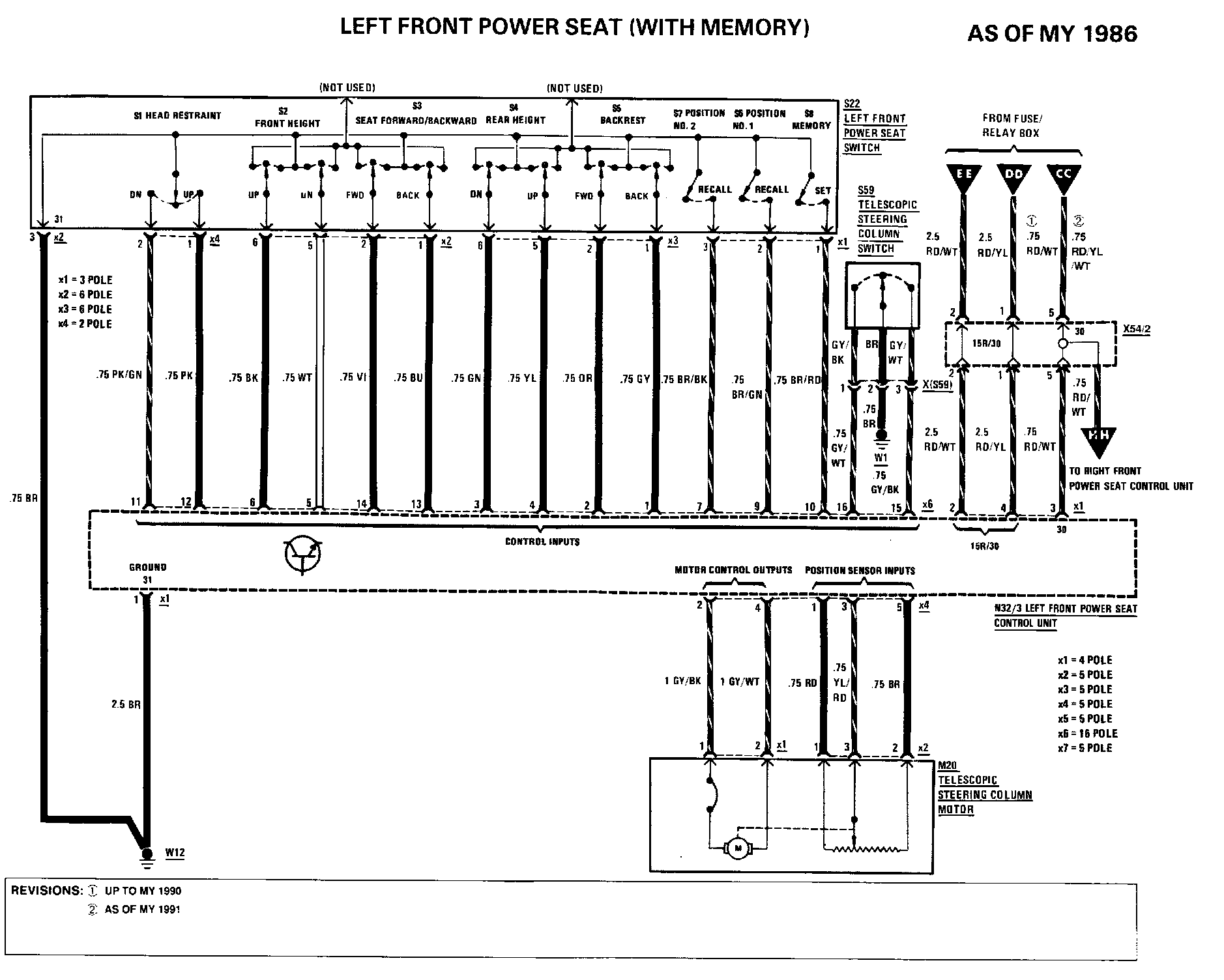

Left Front (With Memory)
Left Front (With Memory)
