Anti-Lock Brake System/Acceleration Slip Control (ABS/ASR)
Anti-Lock Brake System/Acceleration Slip Control (ABS/ASR)

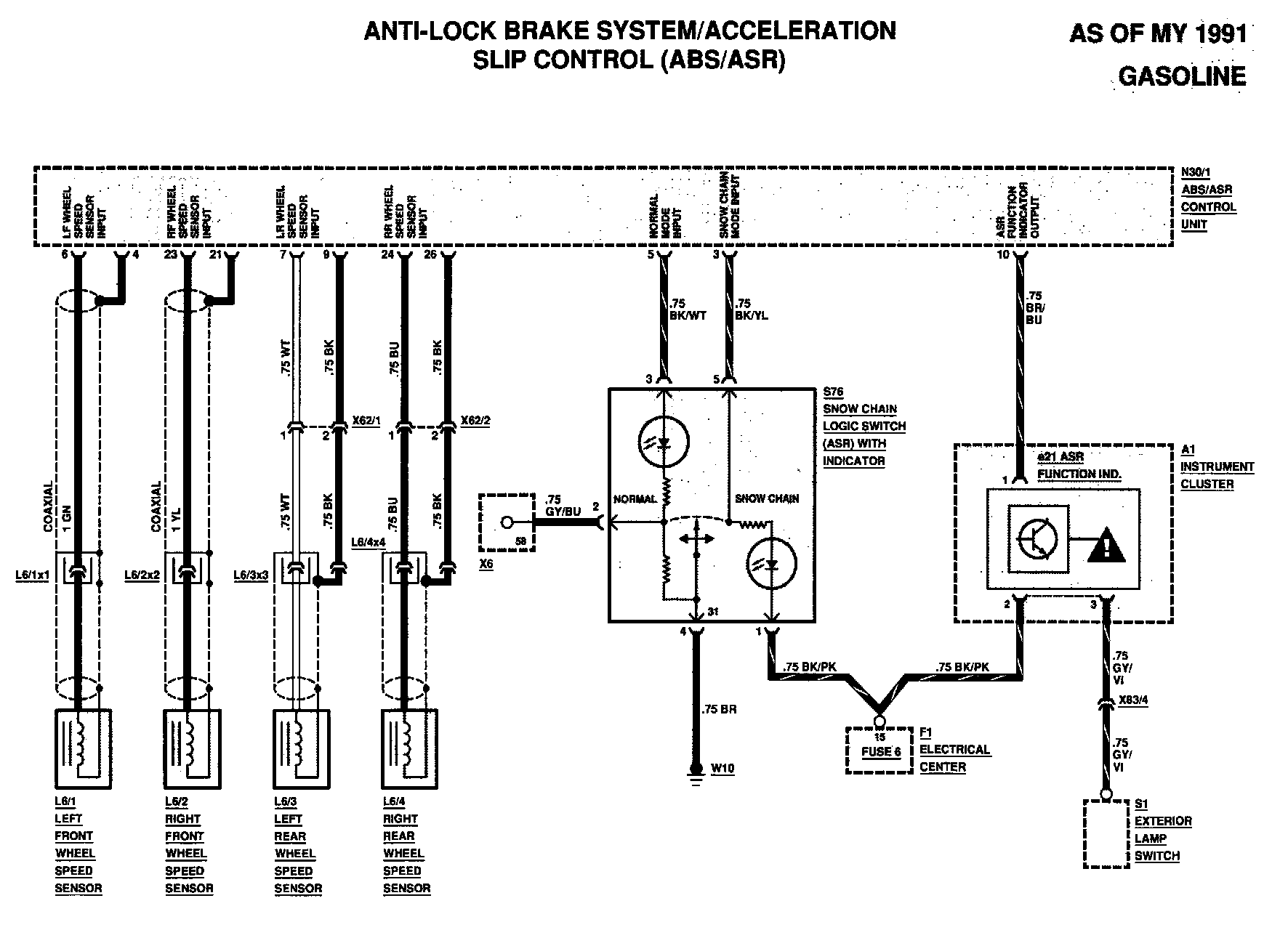

Anti-Lock Brake System/Acceleration Slip Control (ABS/ASR):

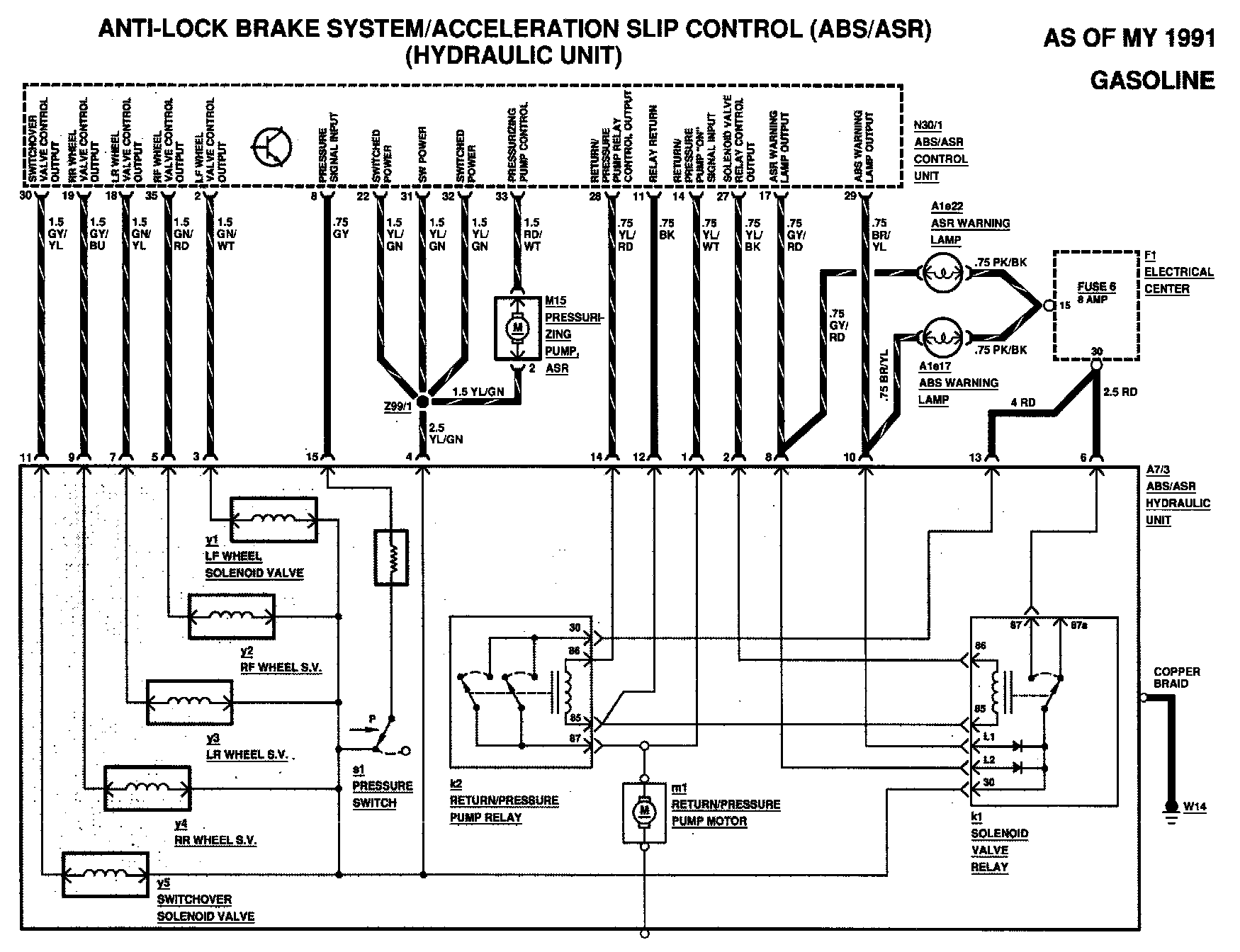

Anti-Lock Brake System/Acceleration Slip Control (ABS/ASR) (Hydraulic Unit):
