Mercedes Benz
>>
1991
>>
350SDL (126.135) L6-3.5L DSL Turbo (603.970)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Differential Assembly
Differential Assembly

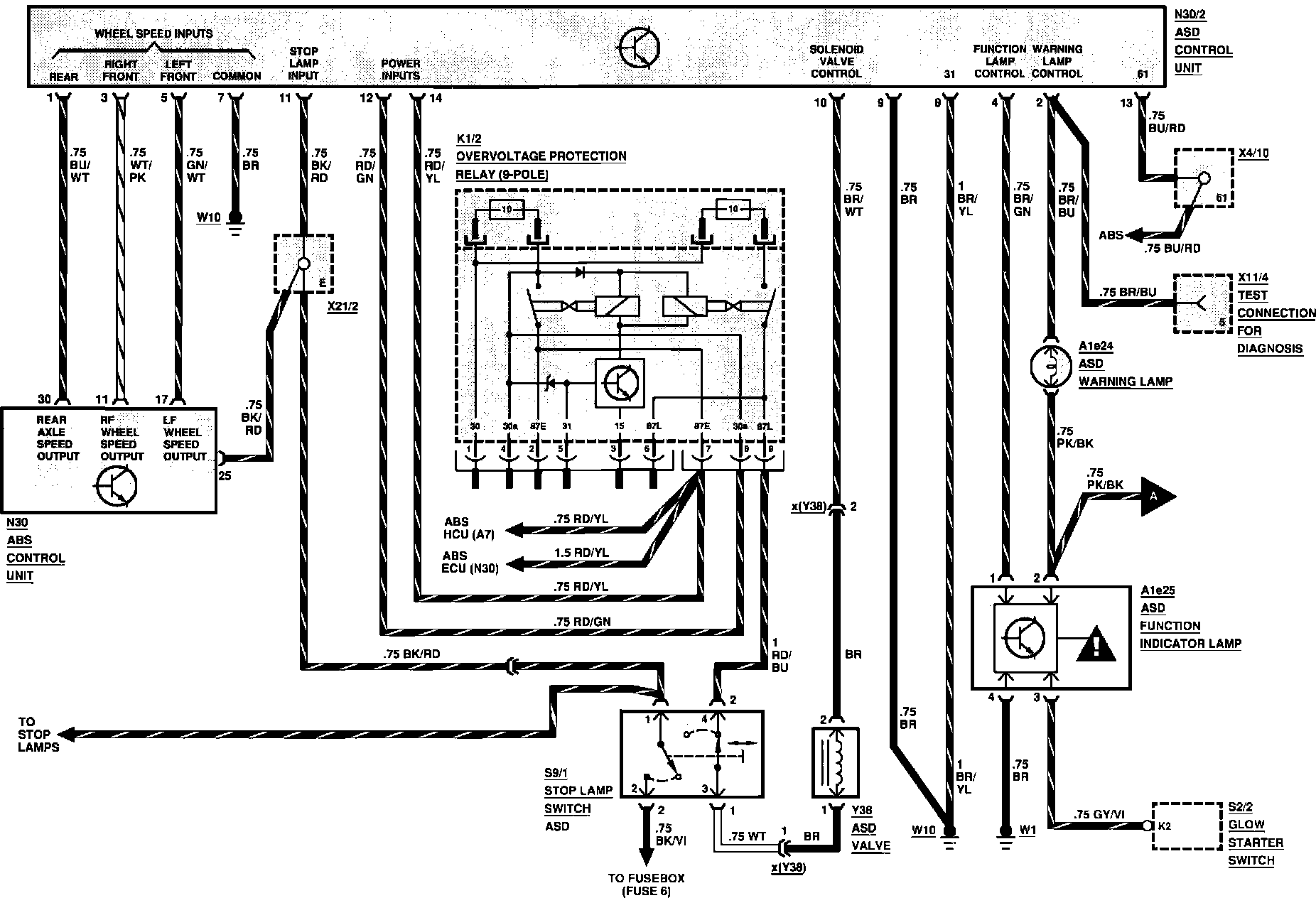

Automatic Locking Differential (ASD):
