Canister Purge Control Valve: Locations

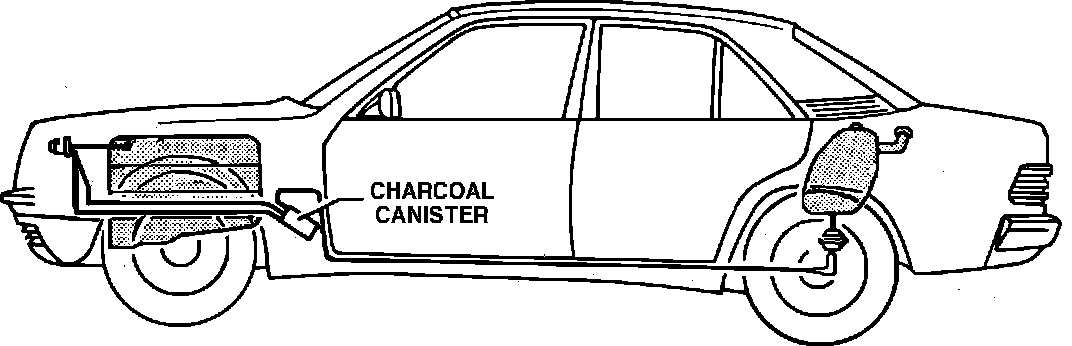

Fig. 117 Charcoal Canister Location:

The Charcoal Canister is located behind the left front wheel housing (removal of the plastic access cover is necessary).

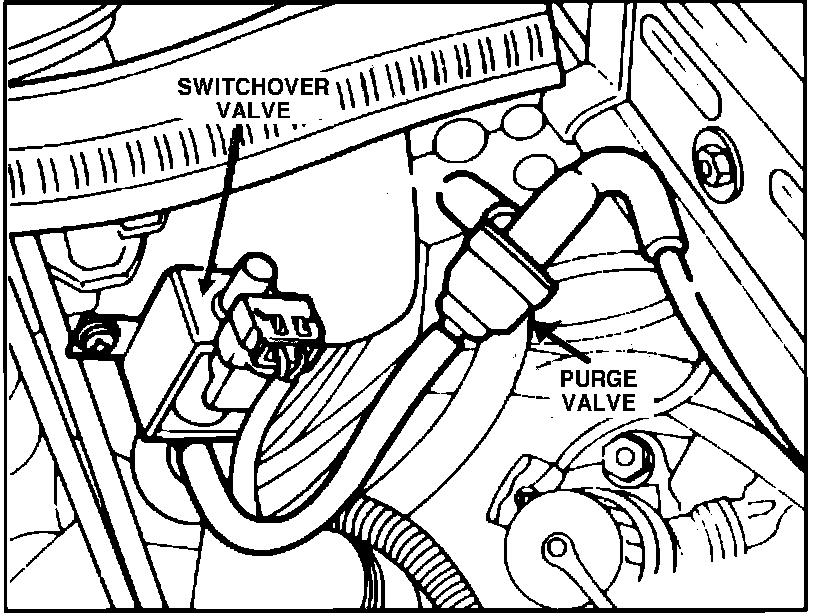

Fig. 110 Purge And Switchover Valve Locations:

The purge valve and the switchover valve are located on the left side of the firewall.

Fig. 60 Breather Valve Location:

The breather valve is located at the rear of the car near the fuel tank.
