Anti-Lock Brakes (With ASR/Electronic Acceleration System)
Anti-Lock Brakes (With ASR/Electronic Acceleration System)

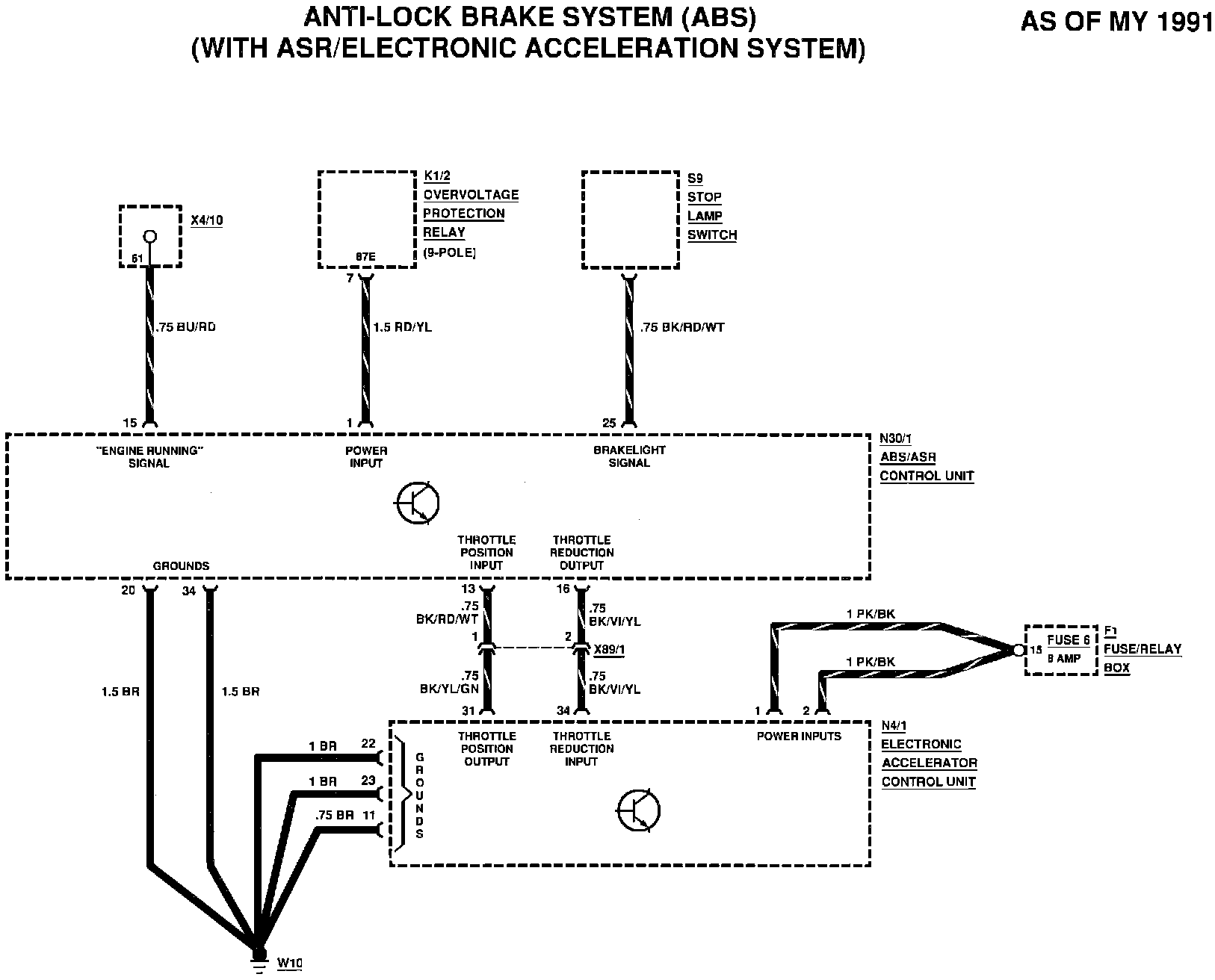

Anti-Lock Brake System (ABS) W/ ASR/Electronic Accelerator System:
