Mercedes Benz
>>
1991
>>
190E 2.6 (201.029) L6-2.6L (103.942)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic Engine Control/Upshift Relay/Overvoltage Relay
Electronic Engine Control/Upshift Relay/Overvoltage Relay

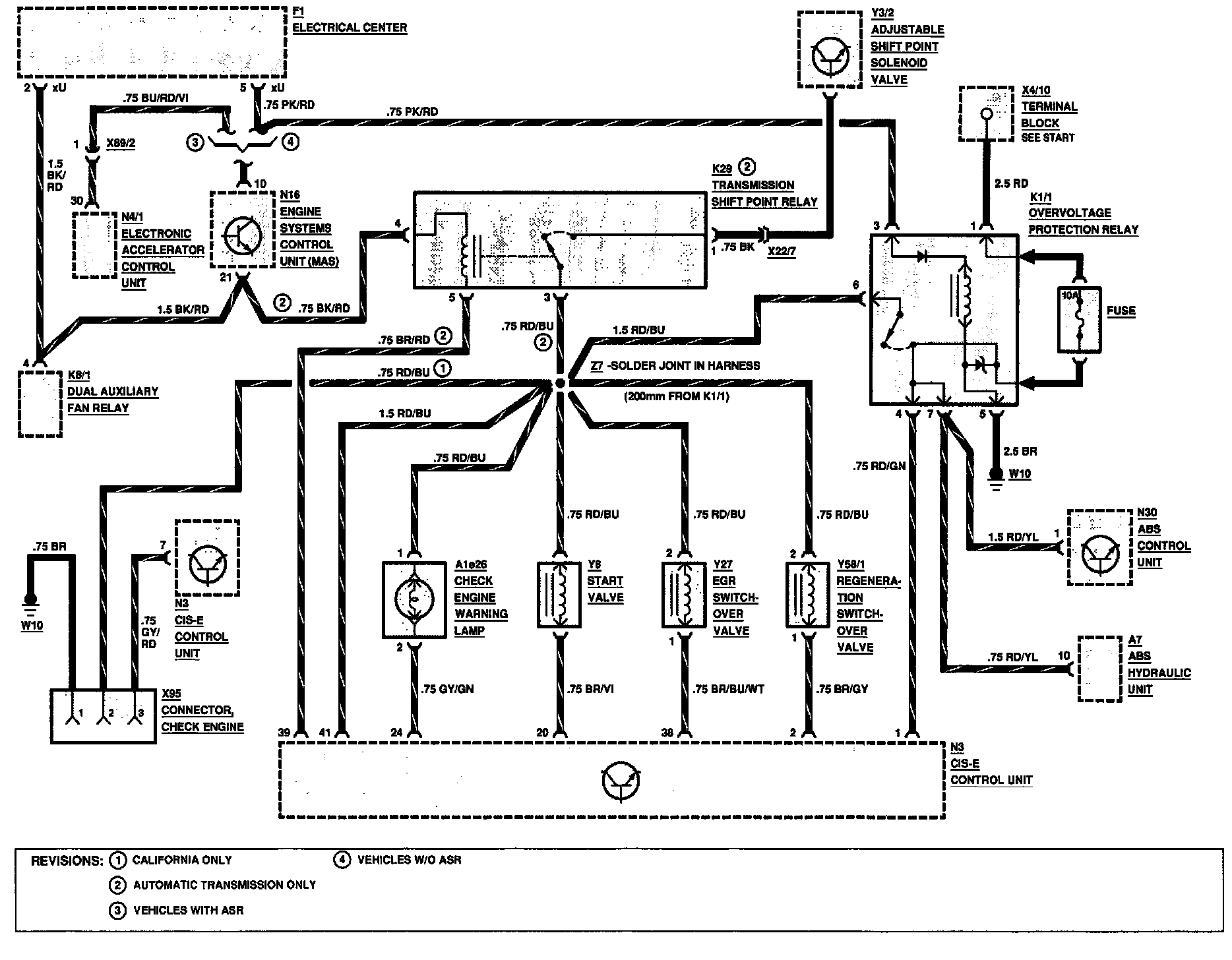

Electronic Engine Control/Upshift Relay/Overvoltage Relay:
