Mercedes Benz
>>
1990
>>
300SE (126.024) L6-3.0L (103.981)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Injection
>>
Federal
Federal

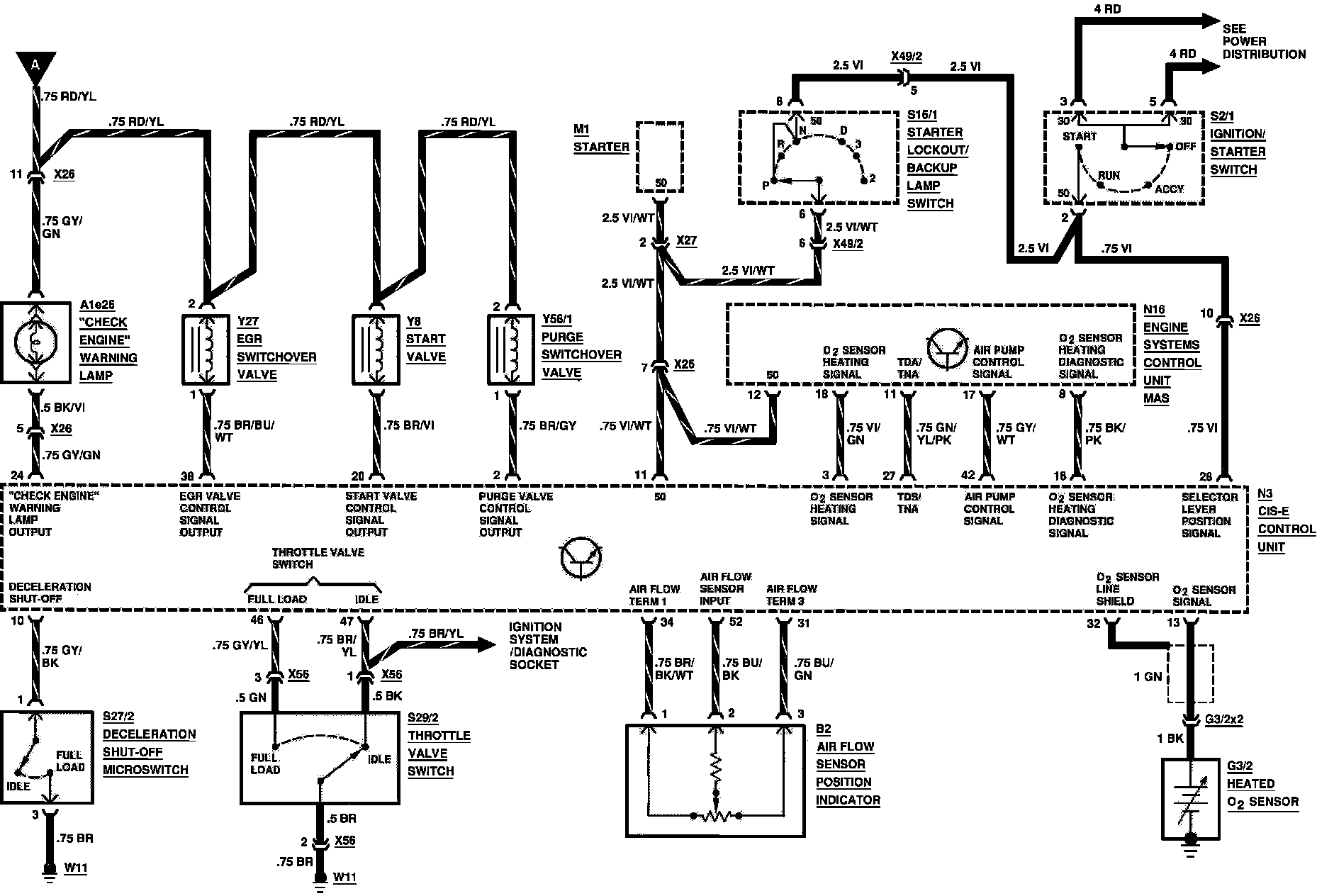

Engine Management:

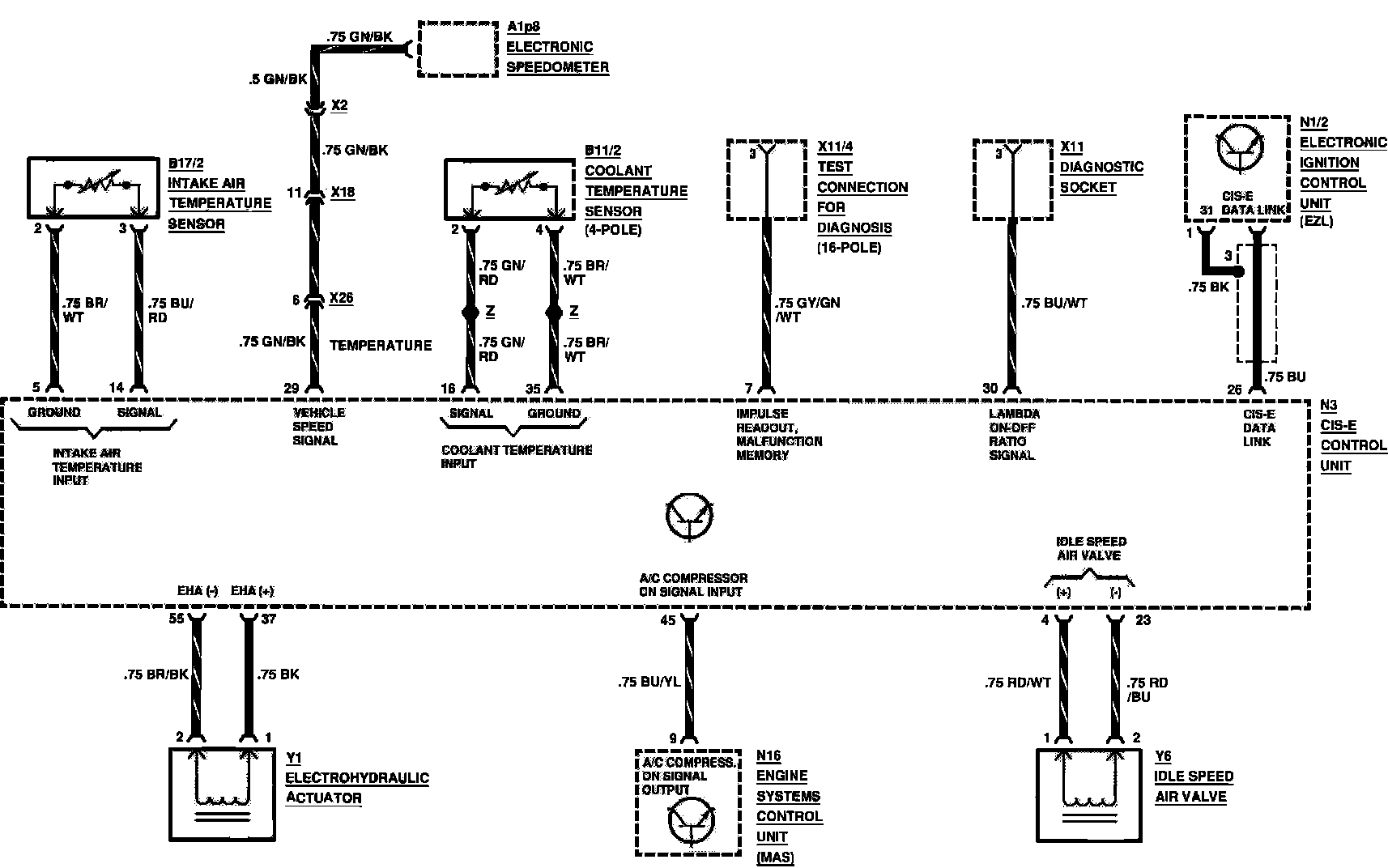

Engine Management:
Engine Management:
