Powertrain Management
>>
System Diagram
>>
Fuel Injection
>>
California
California

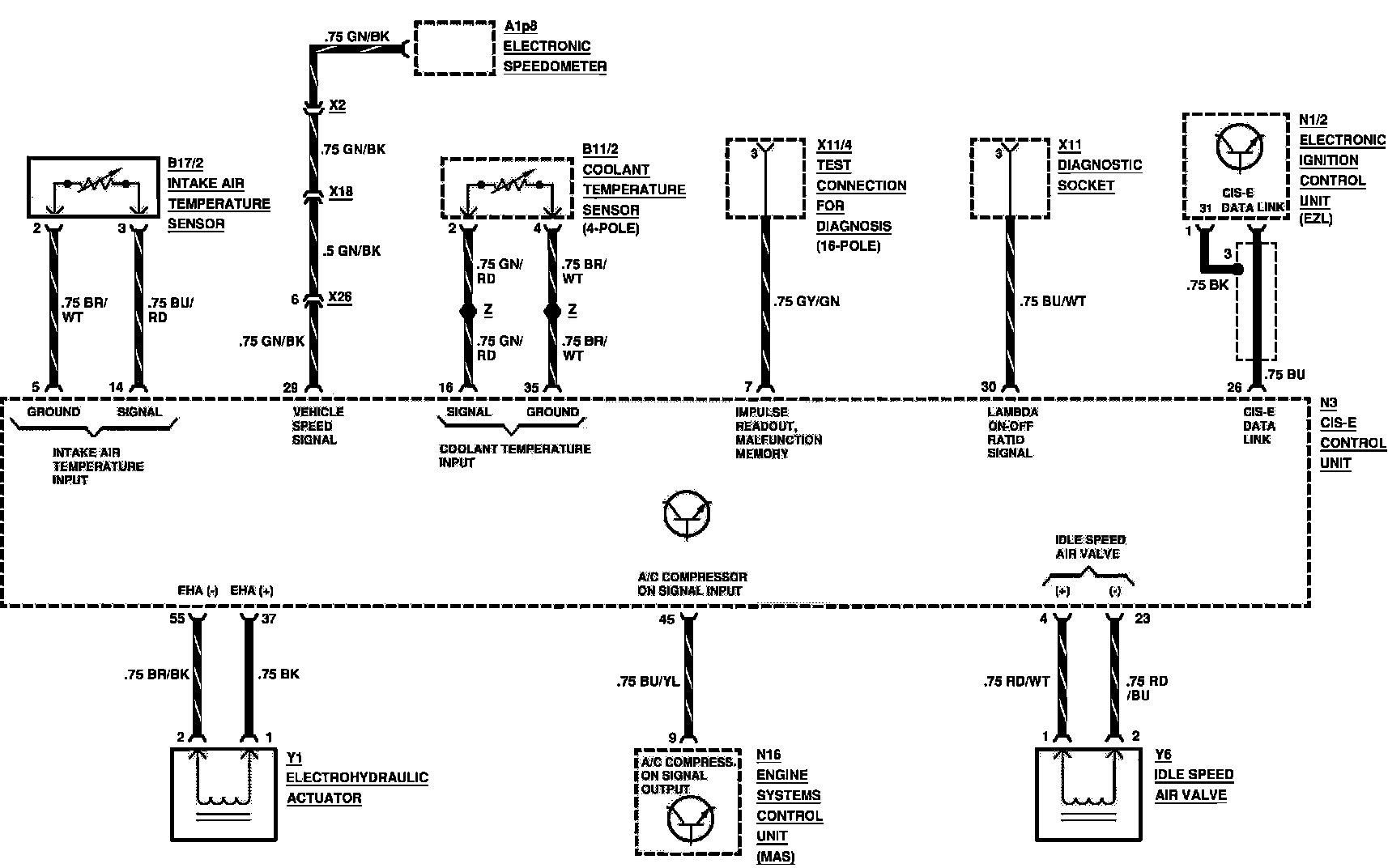

Engine Management (CIS-E Control Unit):

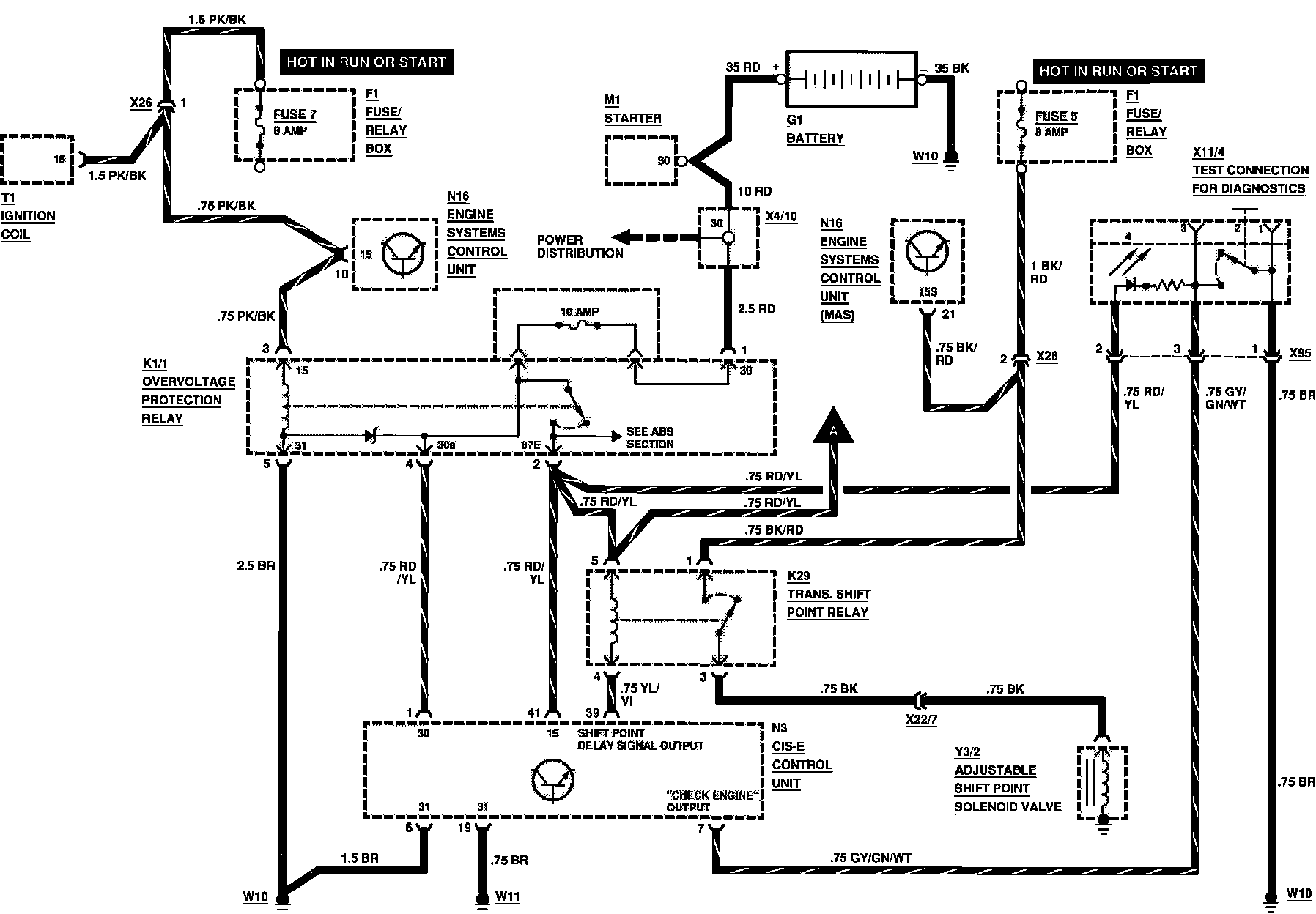

Engine Management (CIS-E Control Unit):

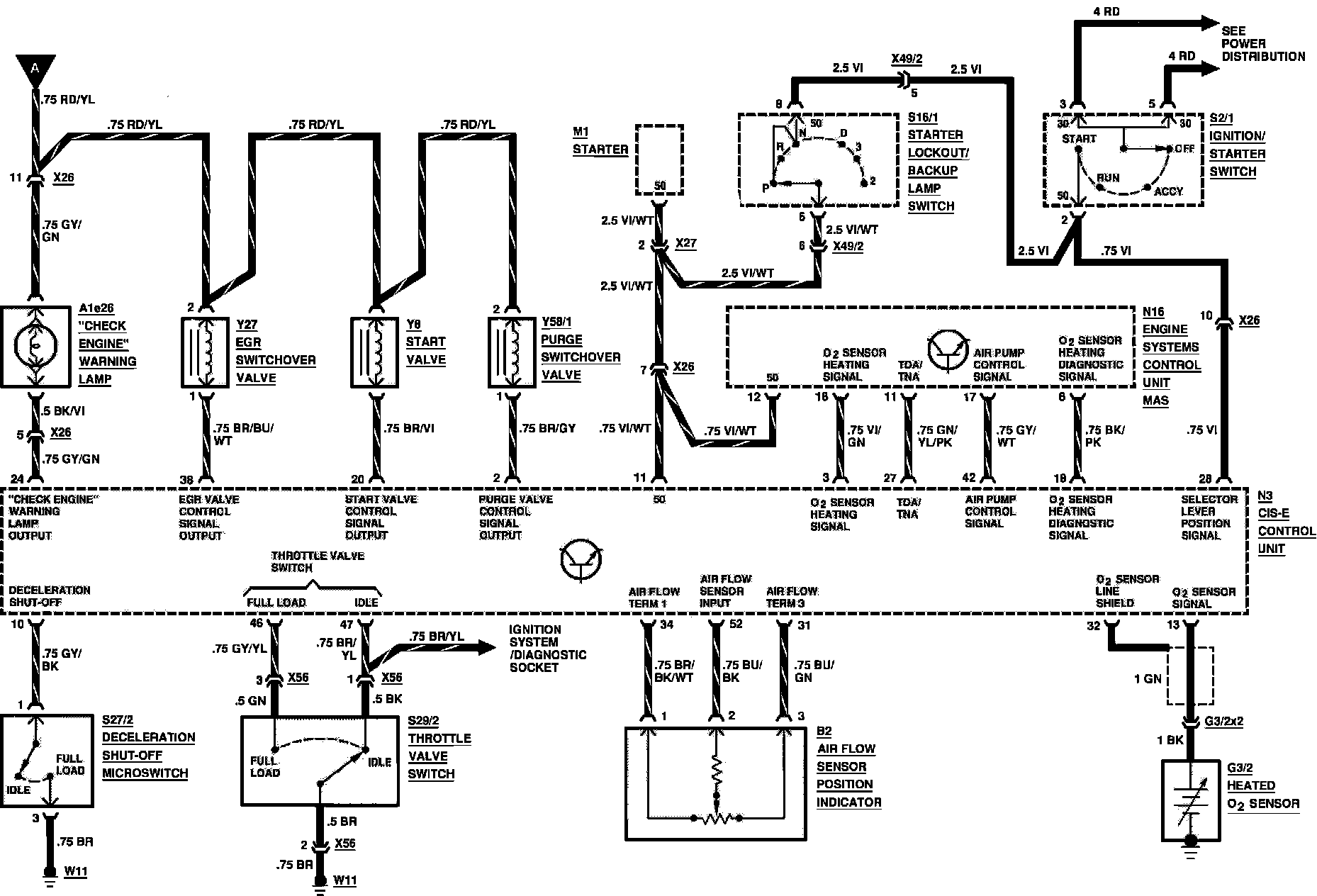

Engine Management (CIS-E Control Unit):
