Canister Purge Control Valve: Locations

Fig. 49 EVAP Component Locations:

Models 560 SEC, SEL
The Charcoal Canister is located behind the left front wheel housing (removal of the plastic access cover is necessary).

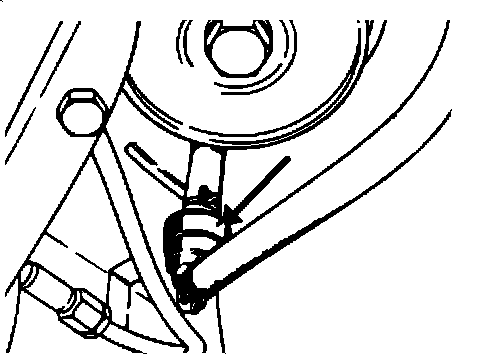

The purge valve is located on the left inner fender well.

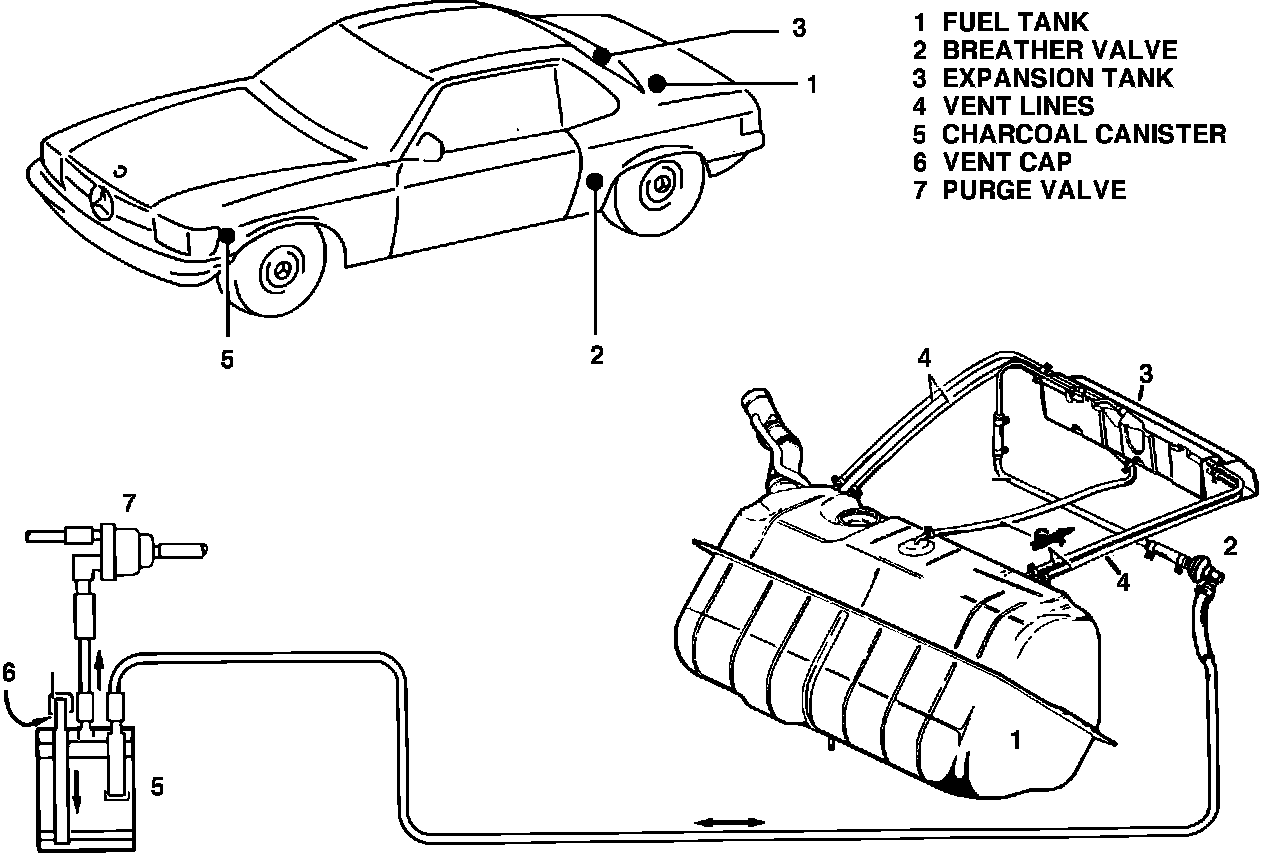

Fig. 5 Evaporative Hose Routing:

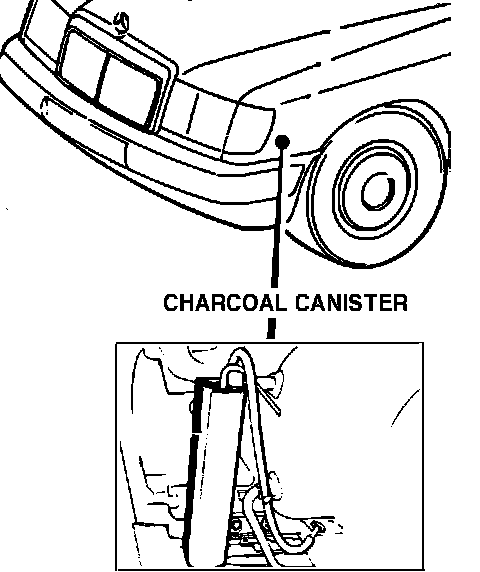

Fig. 59 Charcoal Canister Location:

Model 560 SL

Fig. 60 Breather Valve Location:

The breather valve is located at the rear of the car near the fuel tank.
