Mercedes Benz
>>
1989
>>
260E (124.026) L6-2.6L (103.940)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Electronic Engine Controls
Electronic Engine Controls

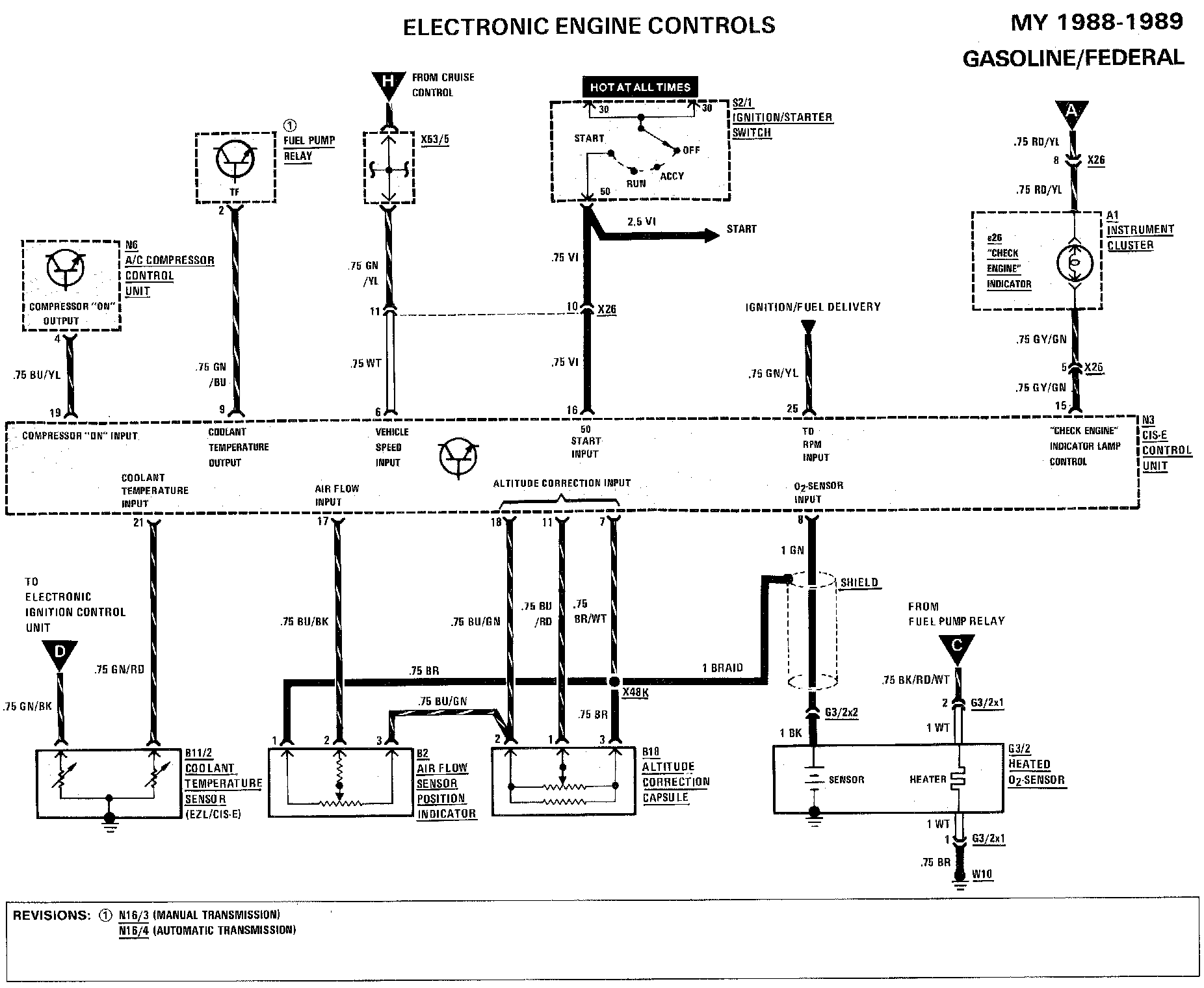

Electronic Engine Controls [Federal]:

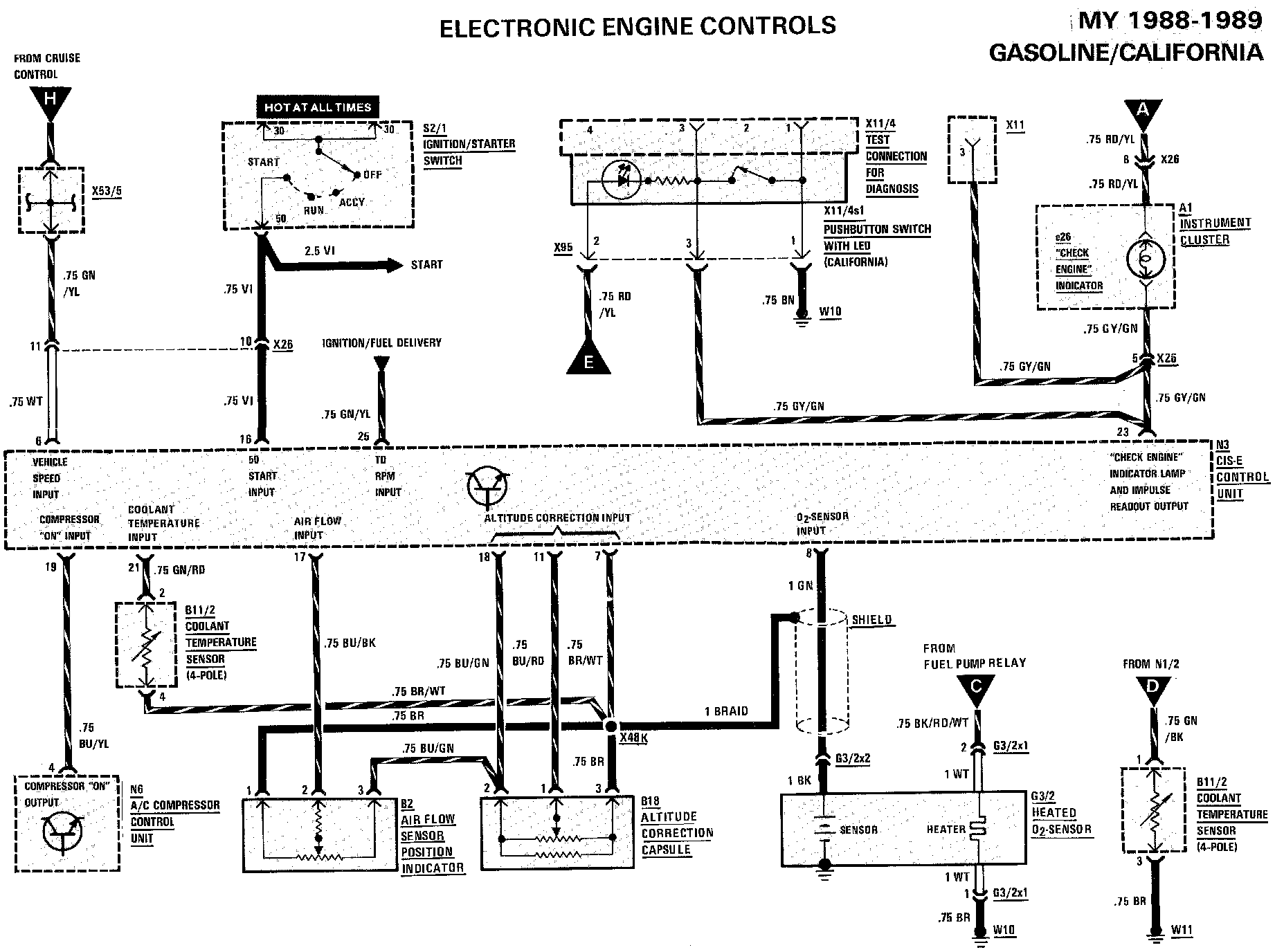

Electronic Engine Controls [California]:
