Home >> Mercedes Benz >> 1988 >> 190E 2.3 (201.028) L4-2.3L (102.985) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> TD Signal Test >> 1988 California

1988 California


Special Tools





Equipment
^ Digital multimeter - SUN DMM-5. Fluke model 23
- Available through the MBNA Standard Equipment Program

t��:

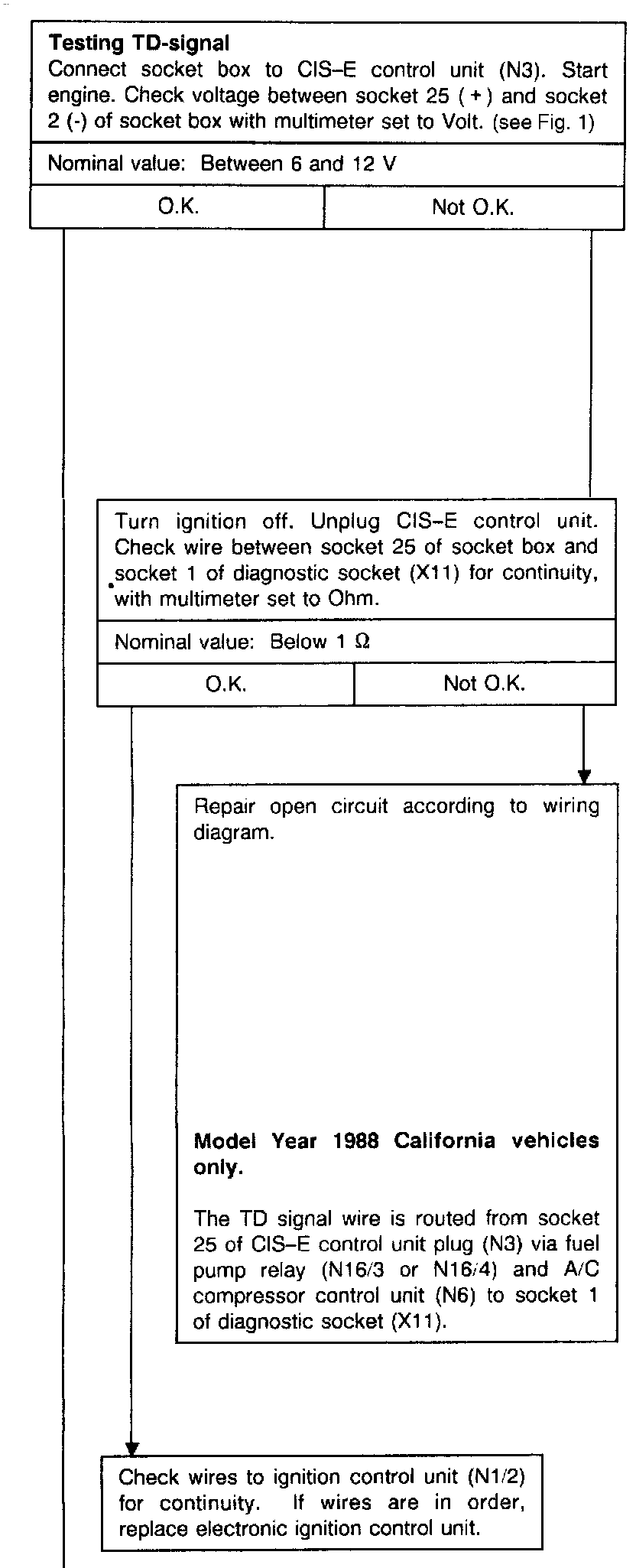

Fig. 1:
