With Impulse Counter

1988 California Vehicles only.

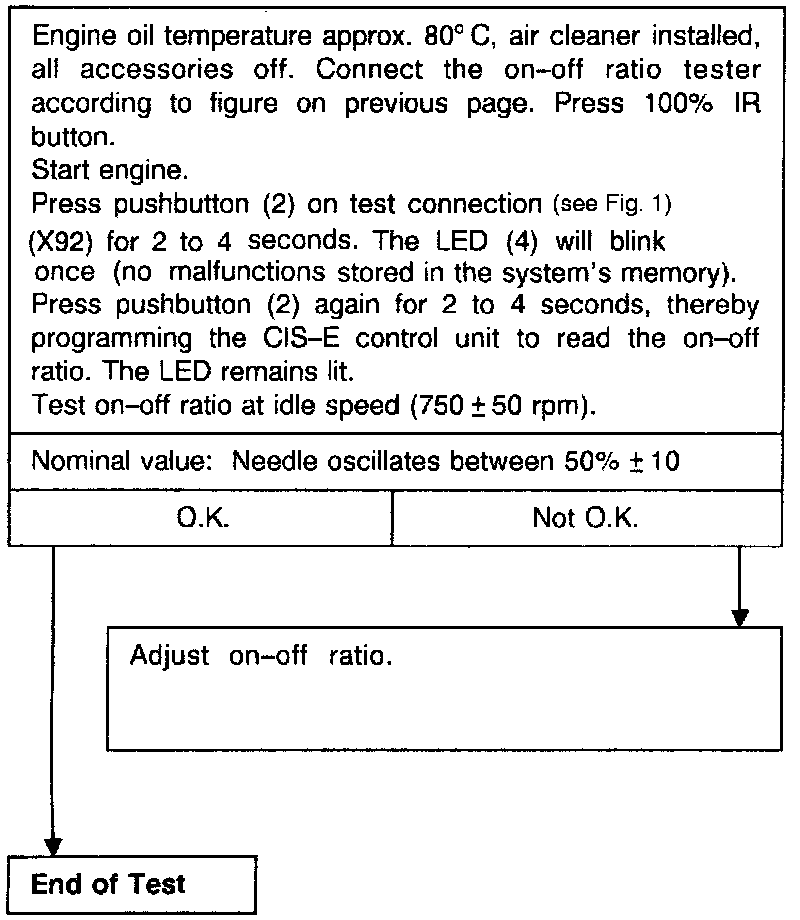

Test Data
On-off ratio at idle speed 50% ± 10 and needle oscillation

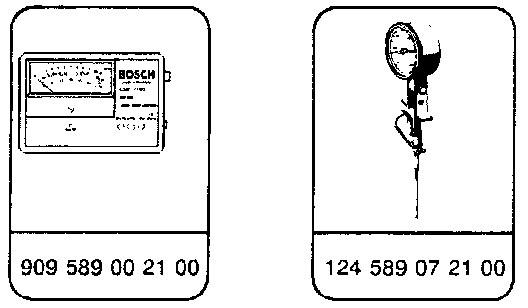

Special Tools

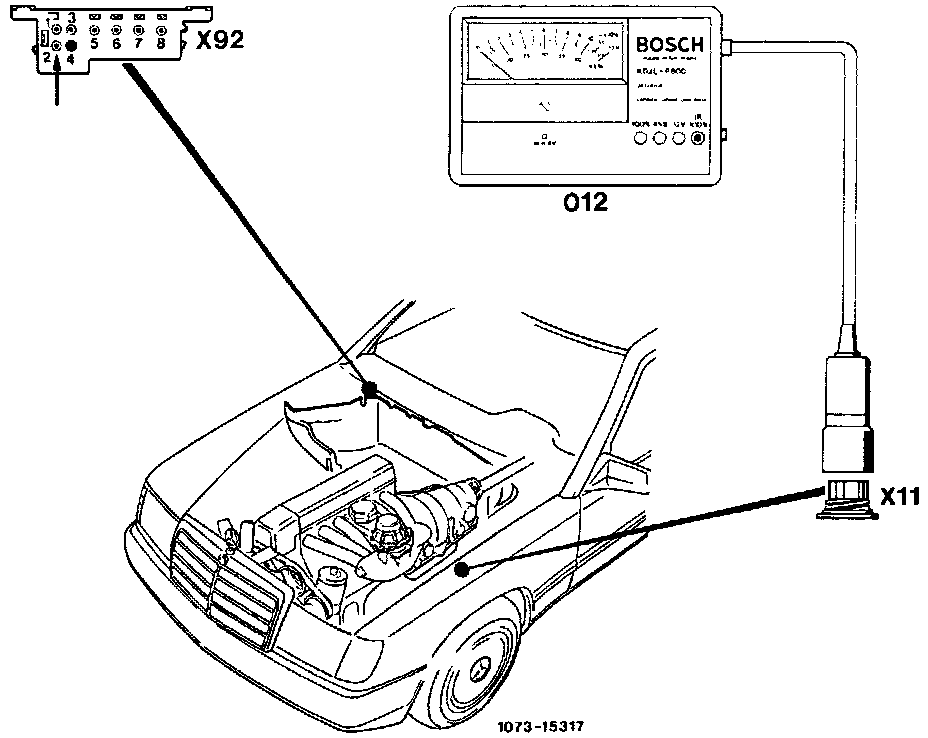

012 On-off ratio tester
X11 Diagnostic socket

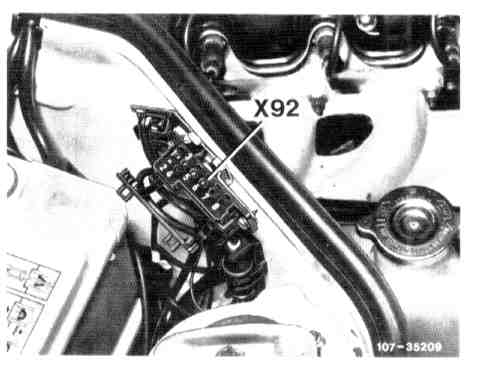

X92 Test connection for diagnosis - (8-pole, impulse readout)
