Home
>>
Mercedes Benz
>>
1987
>>
560SL (107.048) V8-5.6L (117.967)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Automatic Air Conditioning (Auto A/C)
>>
Function Test of Total System and Remedies (with adaptor)
>>
Tests
>>
Test C
Test C

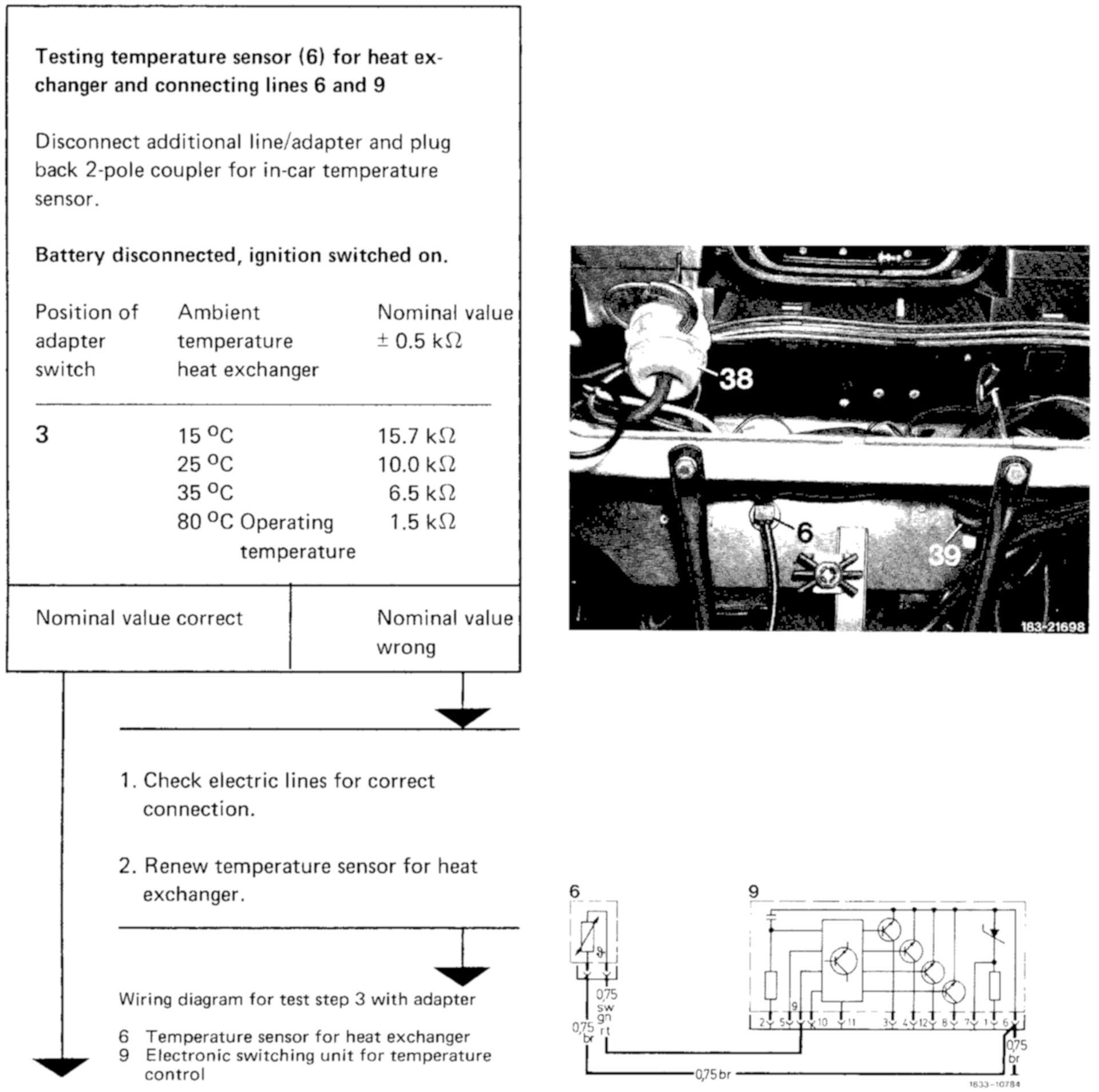

TESTING TEMPERATURE SENSOR (6) FOR HEAT EXCHANGER AND CONNECTING LINES 6 AND 9
:
