Compressor Clutch: Locations

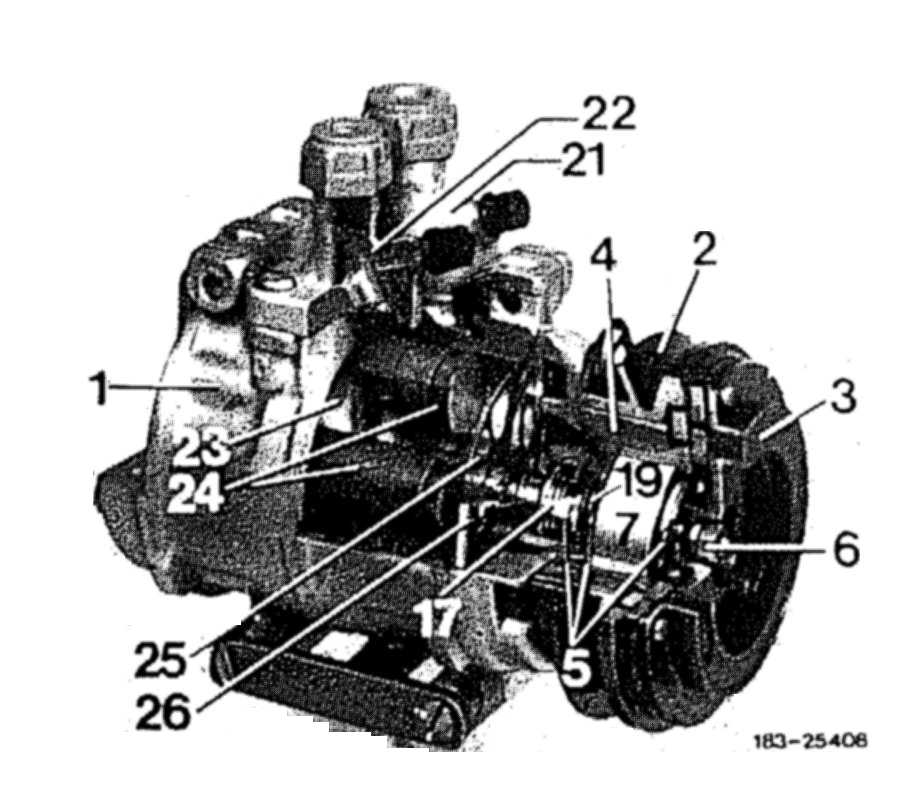

Nippondenso Refrigerant Compressor





1 Nippondenso refrigerant
2 V-belt pulley
3 Spring plate
4 Magnetic coil
5 Locking rings (pressure end)
6 Fastening nut
7 Antifriction bearing (pulley)
17 Shaft seal
19 Shaft sealing body compressor with 0-ring
21 Service valve (suction end)
22 Service valve (pressure end)
23 Swash plate
24 Double piston (5 each)
25 Valve plate
26 Valve plate (suction end)
