Codes for Fuel Injection System (CIS-E)

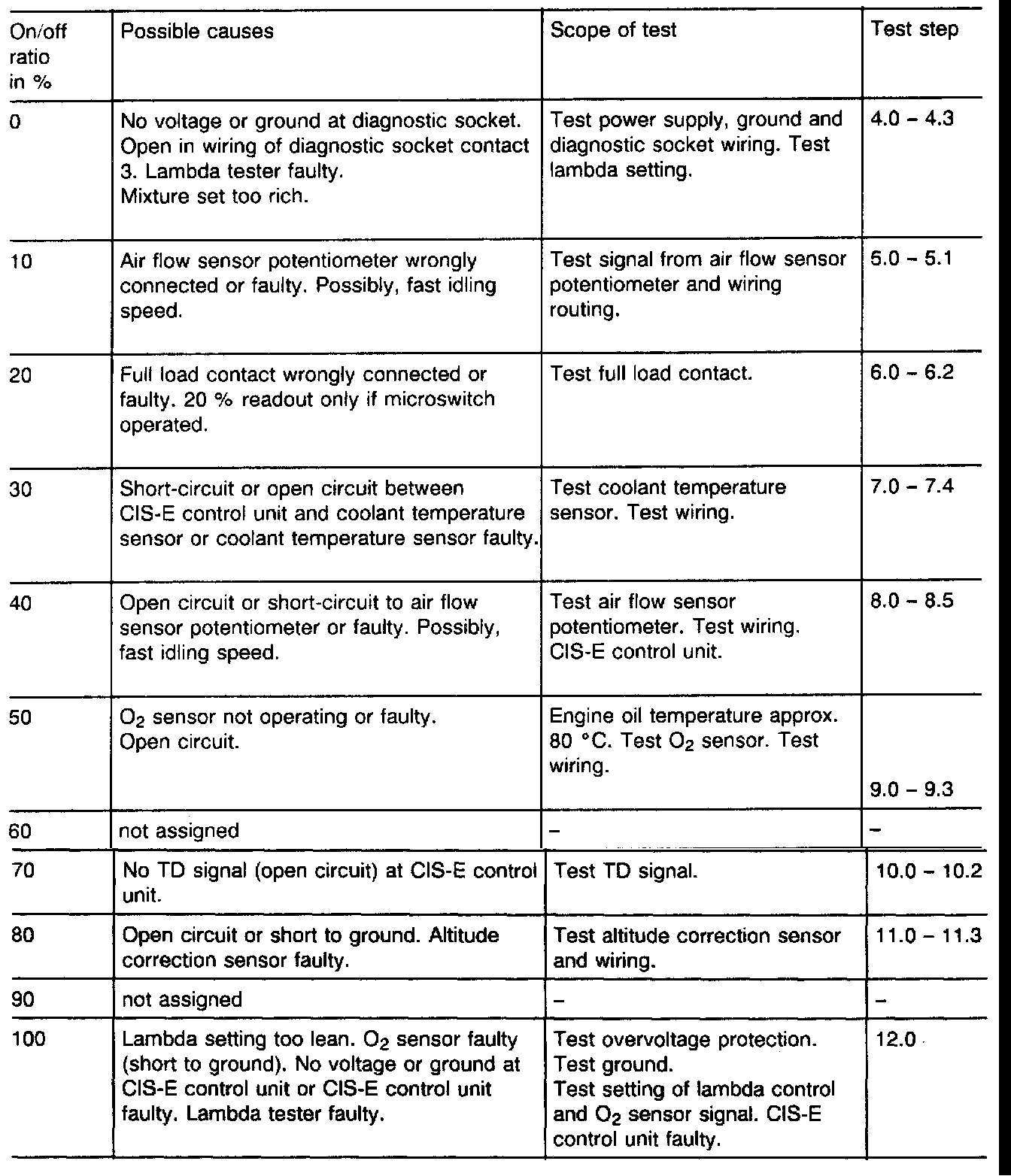

Troubleshooting tableTest condition:
Battery voltage 11 - 14 V
Engine should be idling and engine oil temperature approx. 80 °C for measuring on/off ratio.
After identification of the DTC, proceed to the proper Test Step at "Diagnostic Trouble Code Test Procedures".
