Mercedes Benz
>>
1987
>>
300SDL (126.125) L6-3.0L DSL Turbo (603.961)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Exhaust Gas Recirculation
>>
Diagrams
>>
California
California

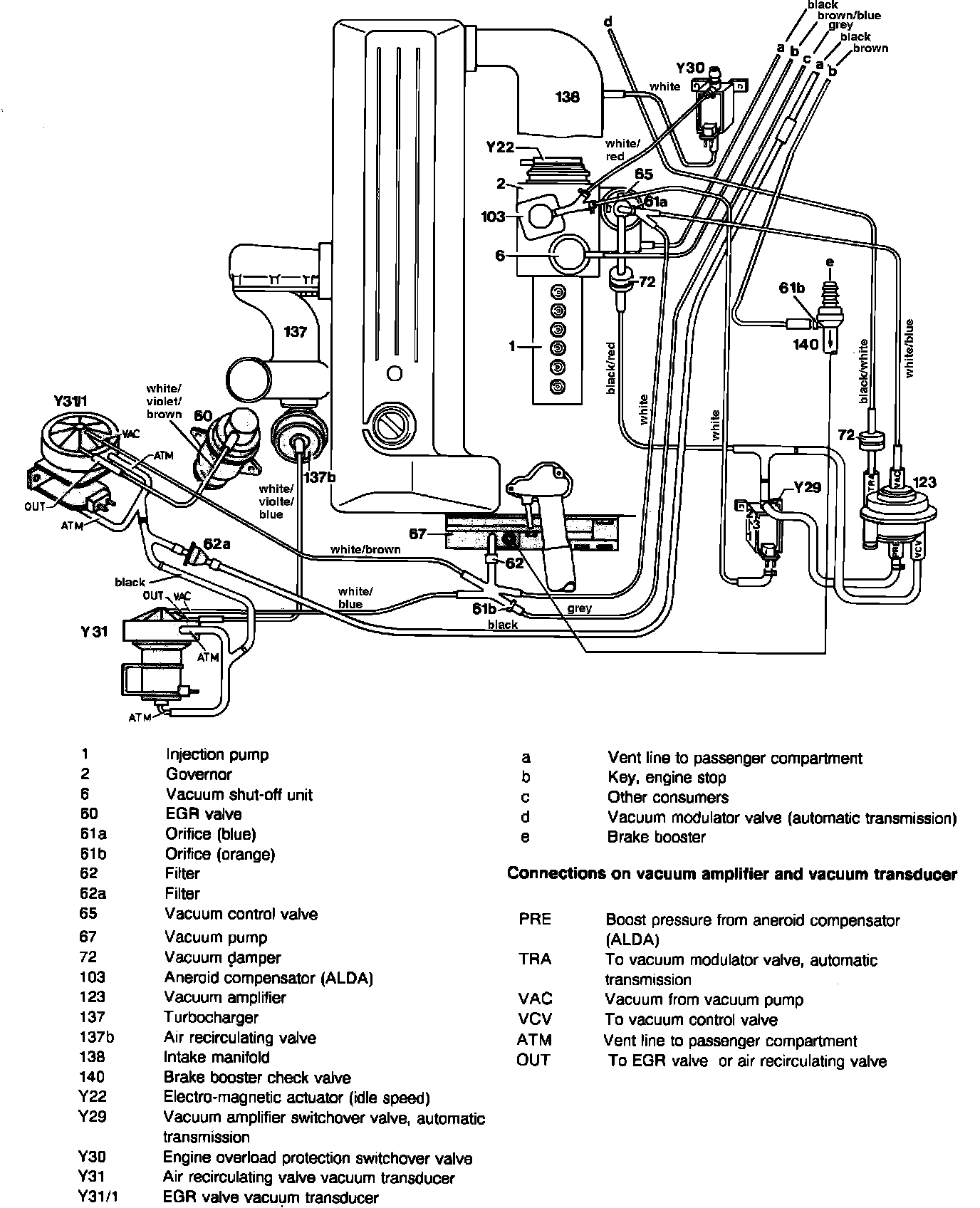

Fig. 71, Vacuum line routing:
