Mercedes Benz
>>
1987
>>
300SDL (126.125) L6-3.0L DSL Turbo (603.961)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>

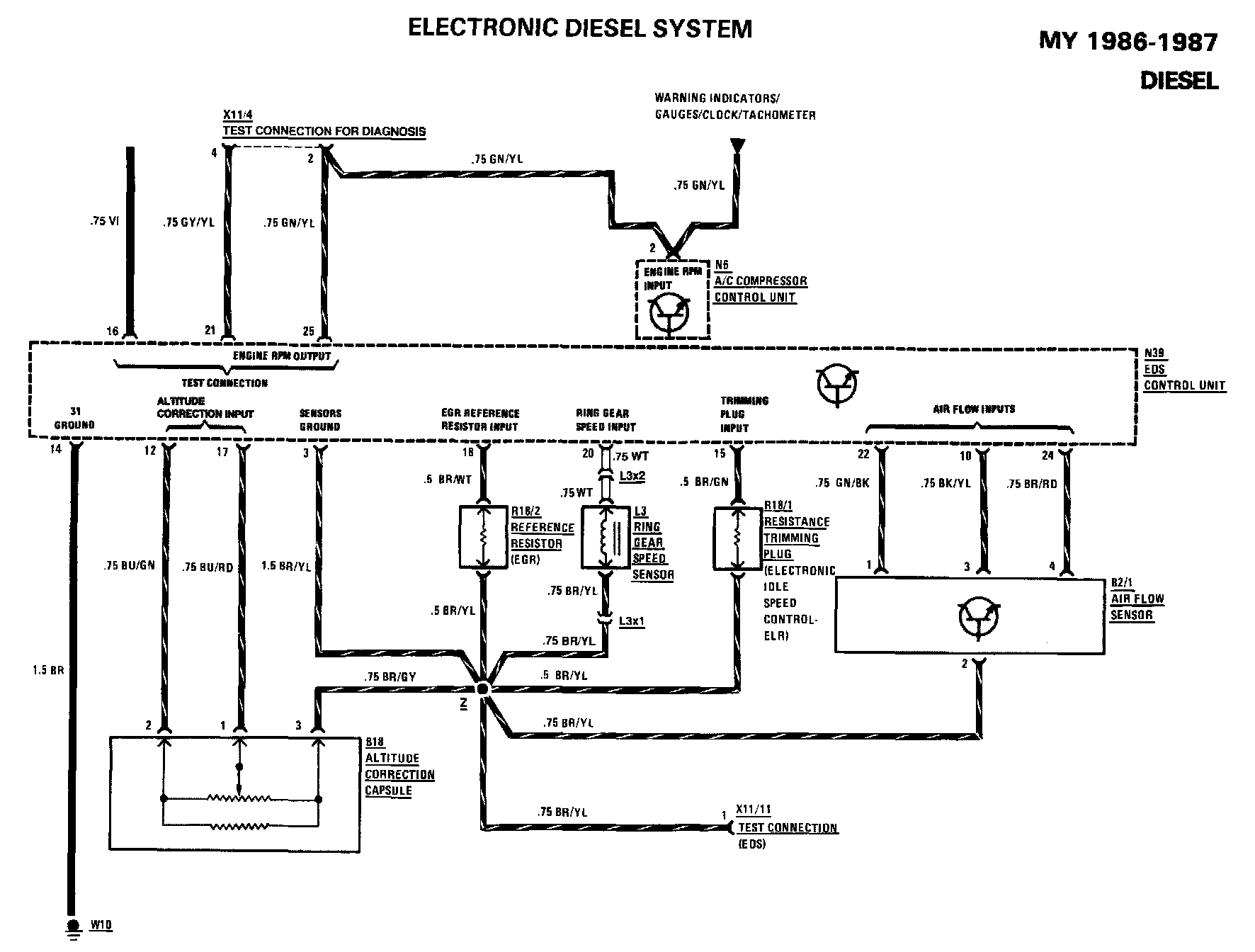

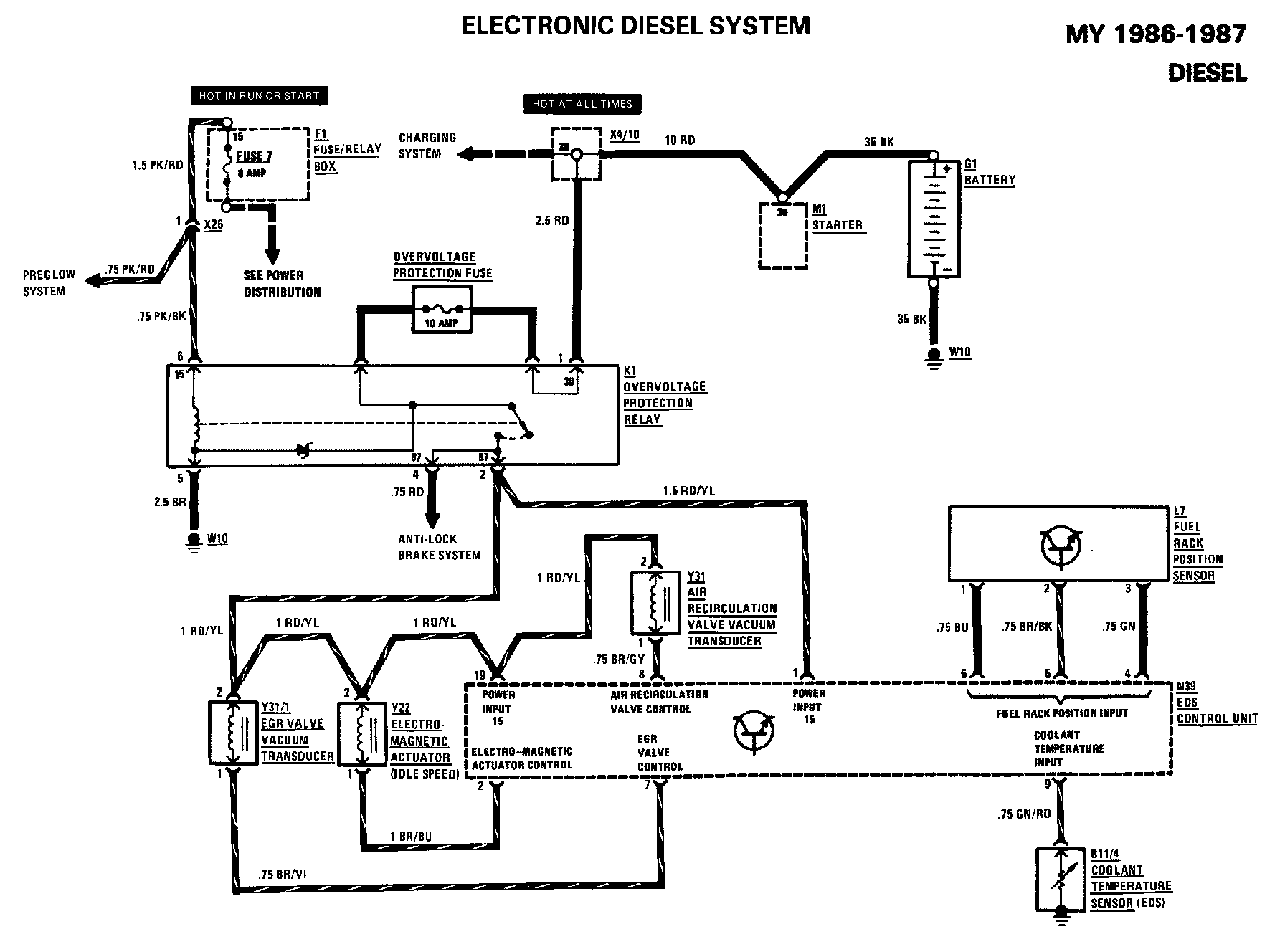

Electronic Diesel System (EDS)
Electronic Diesel System (EDS)
