Electrical Diagrams
Electrical Diagrams

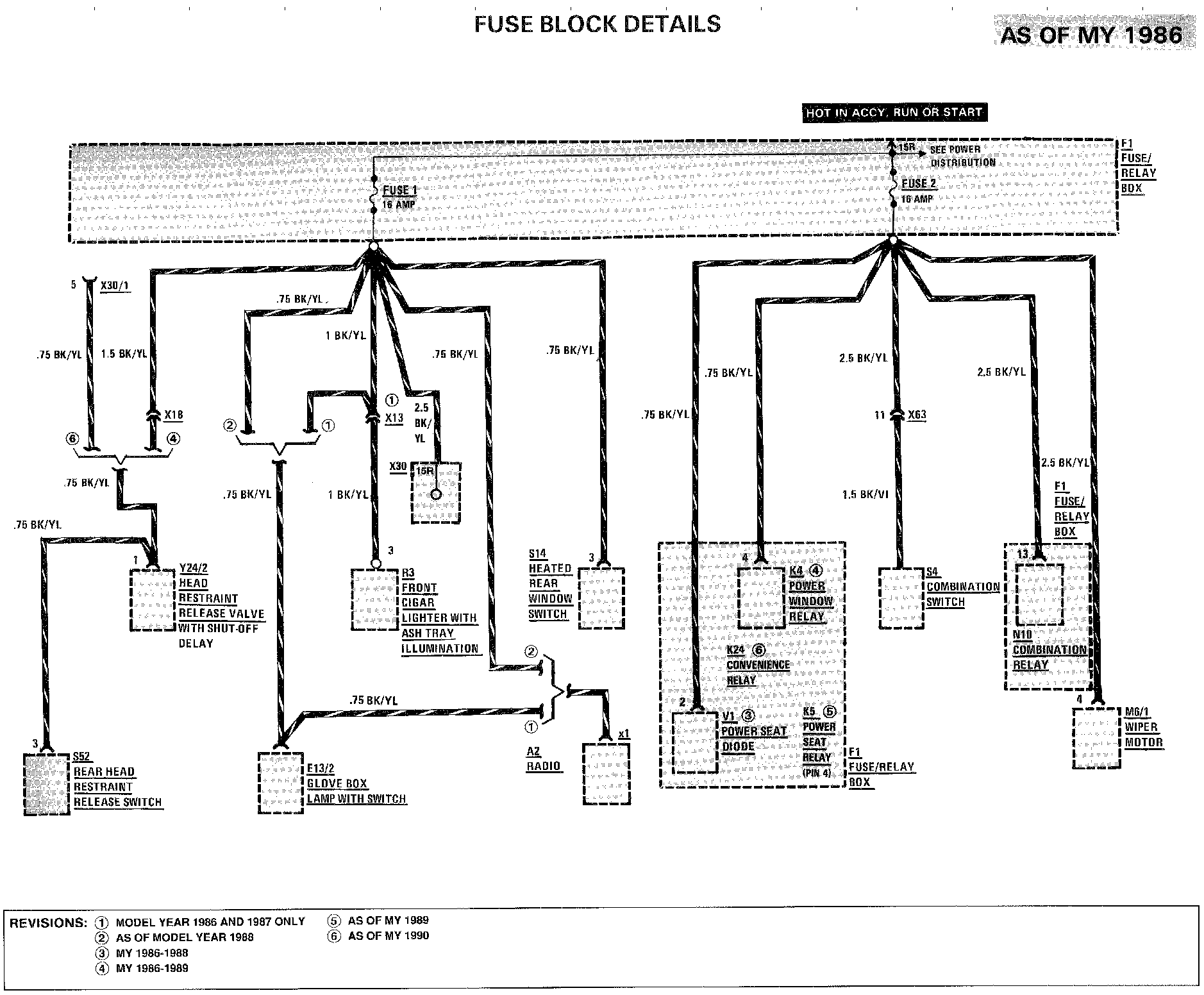

Fuse Block Details:

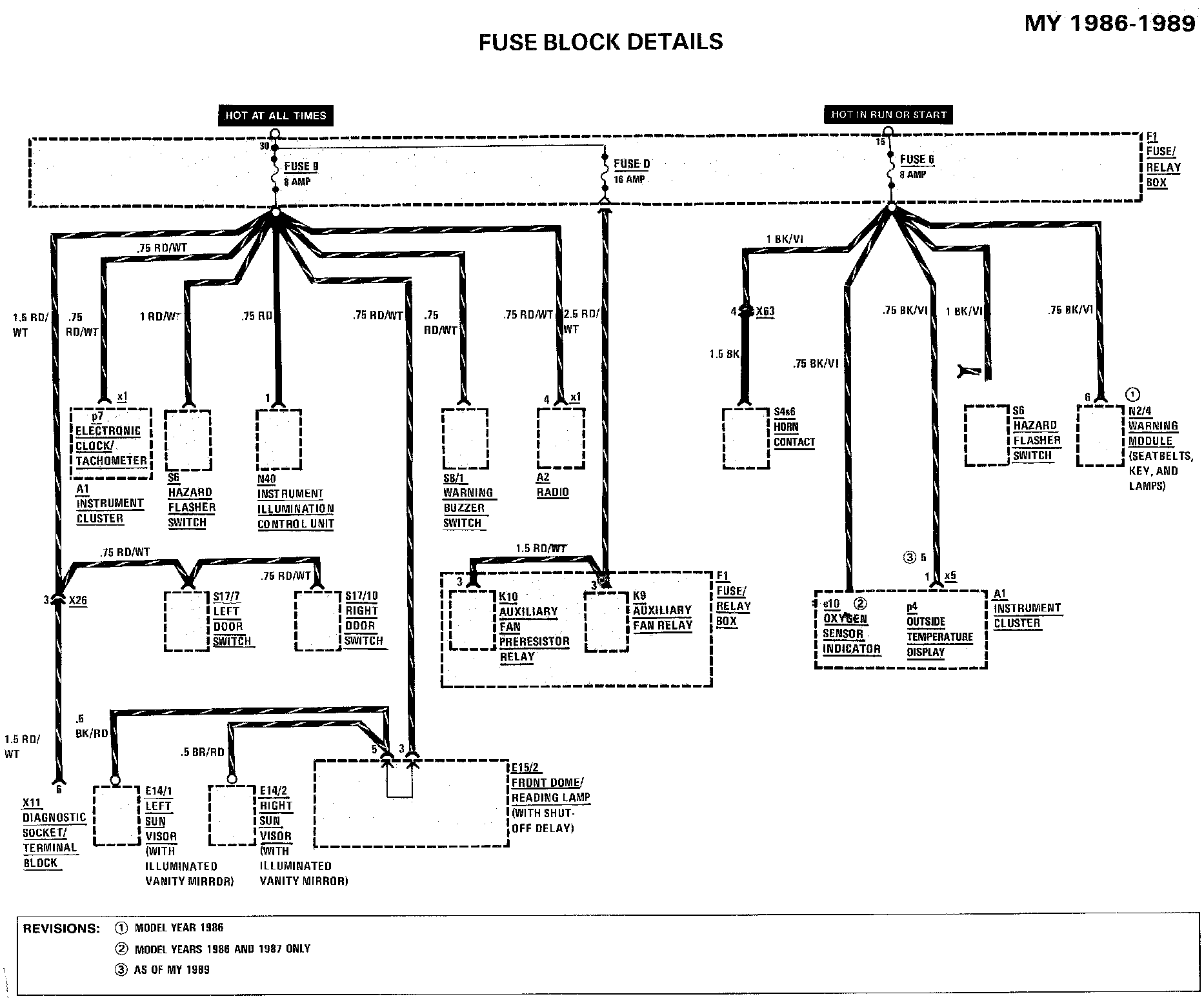

Fuse Block Details:

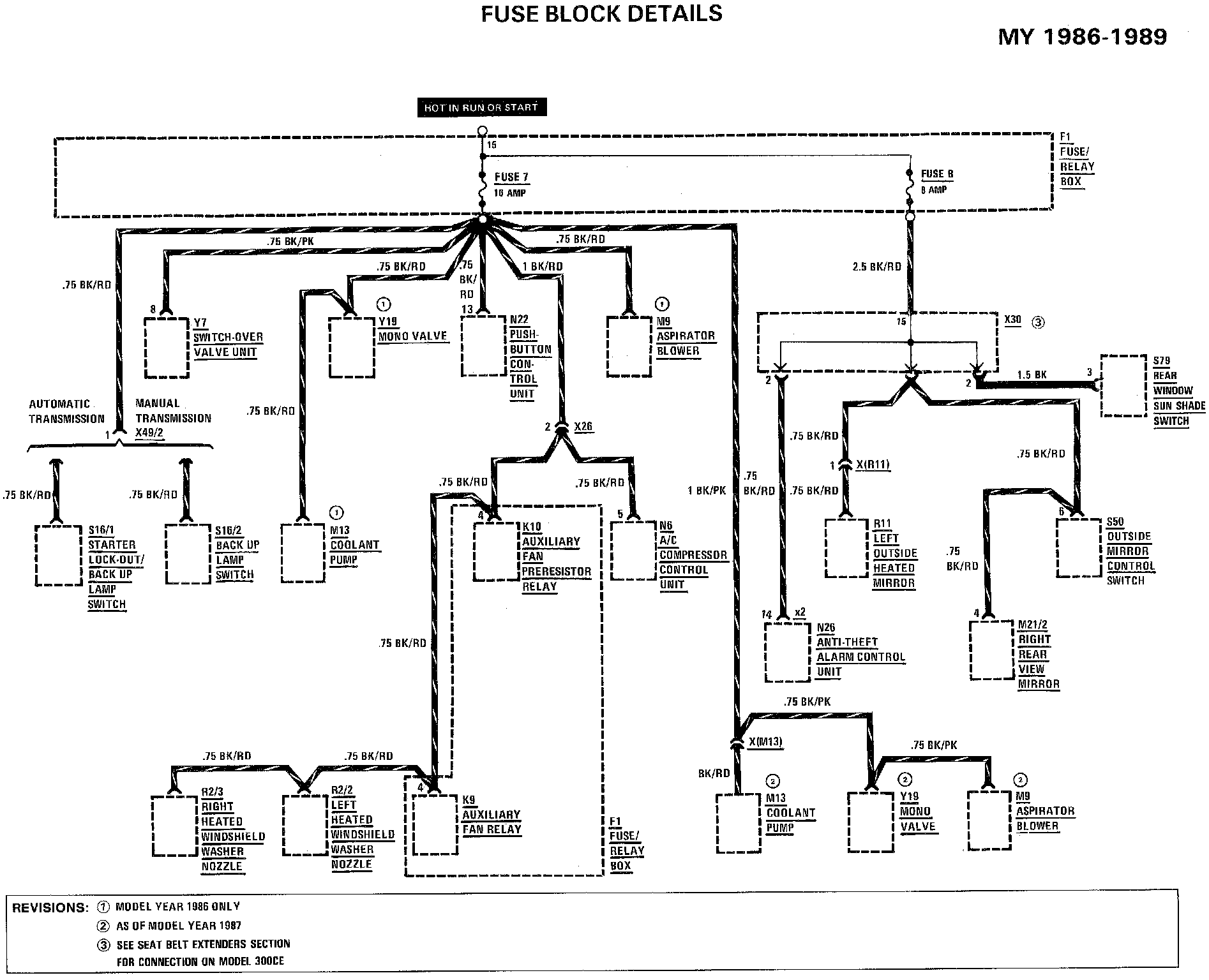

Fuse Block Details:

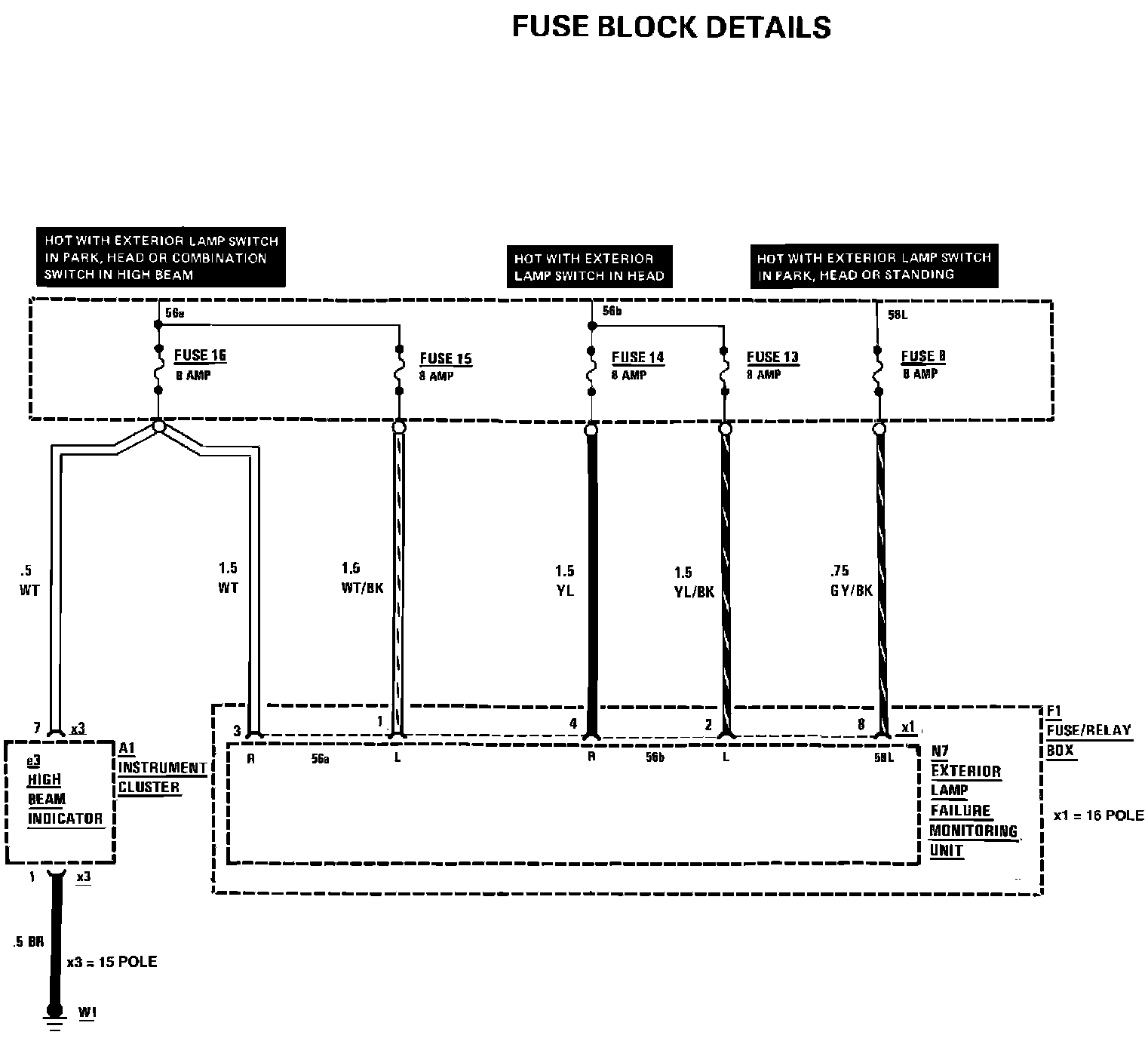

Fuse Block Details:

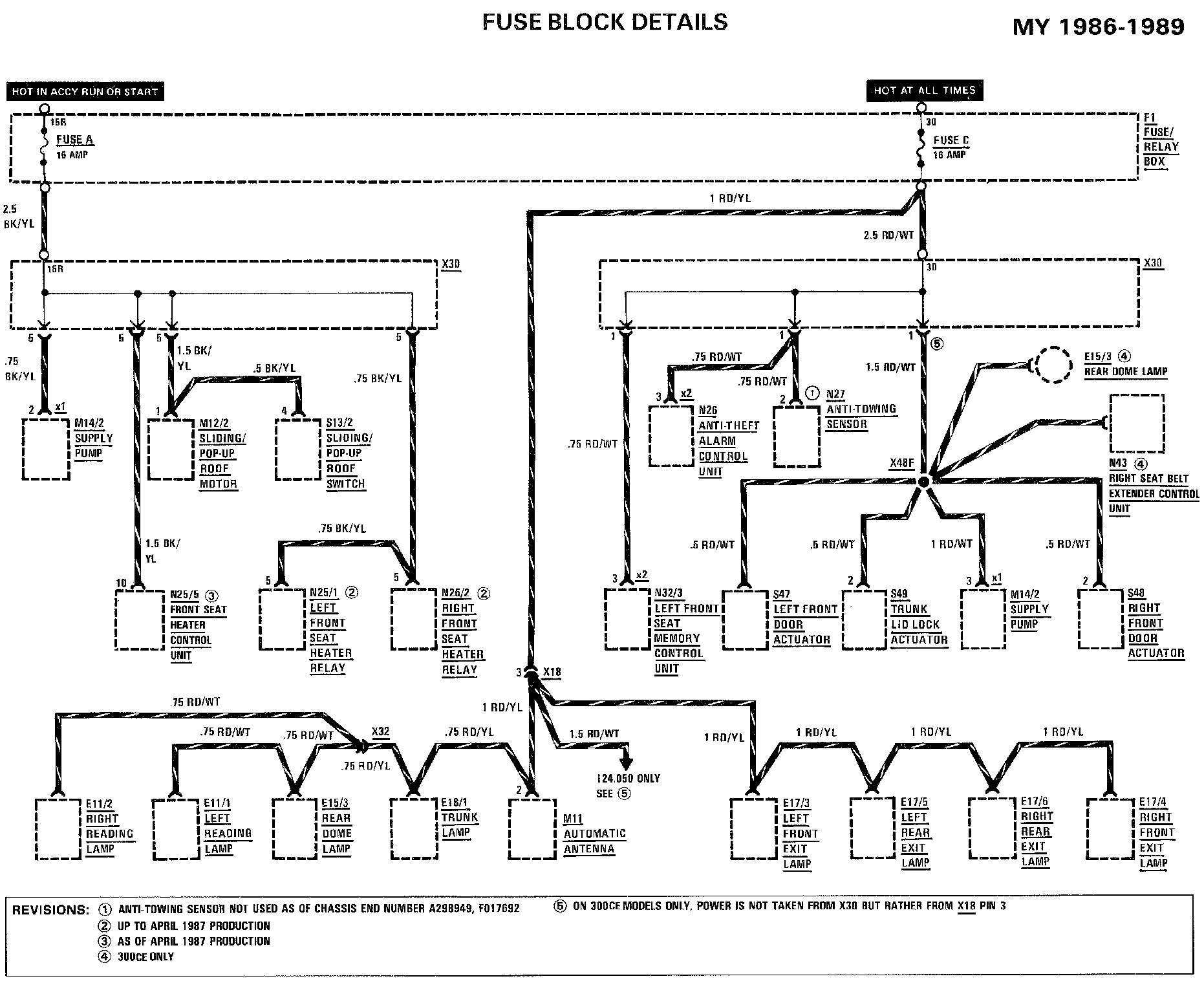

Fuse Block Details:

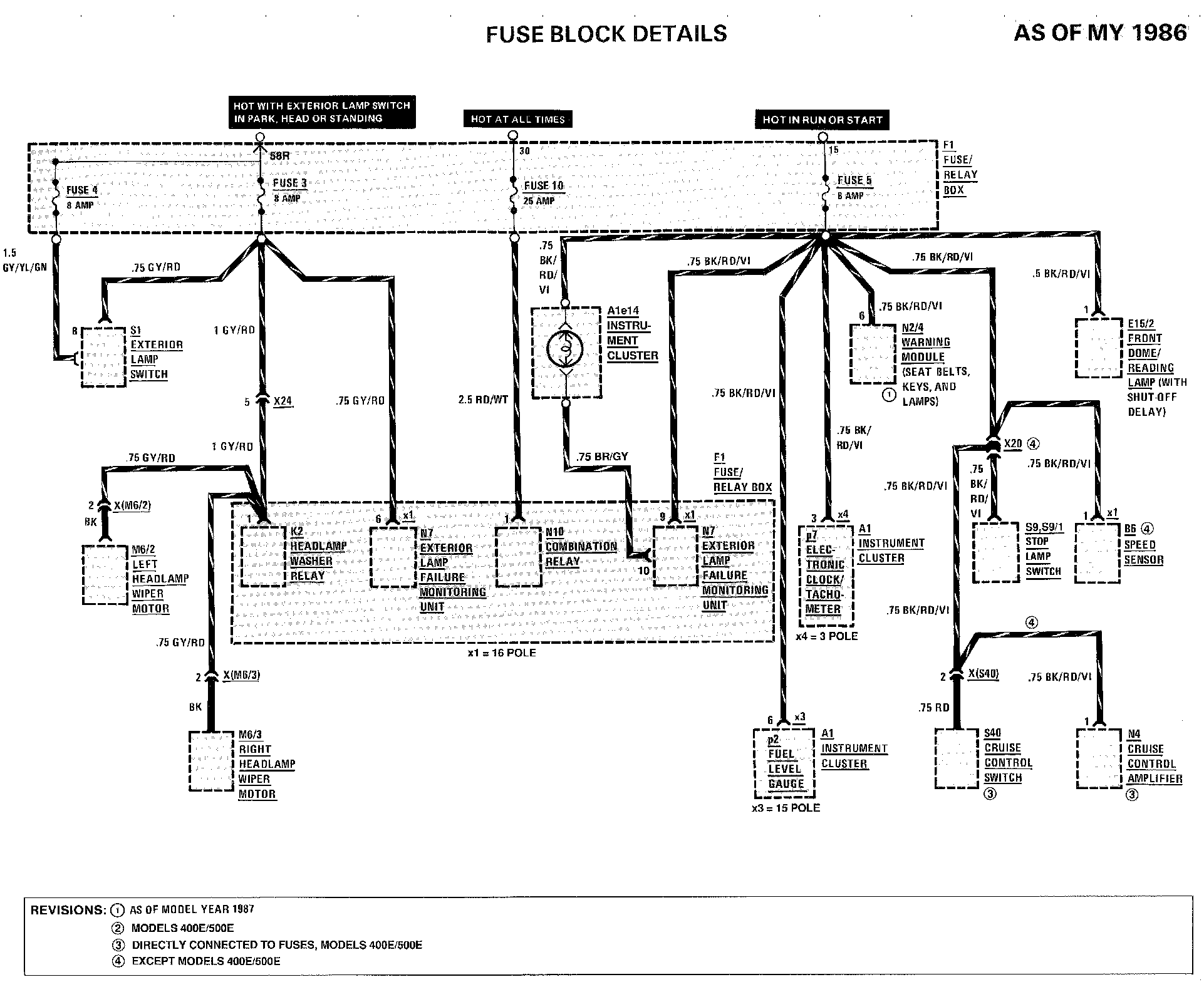

Fuse Block Details:
