Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
1987
>>
260E (124.026) L6-2.6L (103.940)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Electronic Engine Controls/Diagnostic Socket
Electronic Engine Controls/Diagnostic Socket

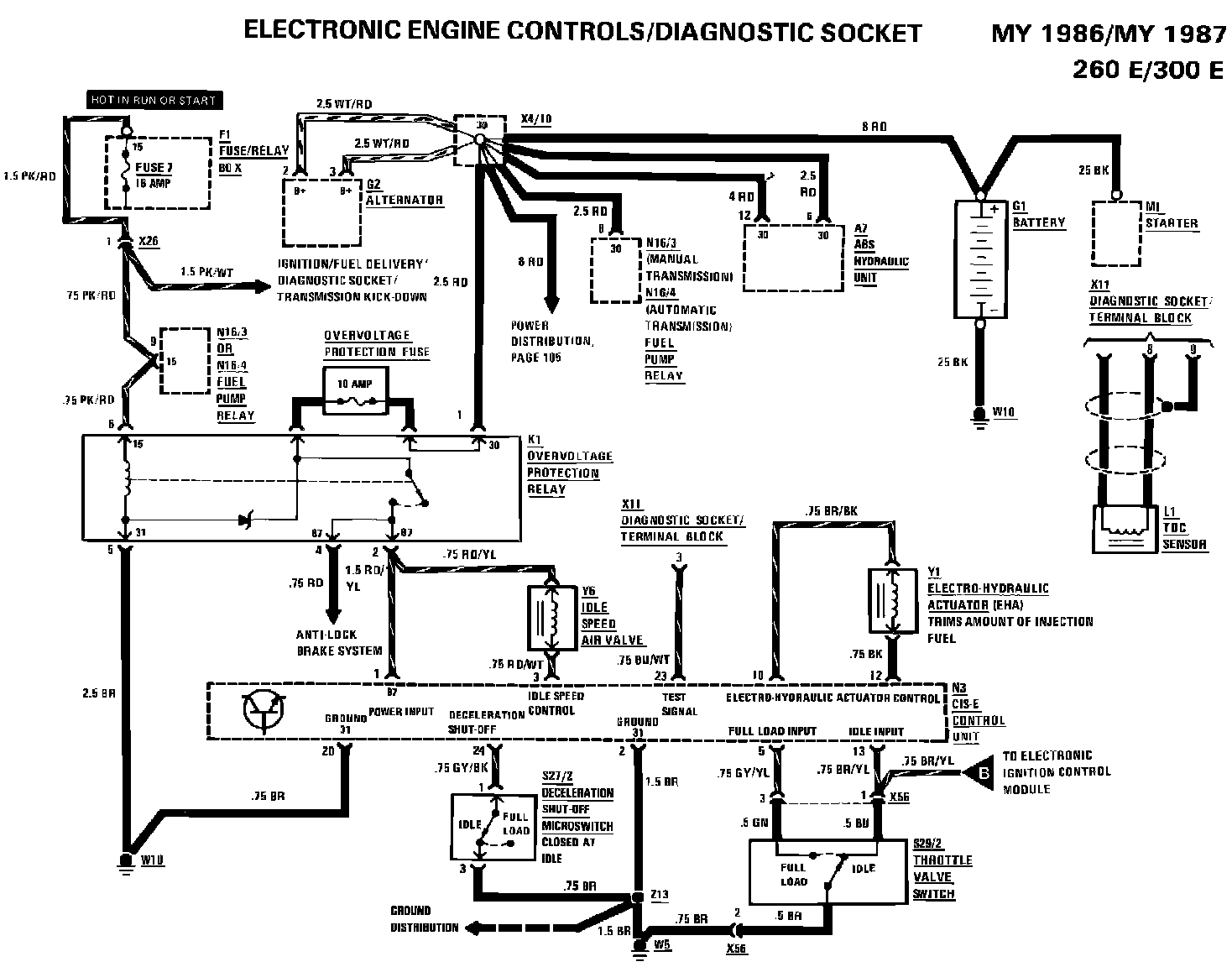

Electronic Engine Controls / Diagnostic Socket:
