260E (124.026) L6-2.6L (103.940)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
System Diagram
>>
Power Seats
Power Seats

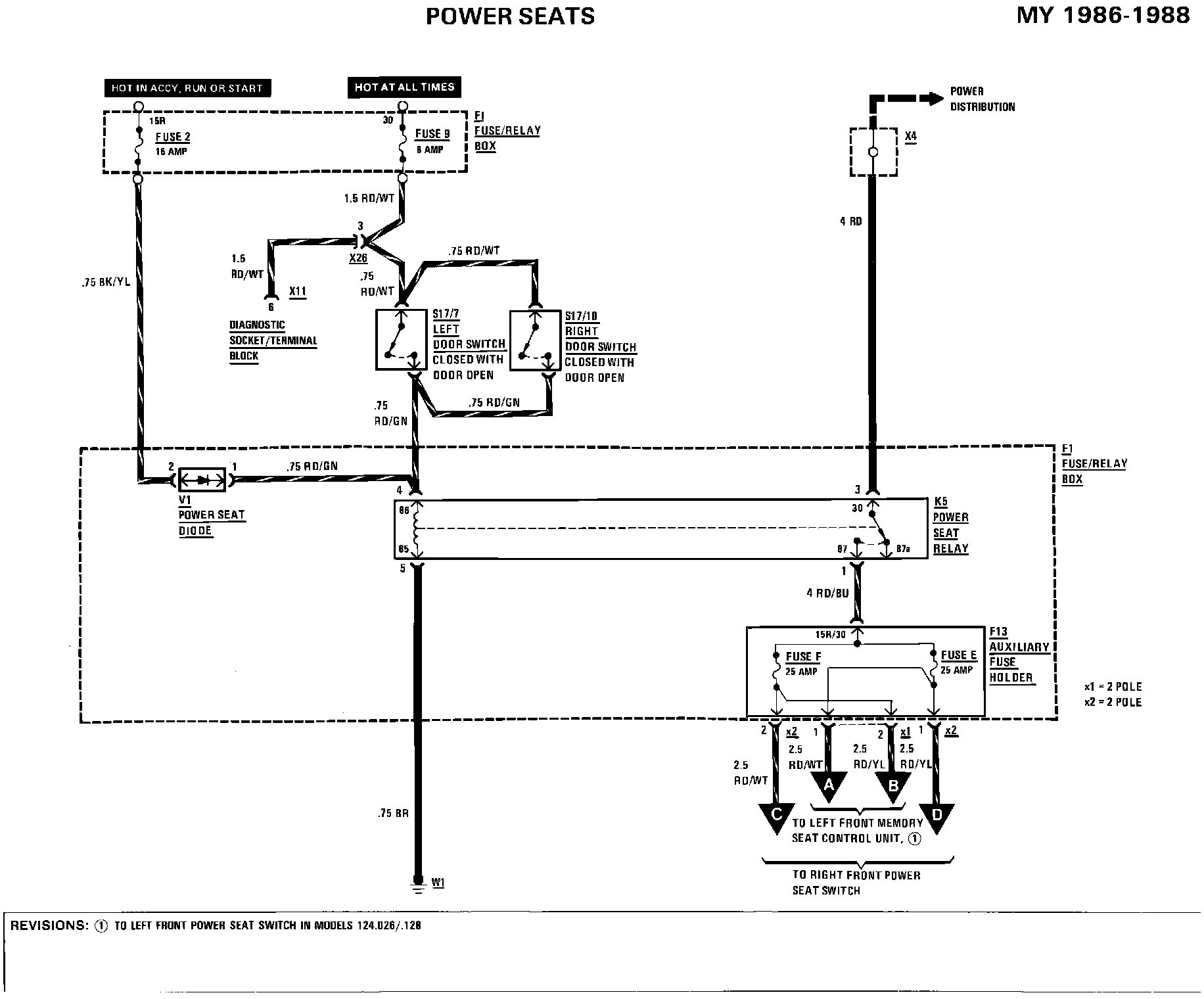

Power Seats:

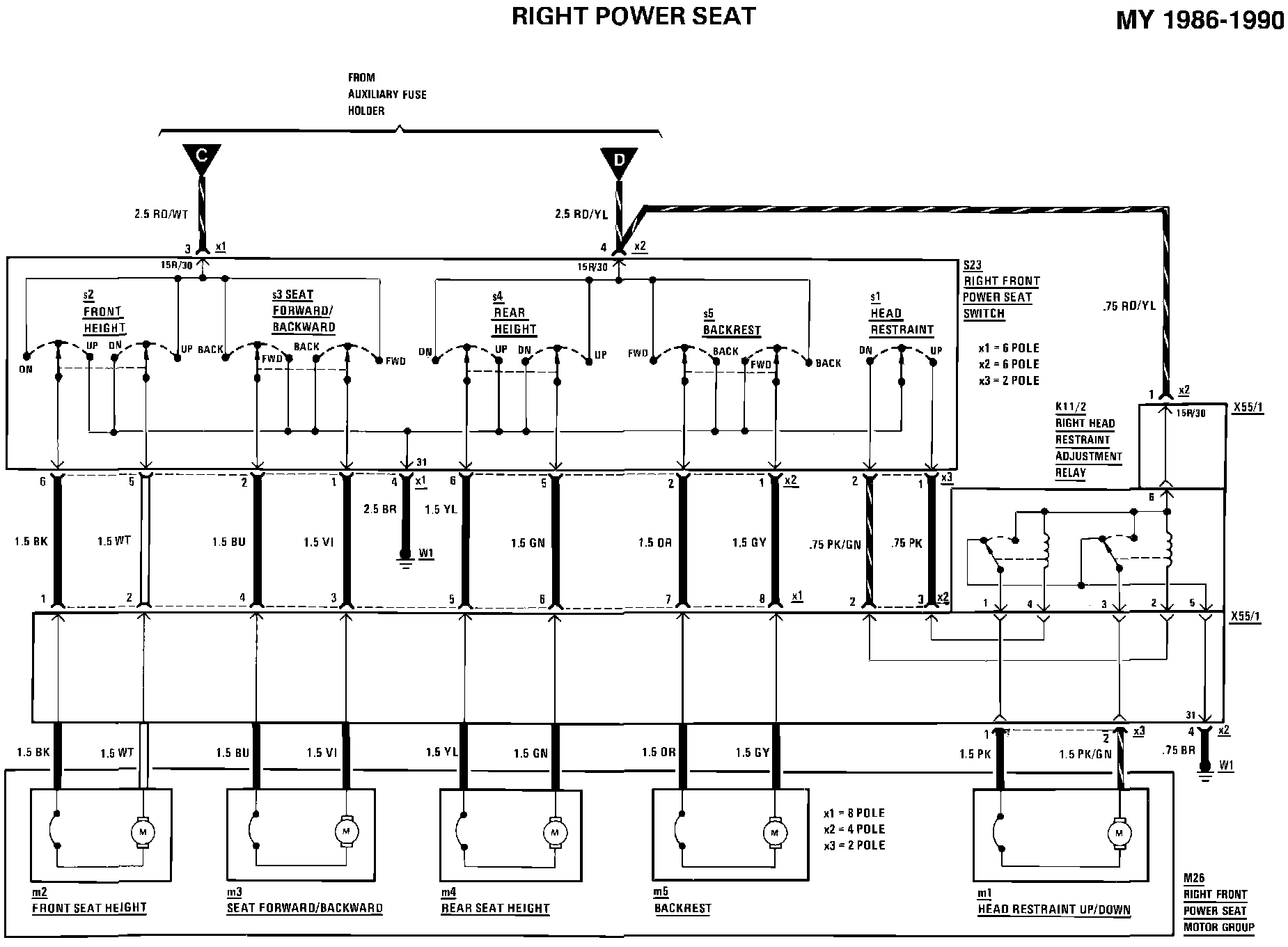

Right Power Seat:
Left Power Seat:
