Mercedes Benz
>>
1987
>>
260E (124.026) L6-2.6L (103.940)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>
System Diagram
System Diagram

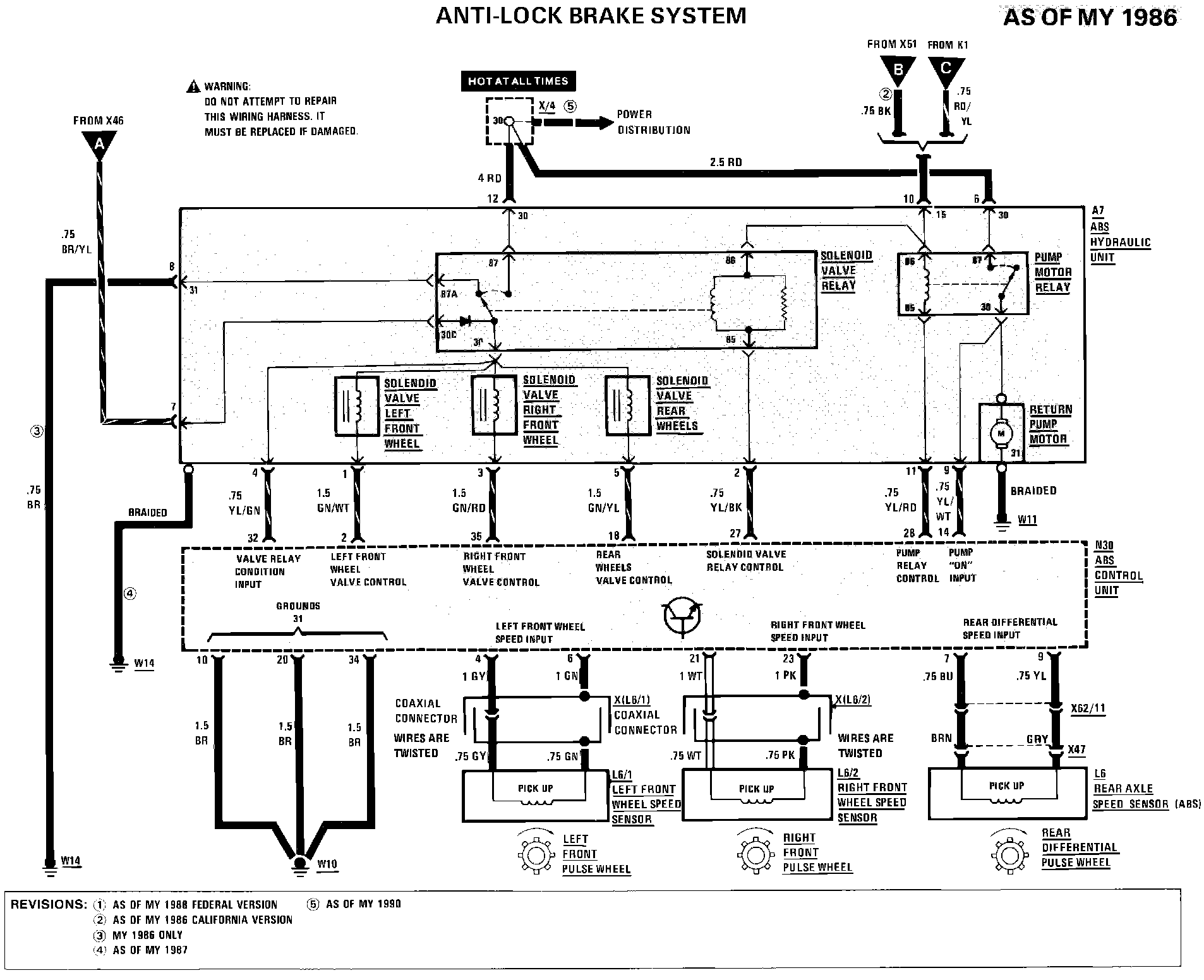

Anti-Lock Brake System (ABS):

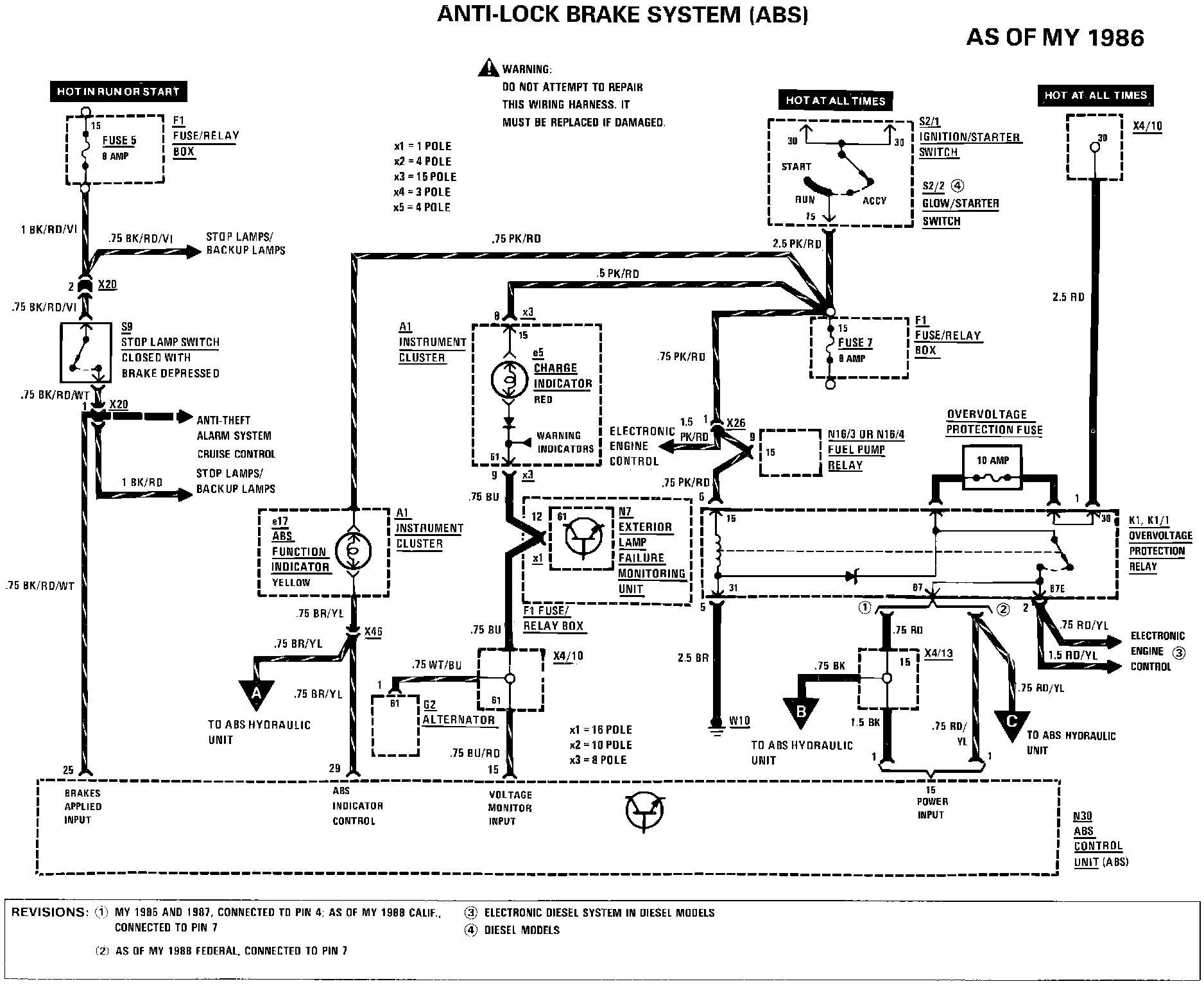

Anti-Lock Brake System (ABS):
