TD Signal Test

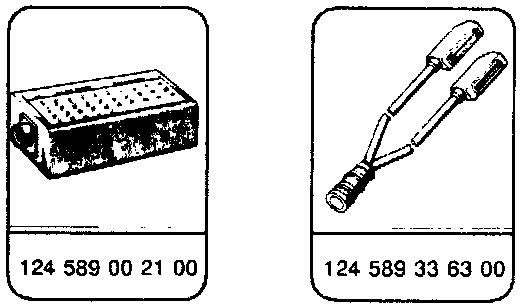

Special Tools





Equipment
^ Digital multimeter - SUN DMM-5. Fluke model 23
- Available through the MBNA Standard Equipment Program

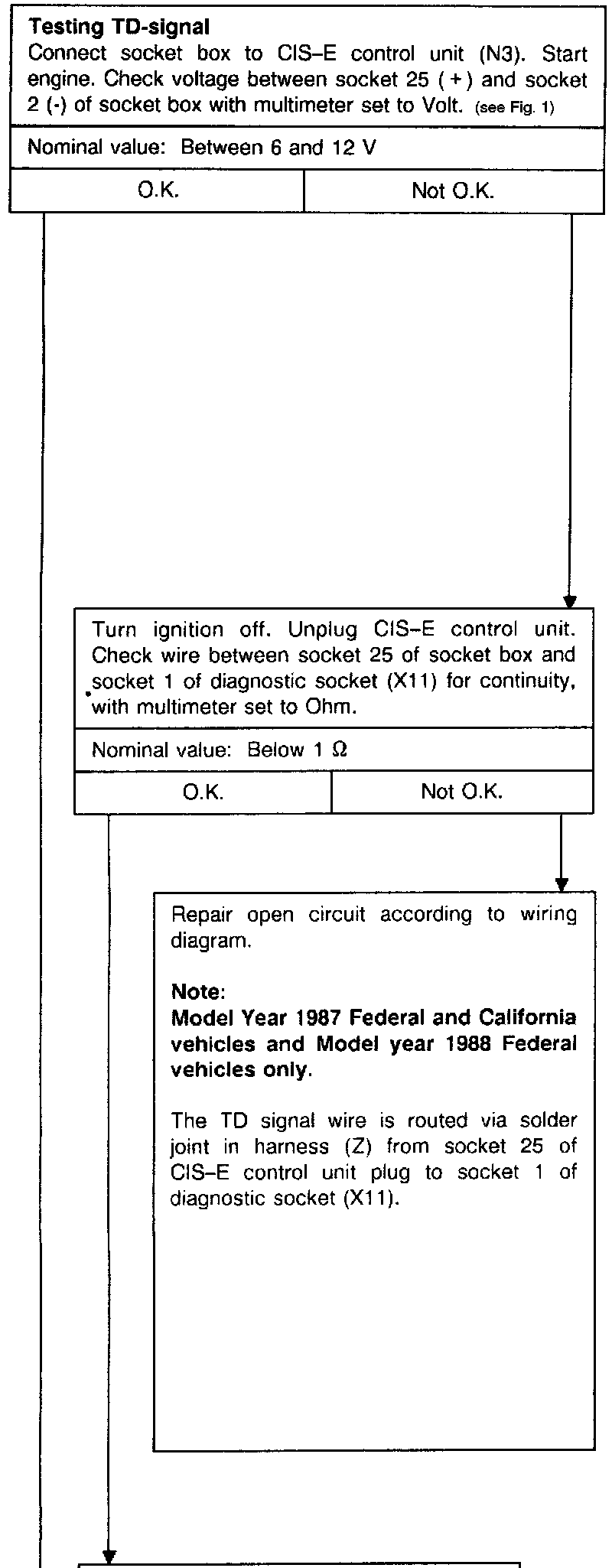

༷Test Procedure:

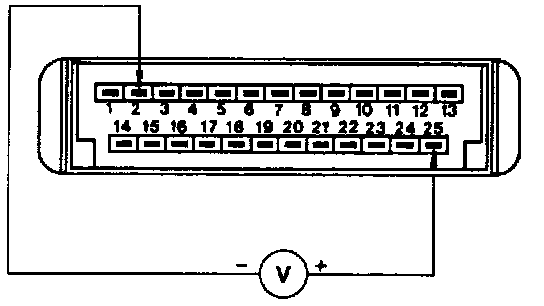

Fig. 1:
