Timing Cover: Service and Repair

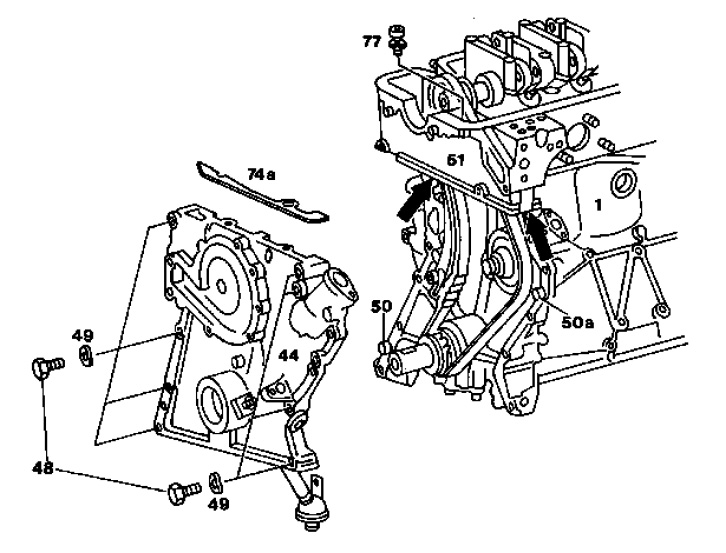

AR01.40-P-8003A Sealing Timing Case Cover







1 Cylinder crankcase
44 Timing case cover
49 Securing bolts
50 Cylinder pin
50a Cylinder pin
51 Cylinder head
74a Gasket part
77 Securing bolts
