Flywheel/Flex Plate to Crankshaft Torque

Flywheel or Flex Plate to Crankshaft
1st Stage 30 Nm (22 ft lbs)
Final Torque 90° Torque Angle

Two-mass Flywheel to Crankshaft
1st Stage 50 Nm (37 ft lbs)
Final Torque 90° Torque Angle

NOTE: Check bolt stretch before reusing bolts.

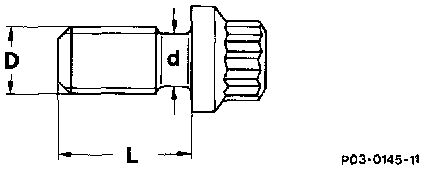

Bolt Dimensions





Flywheel or Flex Plate to Crankshaft
Shank Diameter, d
New 8.3 - 8.5 mm (0.327 - 0.335 in)
Minimum 8.0 mm (0.315 in)
Length, L
New 21.8 - 22.2 mm (0.858 - 0.874 in)
Maximum 22.5 (0.885 in)

Two-mass Flywheel to Crankshaft
Shank Diameter, d
New 8.3 - 8.5 mm (0.327 - 0.335 in)
Minimum 8.1 mm (0.319 in)
Length, L
New 56.8 - 57.2 mm (2.236 - 2.252 in)
