Fuel Pump Relay Test

Test Data
^ Cut-out speed of relay 6,200 +/- 50 rpm

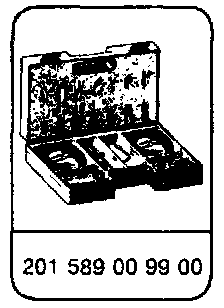

Special Tools




Equipment
Digital multimeter -- SUN DMM-5, Fluke model 23
- Available through the MBNA Standard Equipment Program
^ Digital tester -- SUN EMT-1019/Master3, MCM-2110, MEA -15MB, Bear D.A.C.E. model 40-960, All-Test 3610-MB (for rpm readings only)

Test Condition:
^ Battery voltage at least 11.5 volt.

��Test Procedure:

Fig. 1:

Perform the following test on vehicles with automatic transmission only.

SKTest Procedure:
