Mercedes Benz
>>
1987
>>
190E 2.3 (201.028) L4-2.3L (102.985)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>

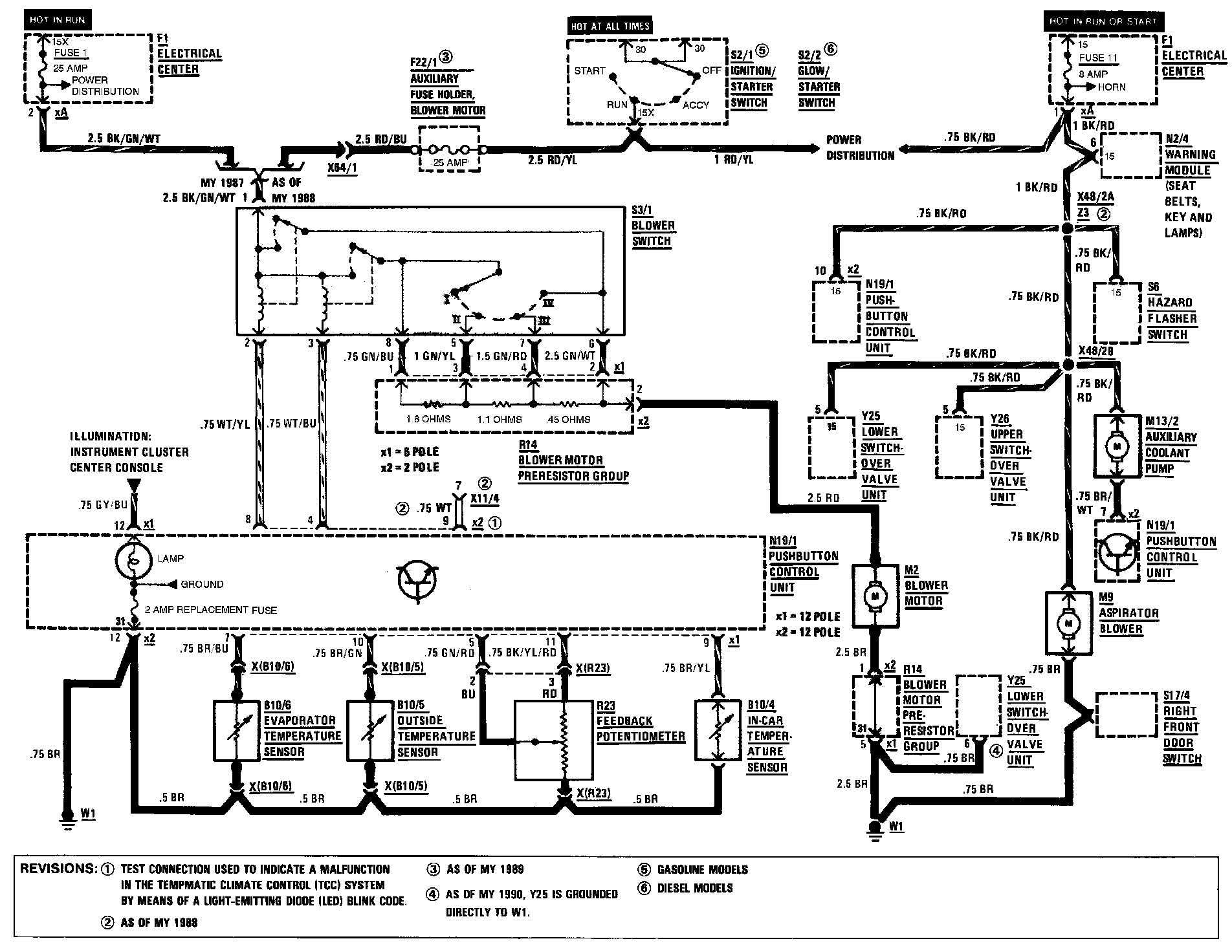

Tempmatic Climate Control Blower Control
Tempmatic Climate Control Blower Control
Tempmatic Climate Control Blower Control:
