C. Vehicles With 2 Auxiliary Fans

Removing







20 Disconnect 2-pole connector (arrow).
21 Remove front bumper.







22 Remove front central bracing (arrow).

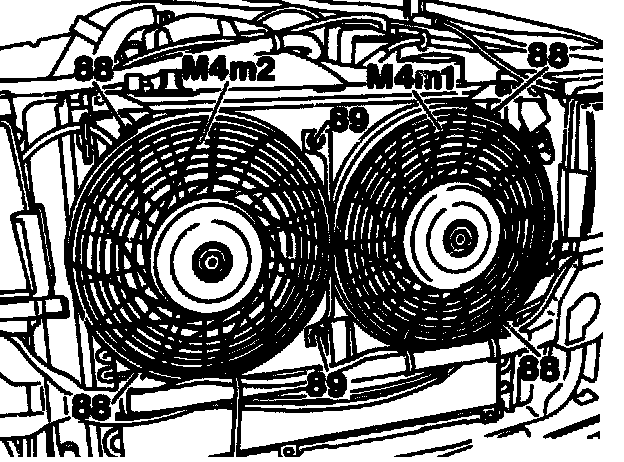

23 Unscrew screws (88 and 89) and take out both auxiliary fans.


Installing
Install in the reverse sequence.

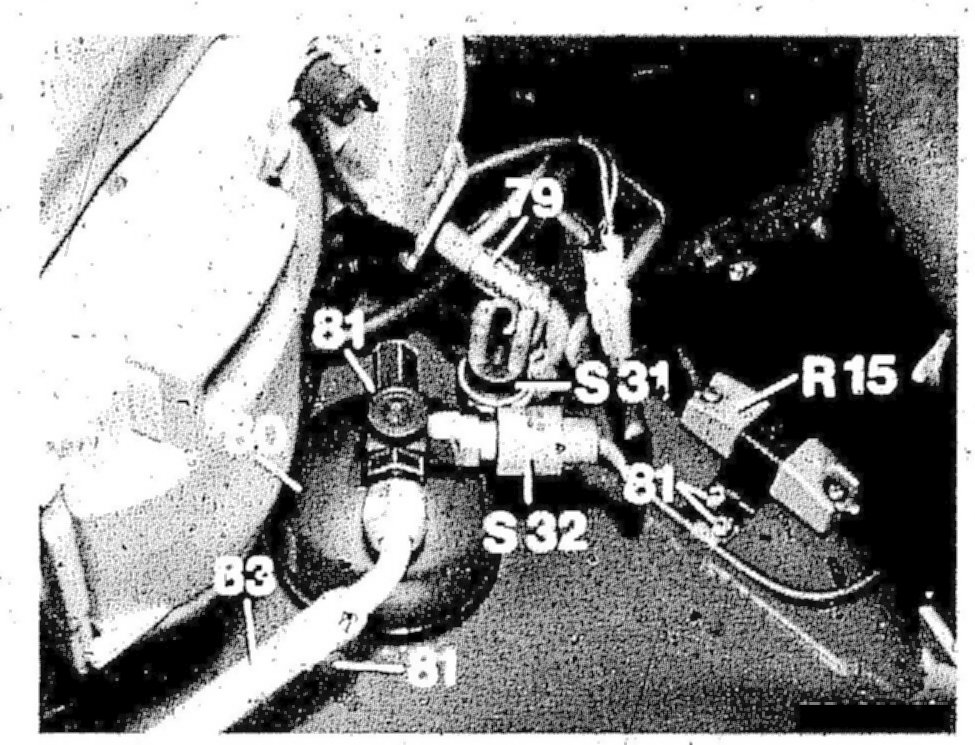

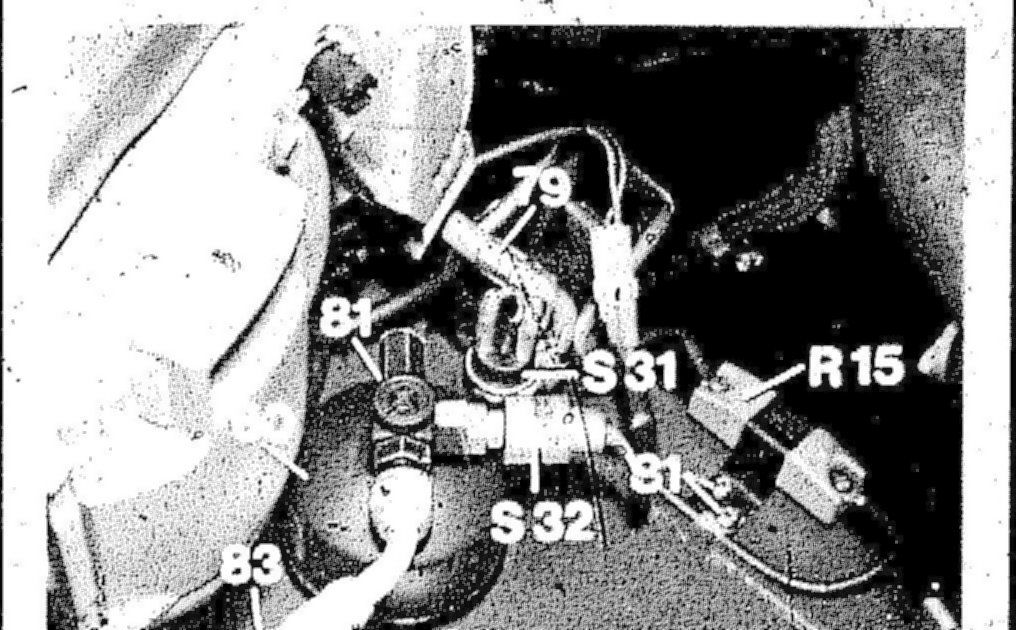

24 Check function of auxiliary fans by switching on ignition and bridging both connections of pressure switch (S32), but do not separate connections of pressure switch and cable harness.

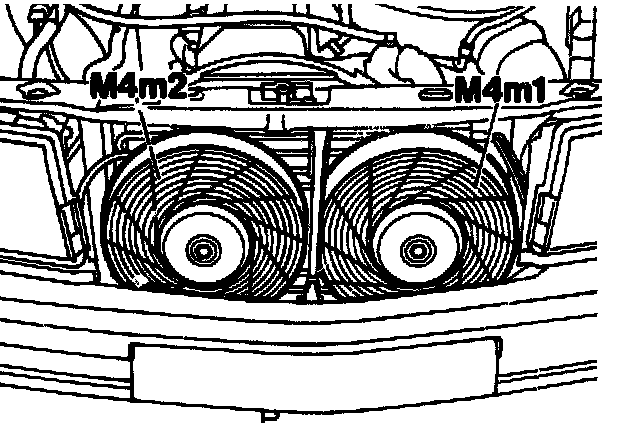

25 Check direction of rotation of auxiliary fan. Fan rotates clockwise. If direction of rotation is wrong, reverse jacks in 2-pole connector (arrow).
