Cover at Fresh Air Inlet

Removal
1 Open engine to 90° position.

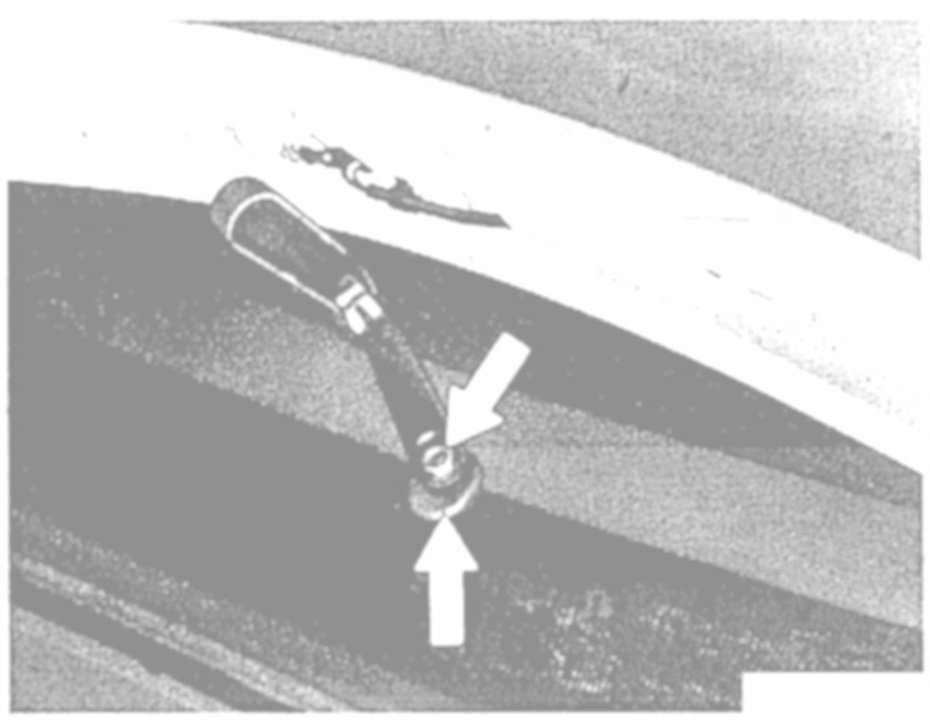

2 Swing cover on wiper arm upwards, unscrew nut underneath and pull off wiper arm (upper arrow).
3 Force round cover from wiper shaft (lower arrow).

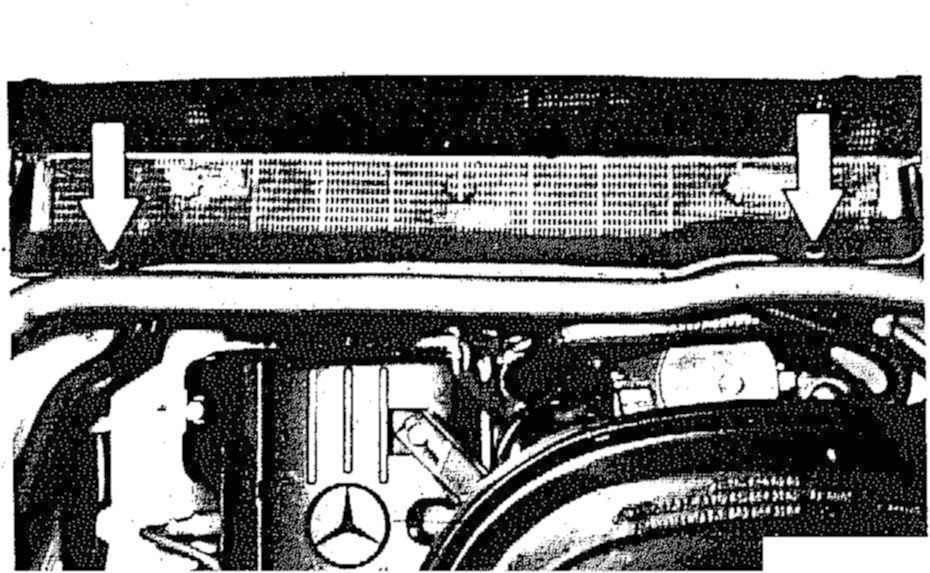

4 Push clips out at parting wall.

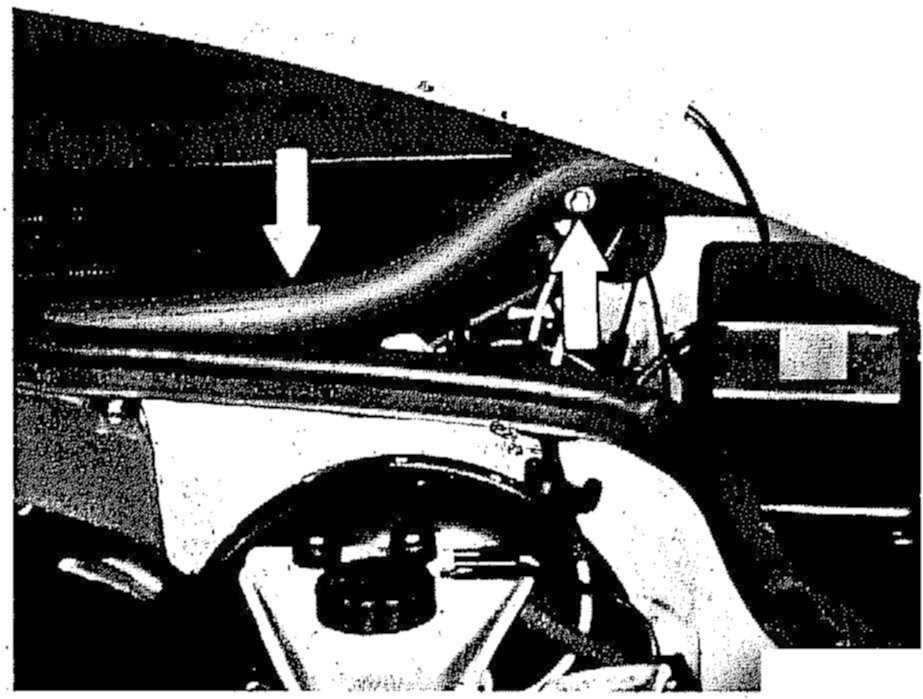

5 Pull rubber seal left and right from cover on air intake and unscrew screws.
6 Pull cover at air inlet out of lower trimstrip on windshield glass and remove.

Installation
7 For installation proceed vice versa.
