With Memory

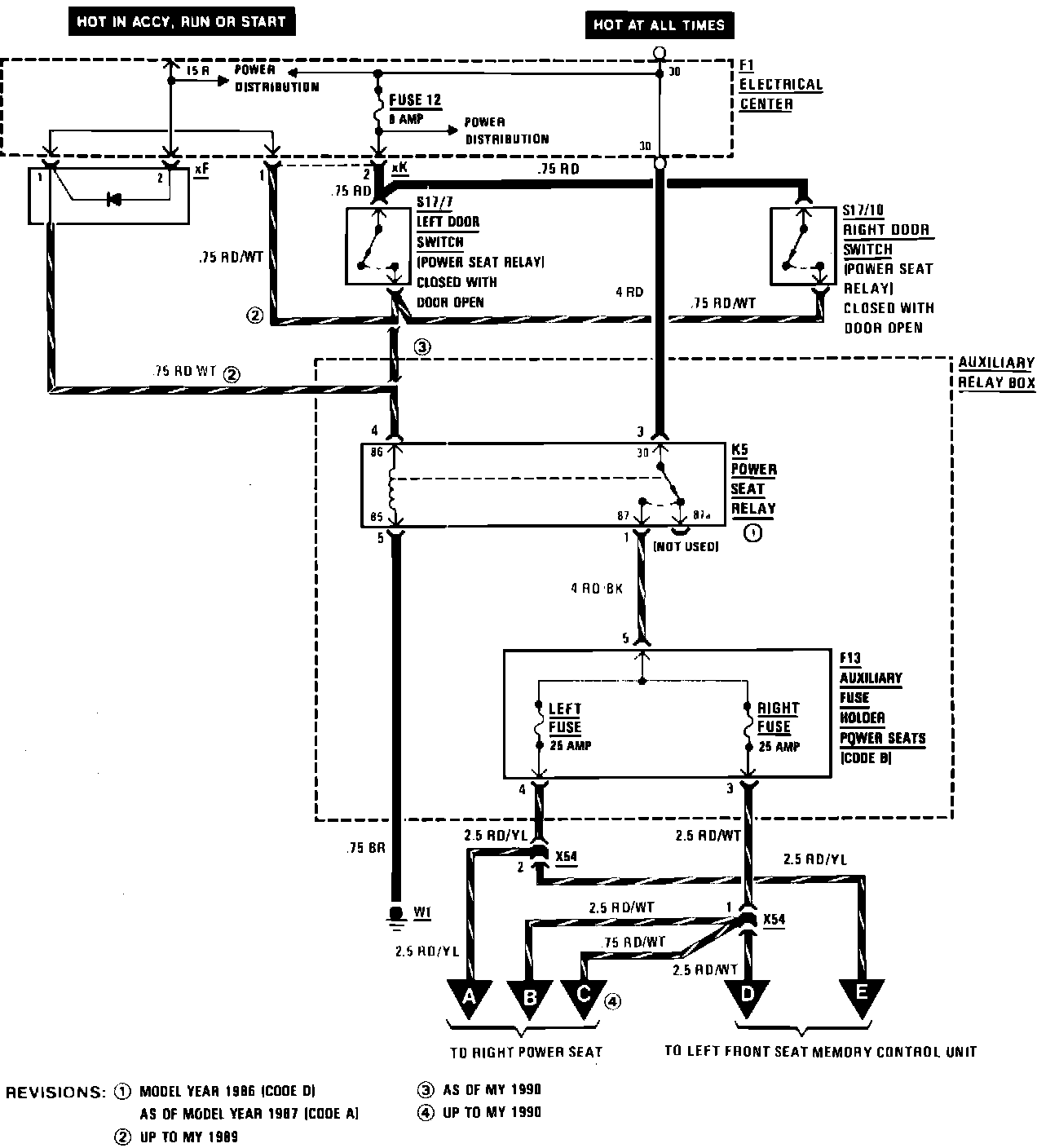

Power Seats (With Memory), Part 1:

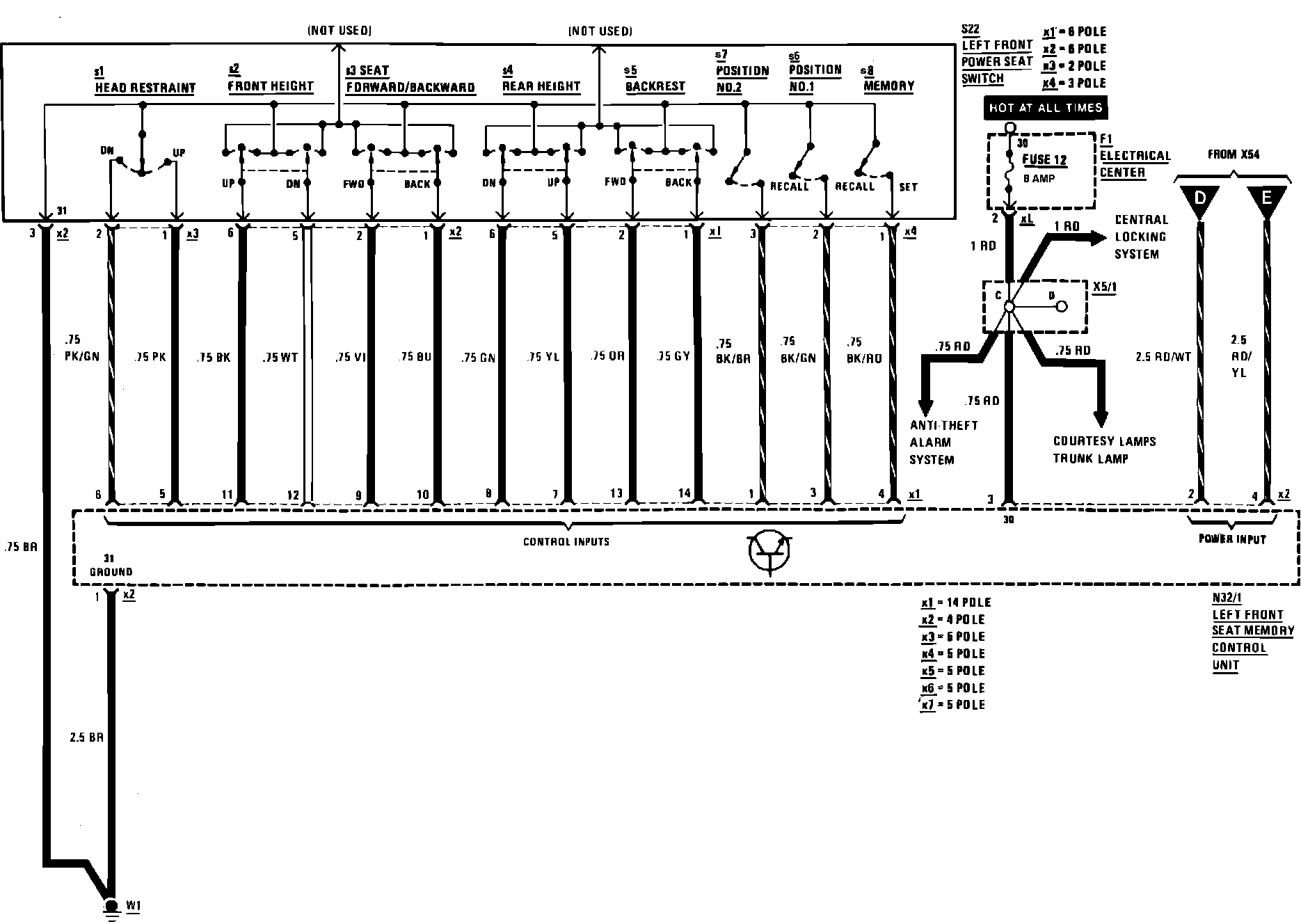

Left Power Seat (With Memory):

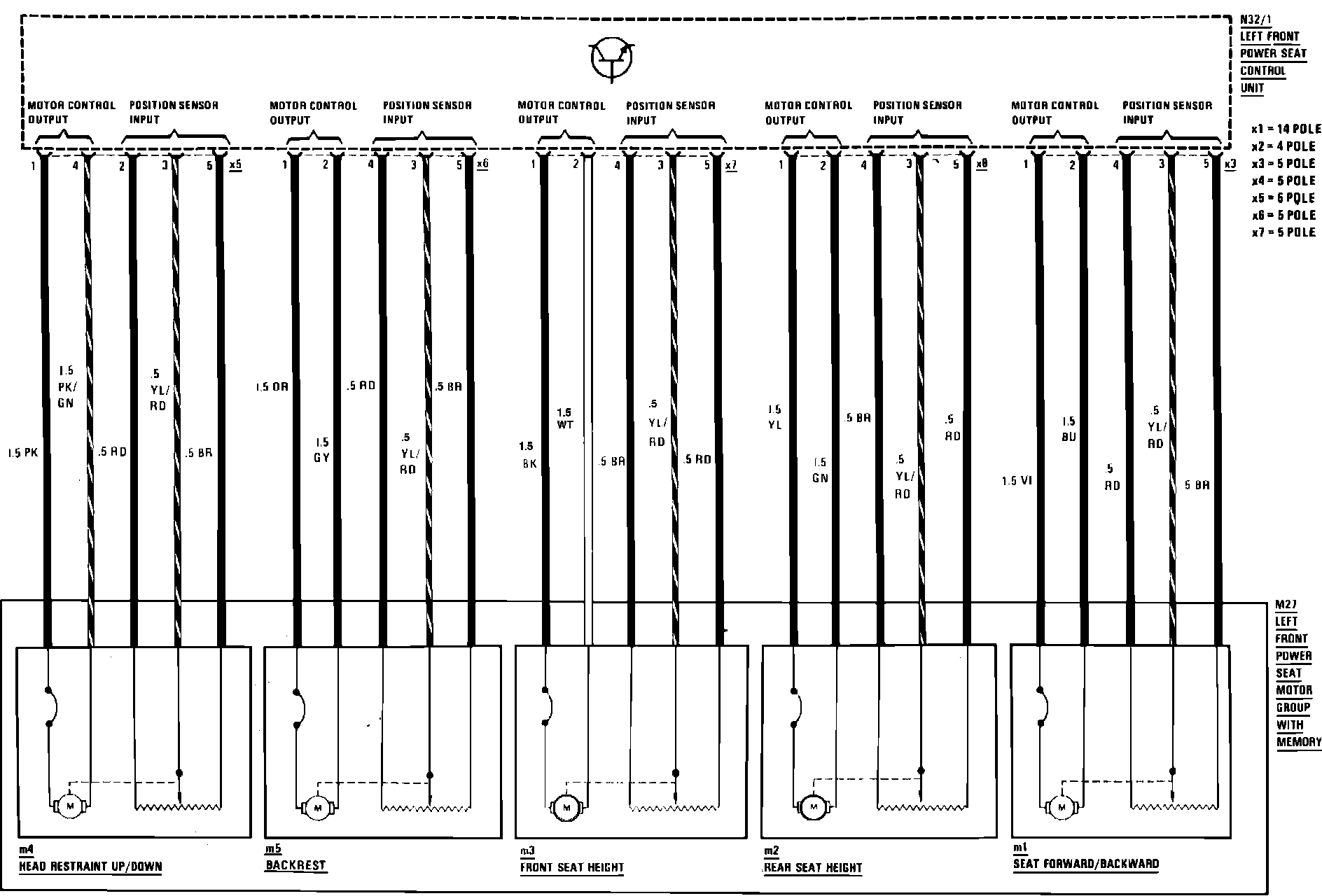

Left Power Seat (With Memory):
