Electronic Engine Control

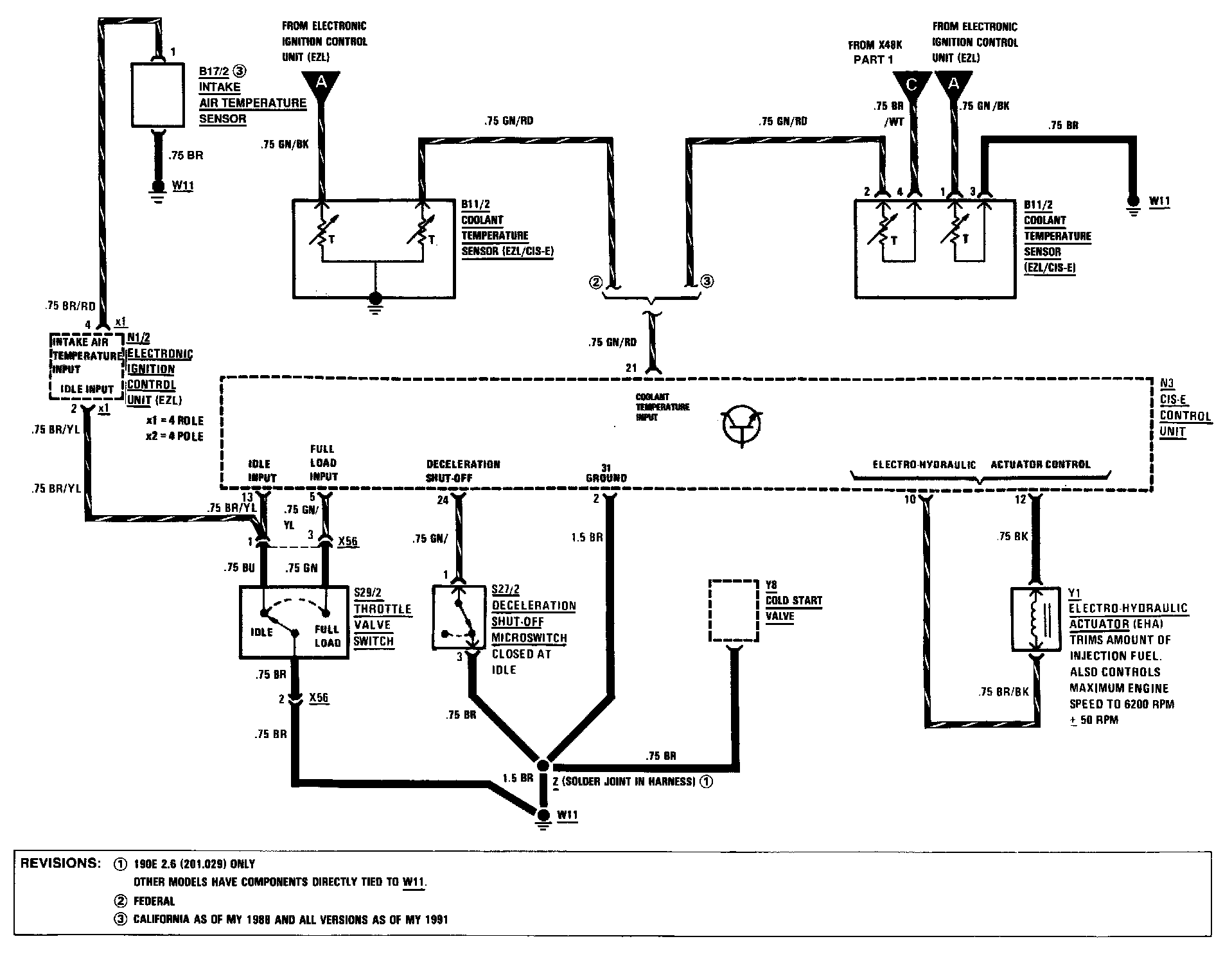

Part 1, Electronic Engine Control:

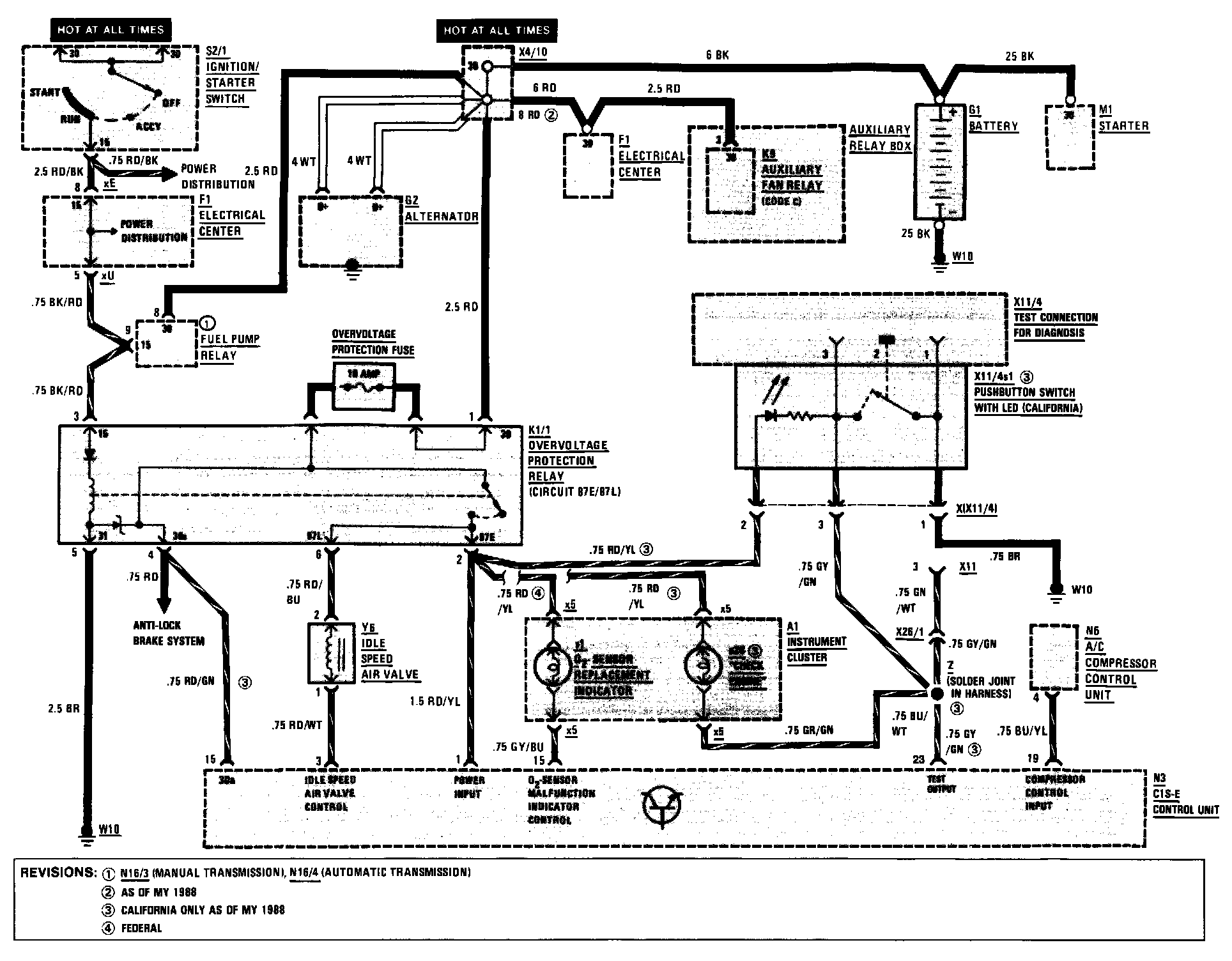

Part 2, Electronic Engine Control:



Part 3, Electronic Engine Control:
