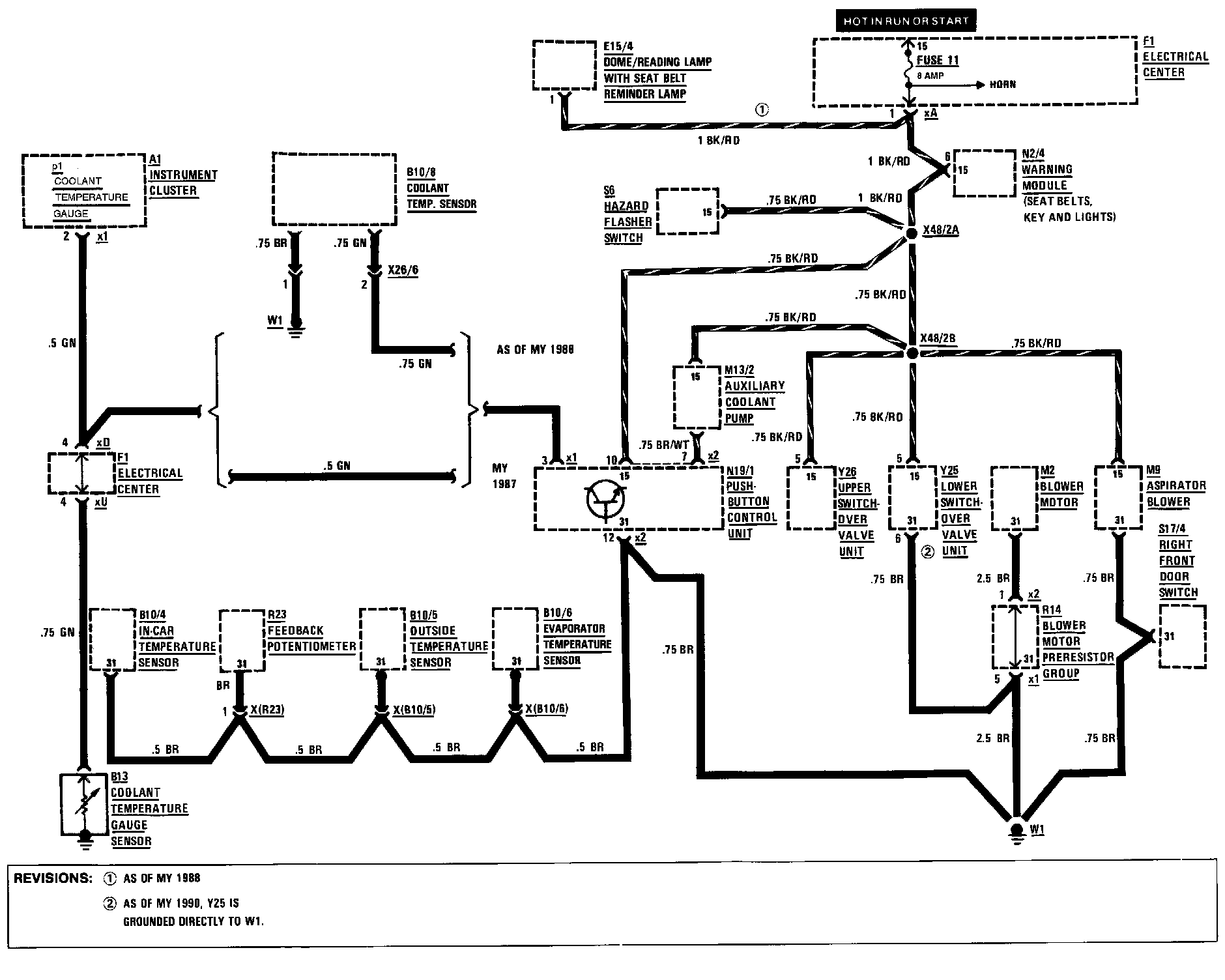

Tempmatic Climate Control Power and Ground Distribution
Tempmatic Climate Control Power and Ground Distribution
Tempmatic Climate Control Power and Ground Distribution:
