Front Bumper: Service and Repair

Front Bumper Removal / Installation

Removal

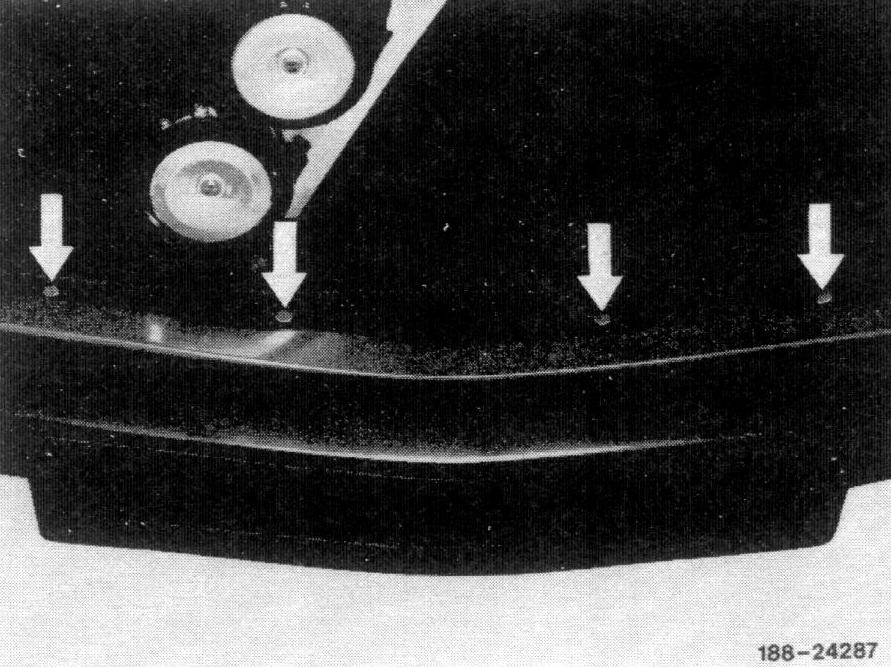

1. Unscrew screw on holder laterally left and right.

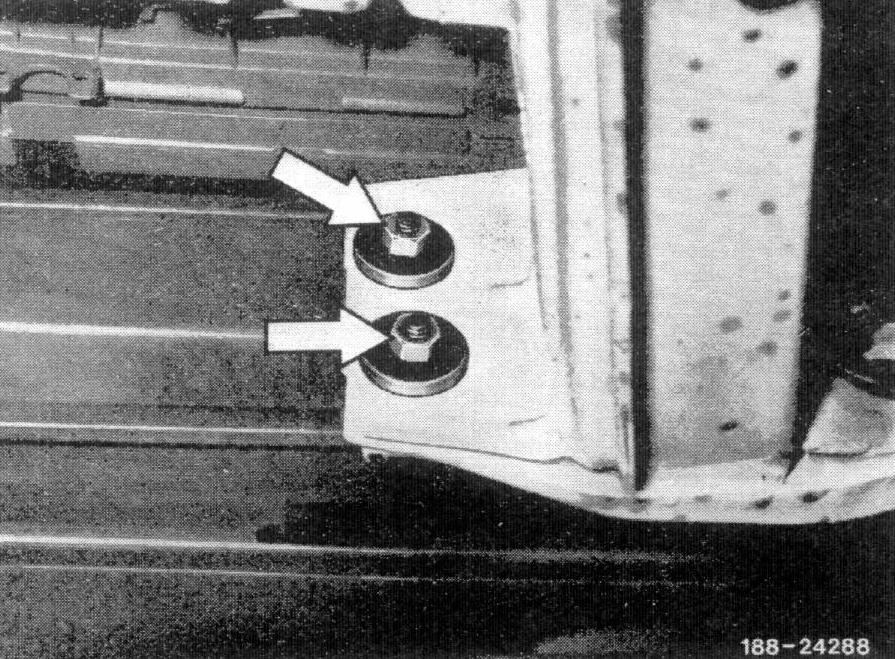

2. Unscrew nuts on side member left and right.

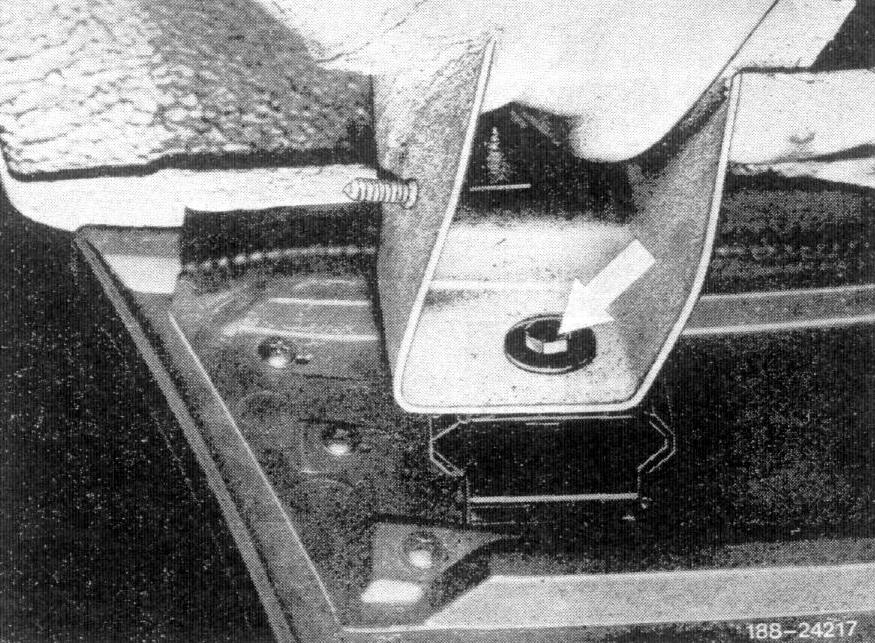

3. Push out clips in range of radiator.
4. Remove bumper in forward direction.

Installation

1. Installation is reverse of removal.
