Glow Plug: Service and Repair

REMOVAL





1 Remove, reinstall complete air cleaner housing.

2 Unscrew nuts from glow plugs.

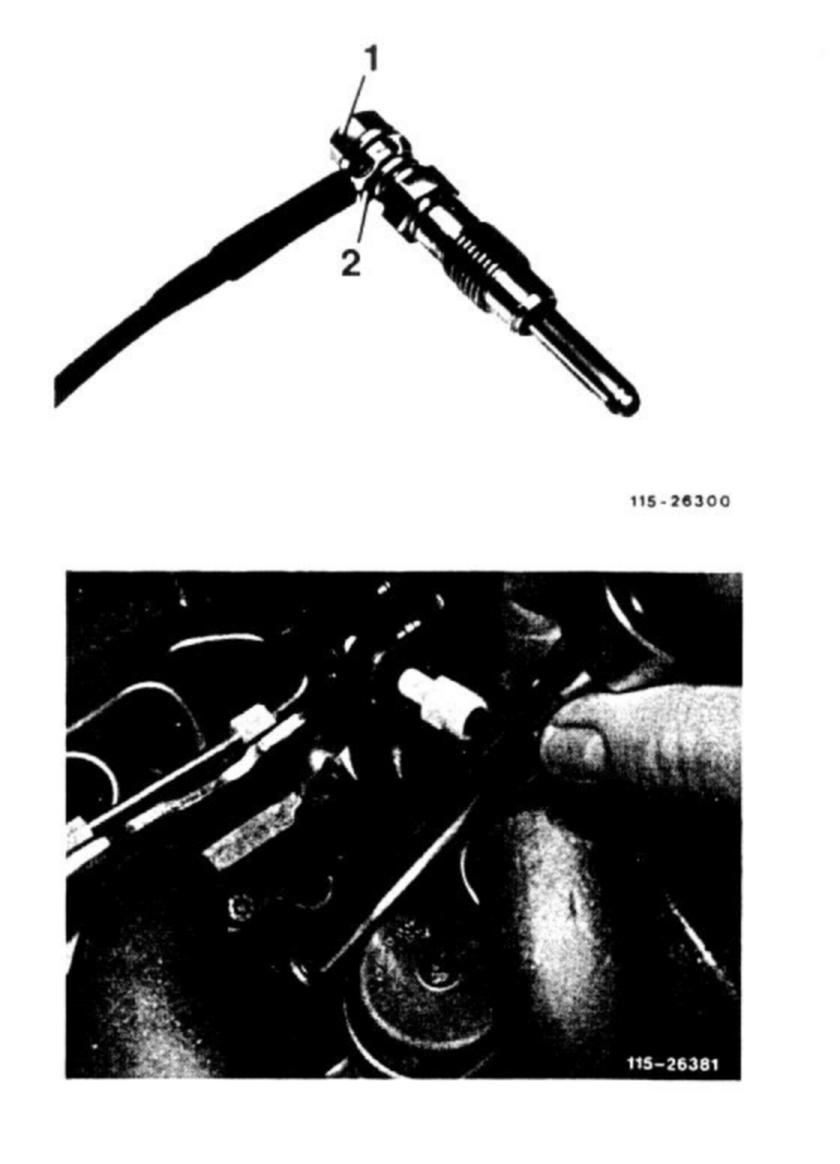

The nuts (1) cannot be lost as they have been inserted in the terminals (2) of the wiring harness.

3 Unscrew glow plugs.

INSTALLATION

4 Installation occurs in reverse order.

TORQUE SPECS

Electrical line on glow plugs connect, tightening torque 4 Nm.

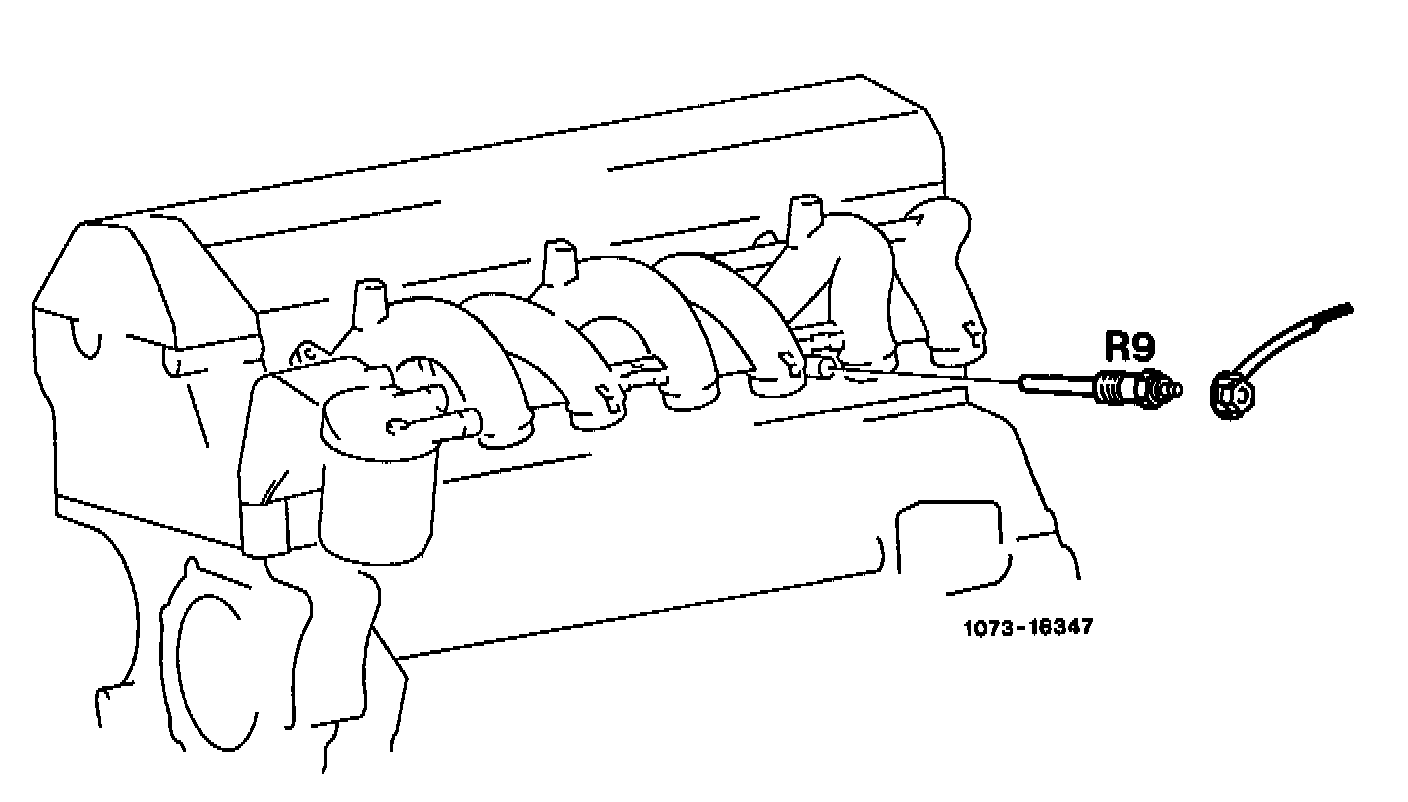

Glow plugs (R9) tightening torque 20 + 2 Nm. Observe distinguishing features pencil-type glow plugs.

DISTINGUISHING FEATURES PENCIL-TYPE GLOW PLUGS
