Body and Frame - Modification to Celette Fixture

87mercedes03

TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS

DATE: March 1987 REF. NO. 58/54


SUBJECT: MODIFICATION TO CELETTE STRAIGHTENING SET ENS 166 MODEL 107

FIGURE 1:

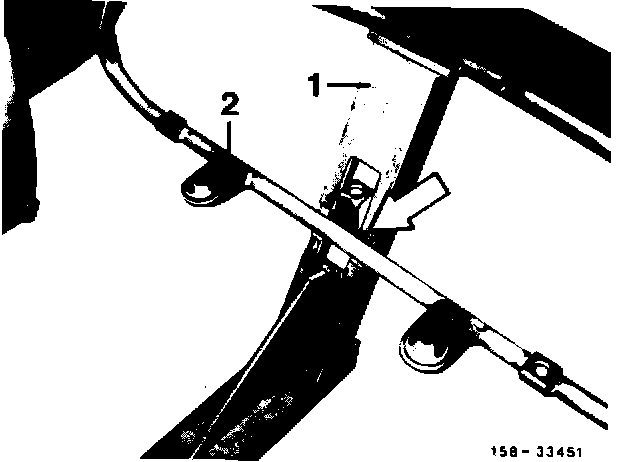

As of Model Year 1986 a cross member, for supporting the radiator was installed on model 107 (2, Figure 1).

FIGURE 2:

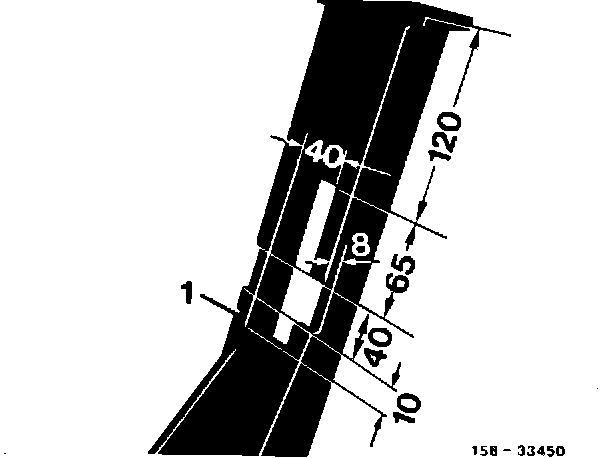

In case of repairs using the straightening set ENS 166, the angular support of the cross member must be modified as per Figure 2.

Modification tolerances for the repair fixture mist remain within +/- 1 mm, therefore it is required that this modification be done by a reputable machine shop.
