Cruise Control Actuator - Revised Replacement Procedure

85mercedes03
TO: OUR MERCEDES-BENZ PASSENGER CAR DEALERS


DATE: September 1985 (Supersedes 54/34, July 1985) REF. NO.. 54/34a

SUBJECT: REVISED PROCEDURE FOR REPLACING THE CRUISE CONTROL ACTUATOR MODEL 201.122


NOTE: This Service Information contains a new part number for the Actuator. Please destroy your copy of 54/34, July 1985.

Arrow = Actuator:

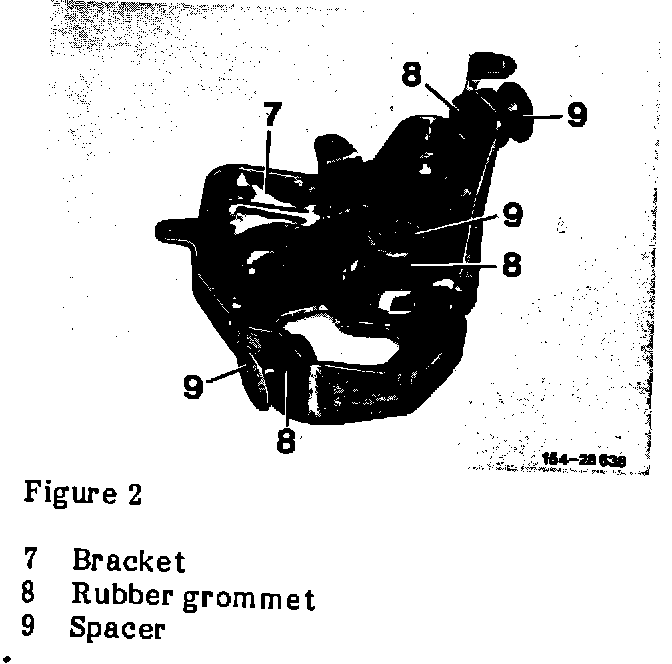

Bracket:

Whenever the actuator (arrow, Figure 1) is replaced on model 201.122, new rubber grommets (8, Figure 2) must be installed in the bracket (7, Figure 2).

Reinstall the existing spacers (9) as shown in Figure 2.
The repair instructions, job no. 54-541 (part B), on microfiche no. 2078 01 will be changed accordingly.
Parts Information


Qty. Part Name Part Number

1 Actuator 002 545 86 32
3 Rubber grommet 616 997 00 81


Time Allowance

54-0685 42 Cruise Control Actuator (with Rubber Grommets), Replace 0.8 hour
(After Testing)
