Ignition System

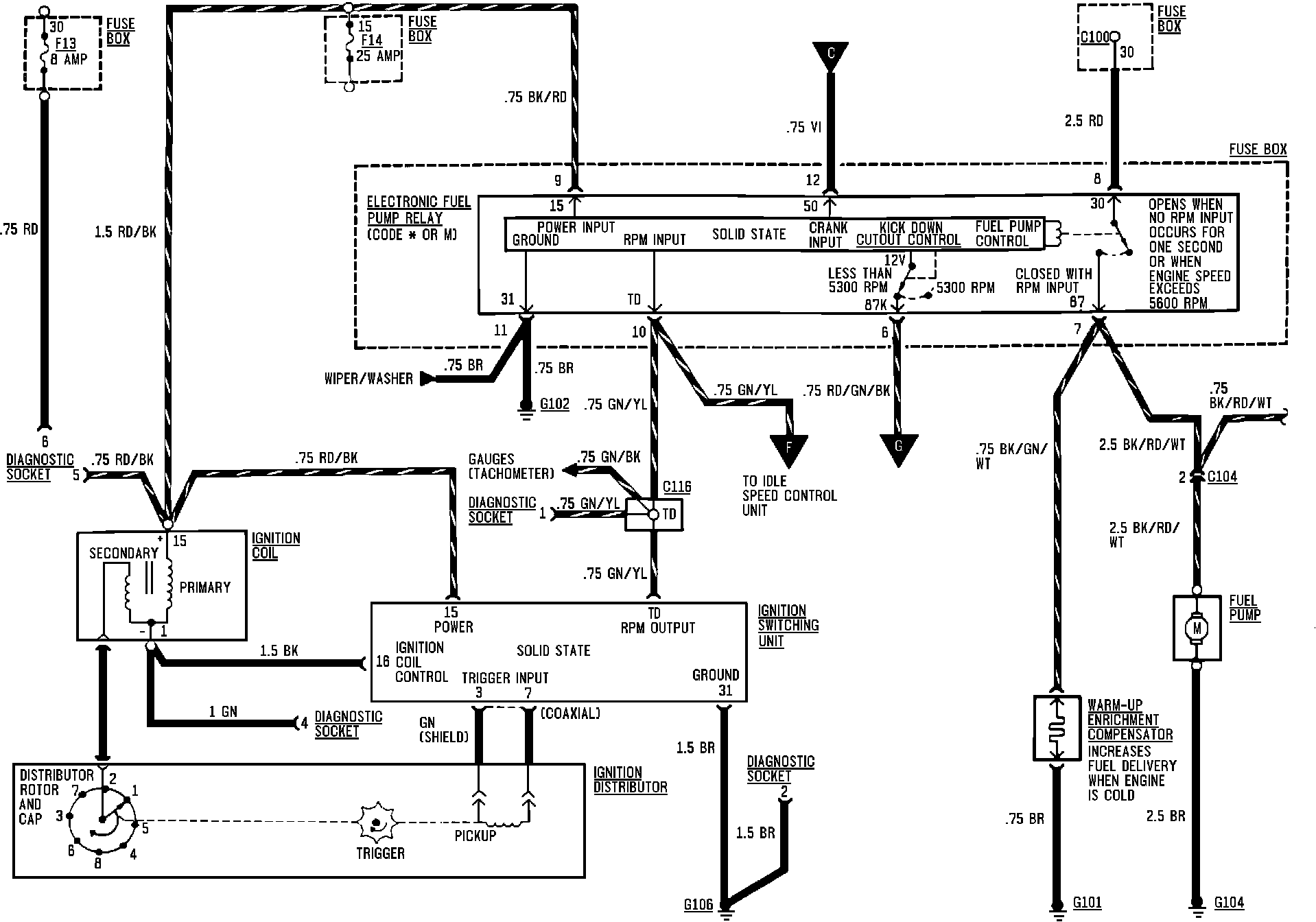

Fig. 50 Ignition System Wiring Diagram:
Fig. 115 Fuel Delivery, Ignition System Wiring:
