190D 2.2 (201.122) L4-2.2L DSL (601.921)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

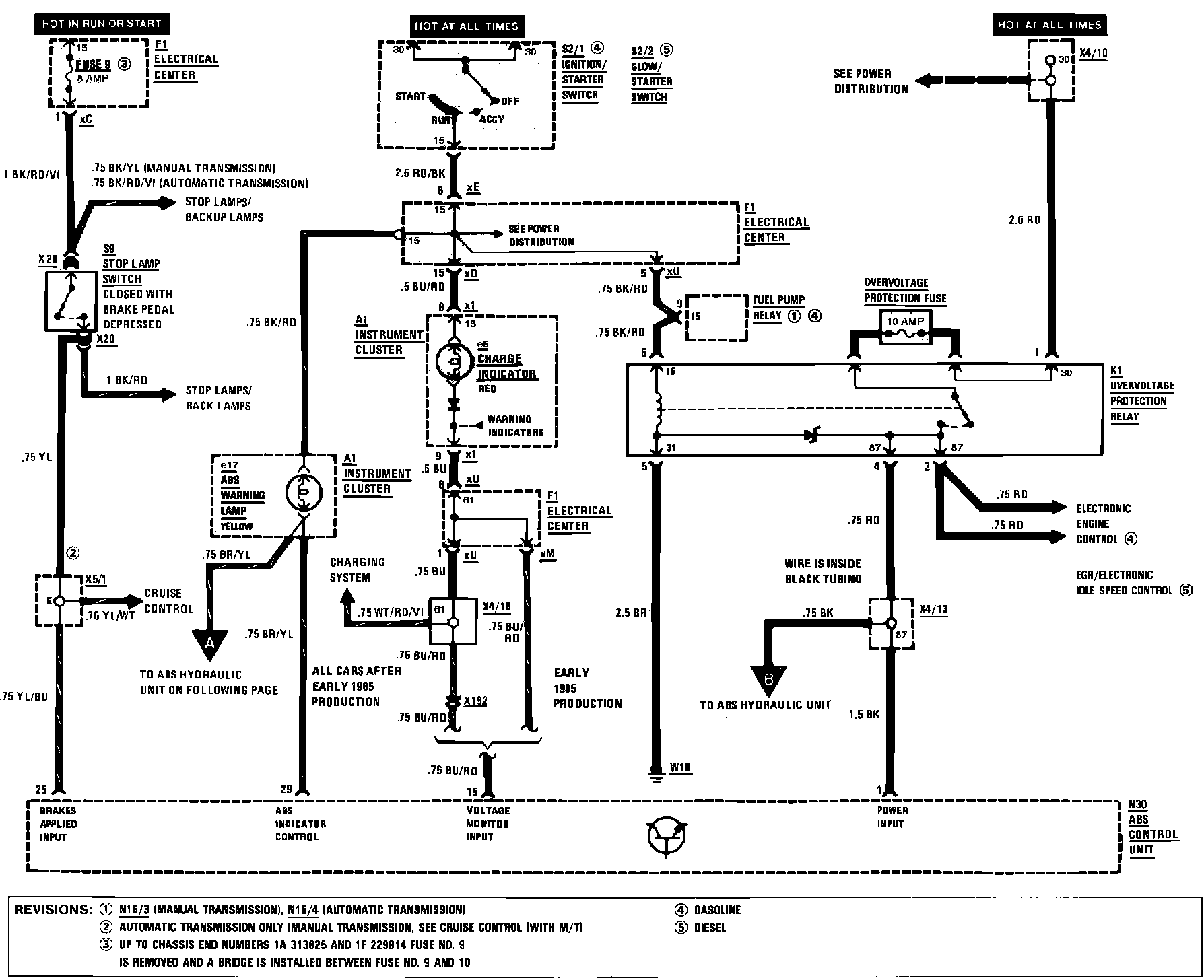

System Diagram
System Diagram
Anti-Lock Brake System:
Part 2:
