Front Cable

Removal and installation of front brake control cable

Preceding work:
Remove center console
Remove, install exhaust heat shield.

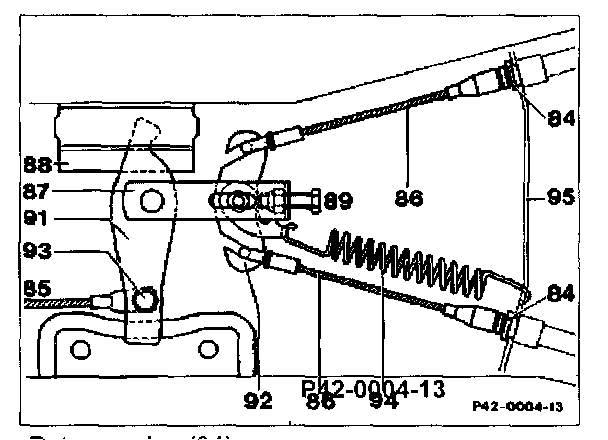

- Unhook return spring (94) on cable swivel (92).
- Screw out bolts (93), remove brake control cable (85).

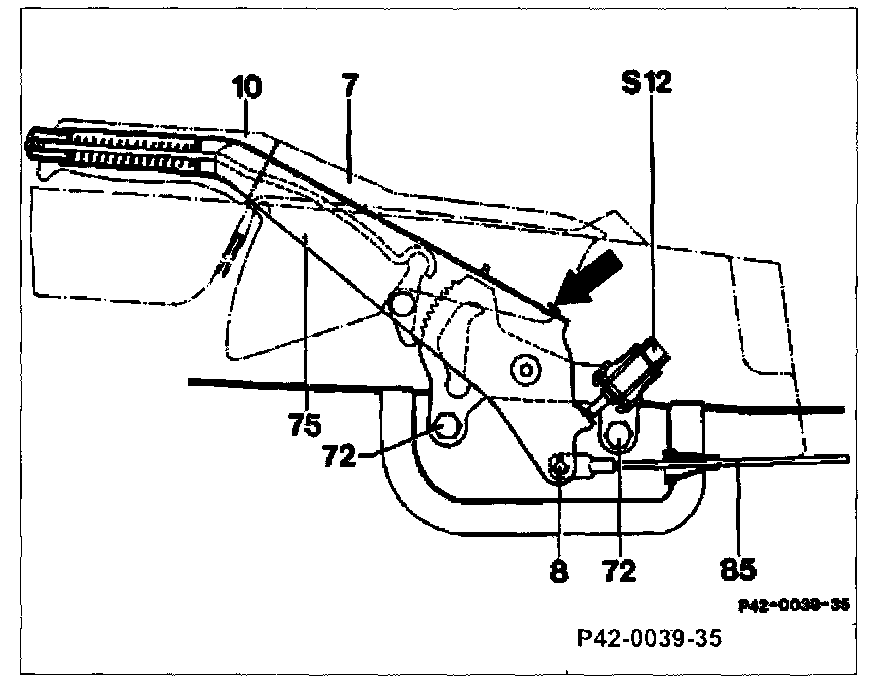

- Remove collar pin (8) and remove brake cable (85) together with grommet (16). When installing assure that collar pin (8) is secure carefully with cotter pin.
- Adjust parking brake affer repair. Adjustments
